DeskPi 10-inch 1U Quad Cooling Fan Panel (DR-0007)

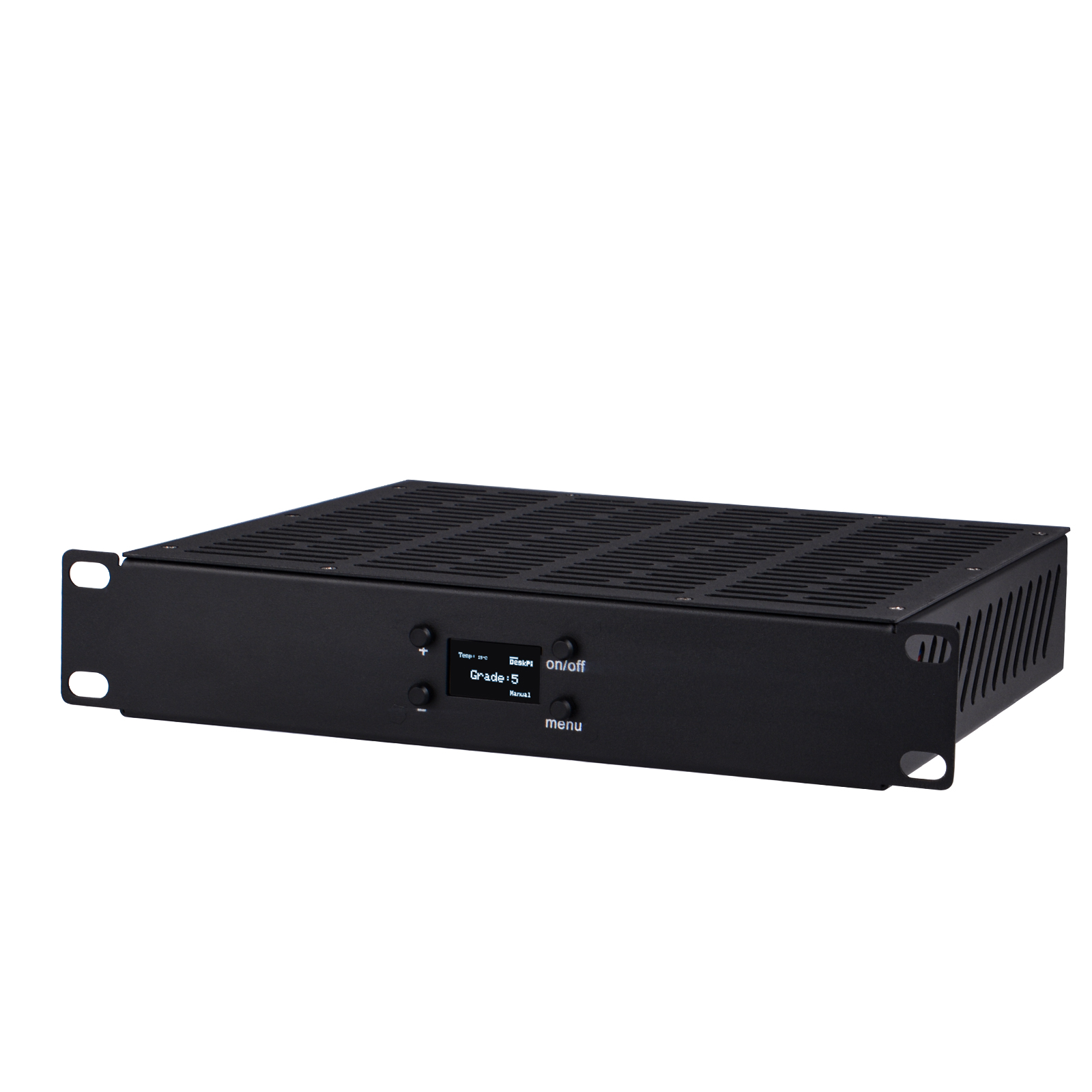

DR-0007 1U Quad Fan Panel Overview

SKUDR-0007
Height / Form Factor1U · 10-Inch Rack Mount
Cooling Units4× High-Velocity Cooling Fans
Thermal ManagementDigital Display · NTC Sensor · Auto/Manual PWM

🛒 Buy 1U Quad Cooling Fan Panel on Official Store →

Description​

The DeskPi 10-inch 1U Quad Fan Cooling Panel (DR-0007) is an active thermal management module engineered for compact 10-inch server racks and enclosures, such as the DeskPi RackMate T1 and RackMate T0.

Occupying only a single vertical rack unit (1U), it integrates four high-velocity cooling fans alongside an intelligent temperature-sensing circuit and real-time digital front LED display. It provides powerful targeted horizontal exhaust while conserving vertical rack space for compute and storage nodes.

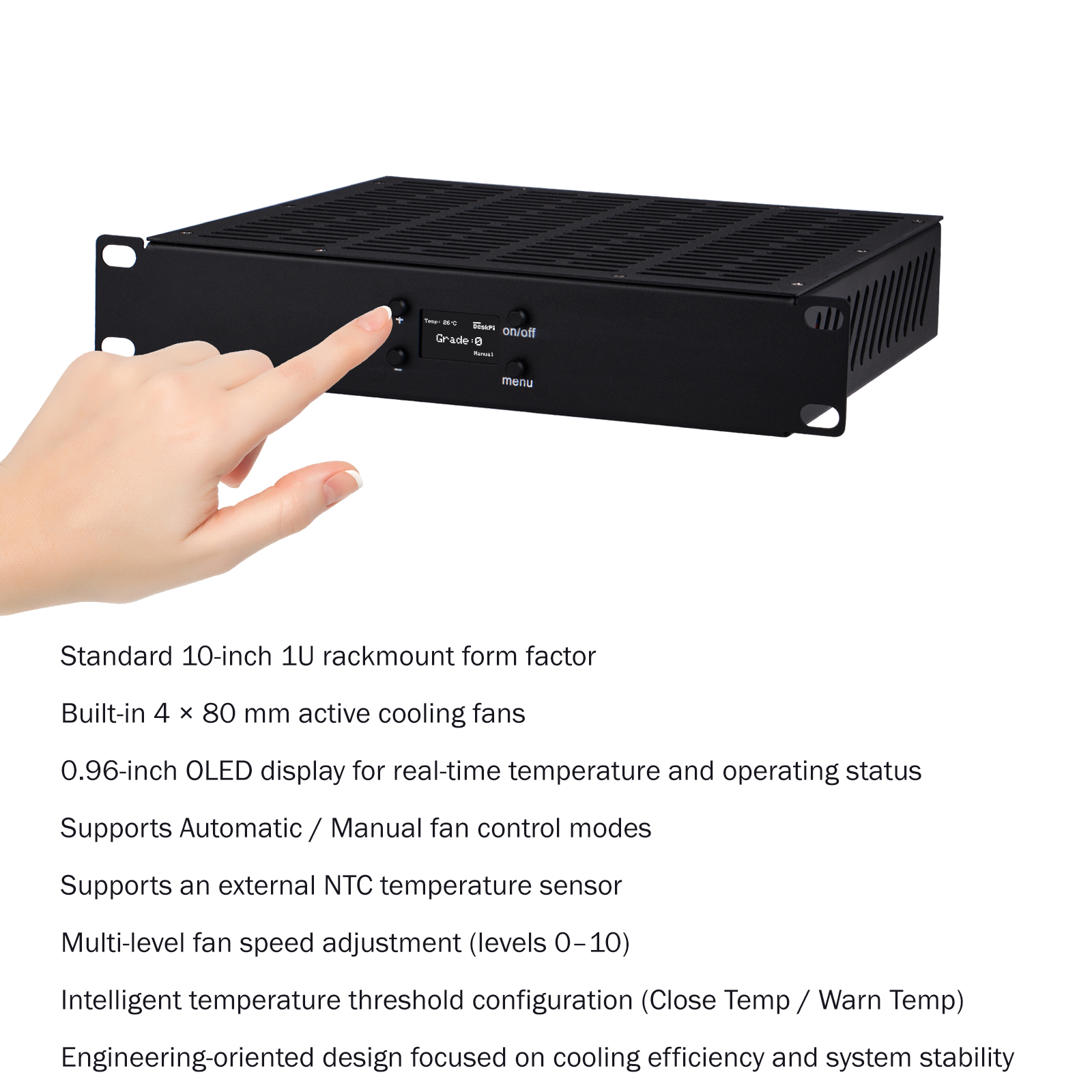

DR-0007 Features Overview

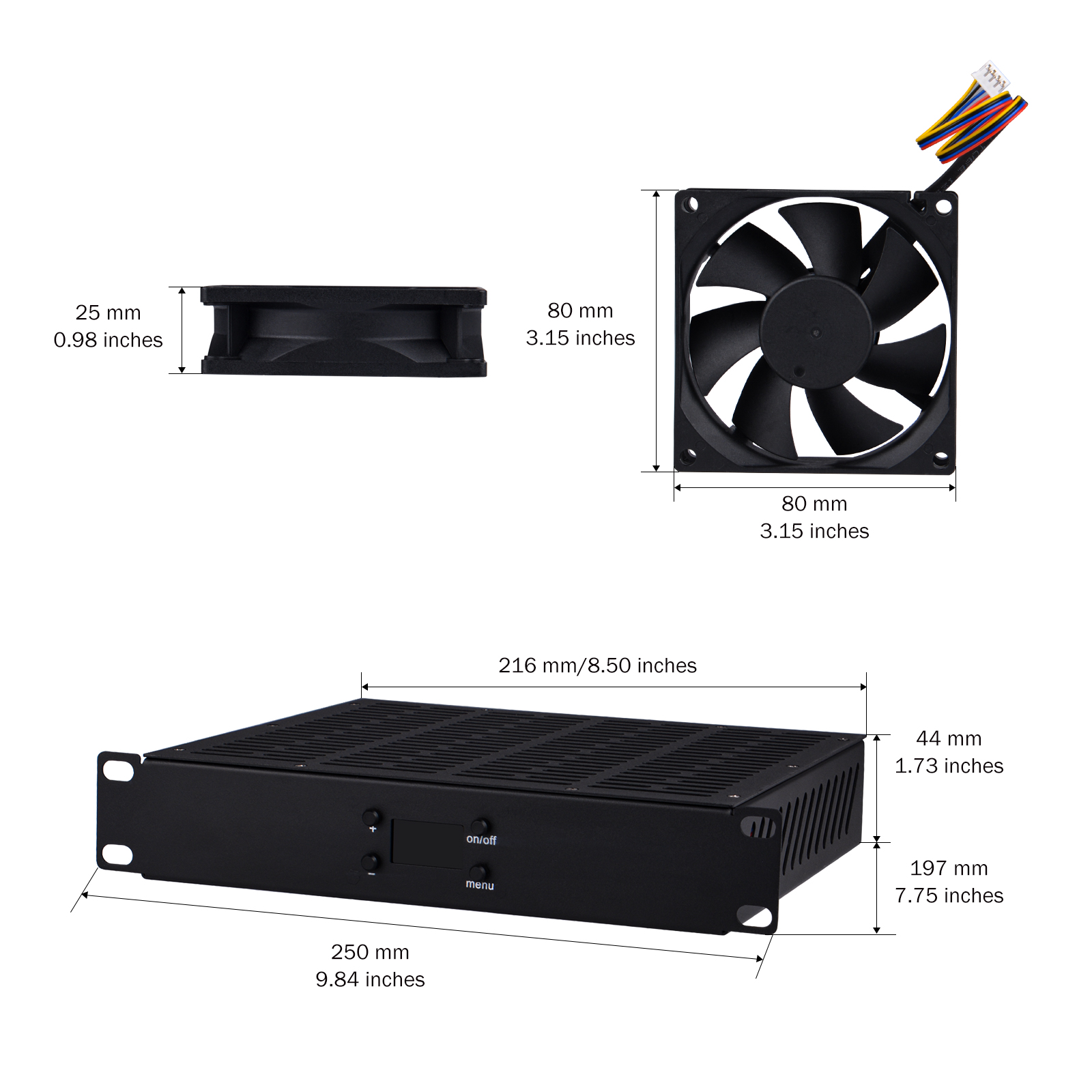

DR-0007 Physical Dimensions

Key Features​

  • High-Density 1U Form Factor: Delivers 4-fan forced-air exhaust within a compact 1U height profile.
  • Dual Operating Modes: Easily toggle between Automatic Mode (intelligent NTC temperature curve) and Manual Mode (stepped fan speed presets).
  • Front-Facing Digital Display: Real-time LED temperature readout and alarm status monitoring.
  • Programmable Alarm Thresholds: Configure minimum turn-off threshold (Close Temp) and over-temperature alert speed (Warn Temp).
  • Standard 10-Inch Compatibility: Mounts directly onto standard 10-inch rails across the RackMate series.

Technical Specifications​

SpecificationDetails
Model SKUDR-0007
Form Factor10-Inch Server Rack Mount (1U Height)
Operating VoltageDC 12V (via DC barrel power connector)
Fan Configuration4× High-Speed Low-Profile Axial Cooling Fans
Thermal SensorExternal NTC Temperature Probe (0 °C to 100 °C sampling)
Control LogicMicrocontroller-driven PWM curve with auto-cutoff
Chassis MaterialSPCC Cold-Rolled Carbon Steel · Matte Black Coat
Cabinet CompatibilityDeskPi RackMate T0, RackMate T1, and universal 10" cabinets

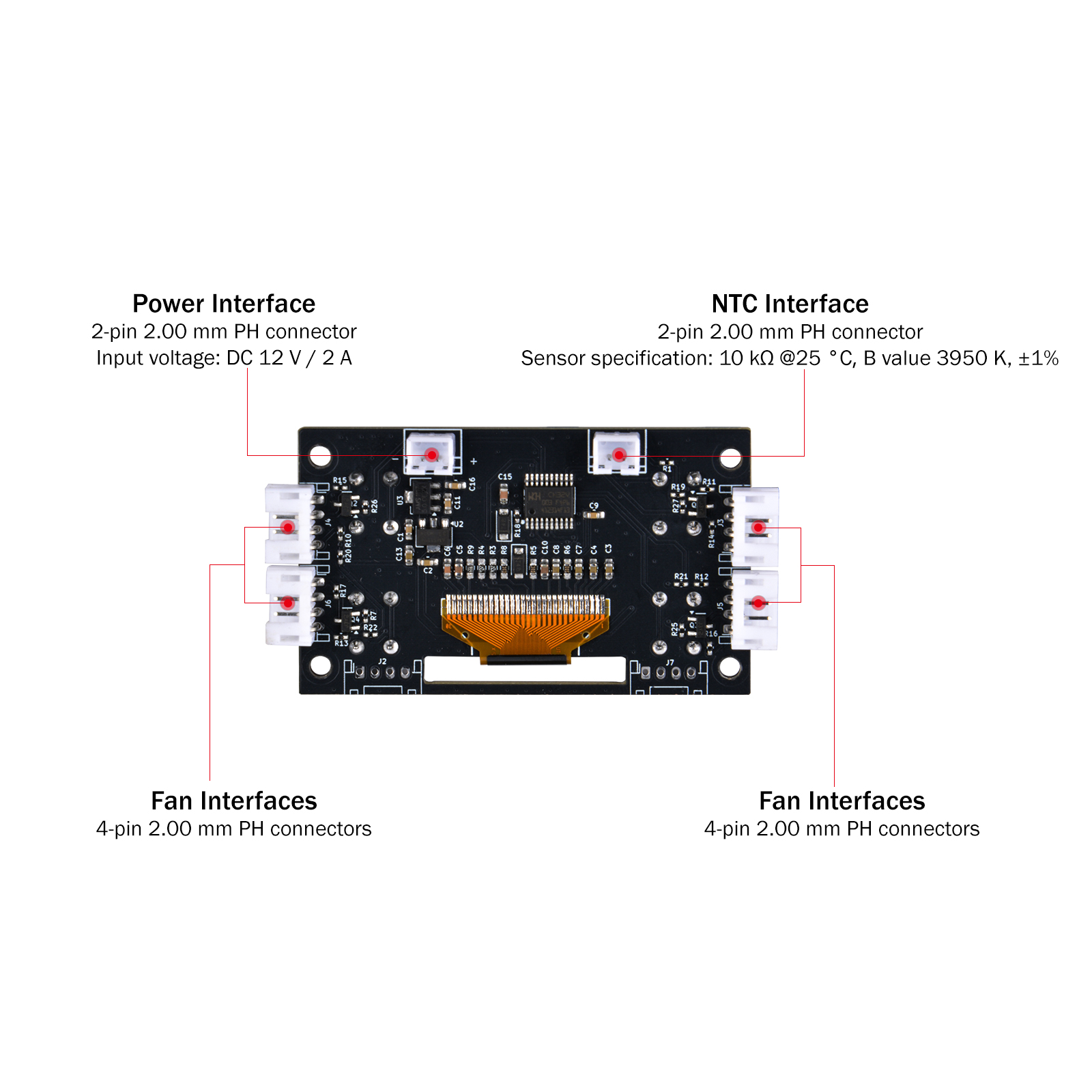

Power & Sensor Terminals

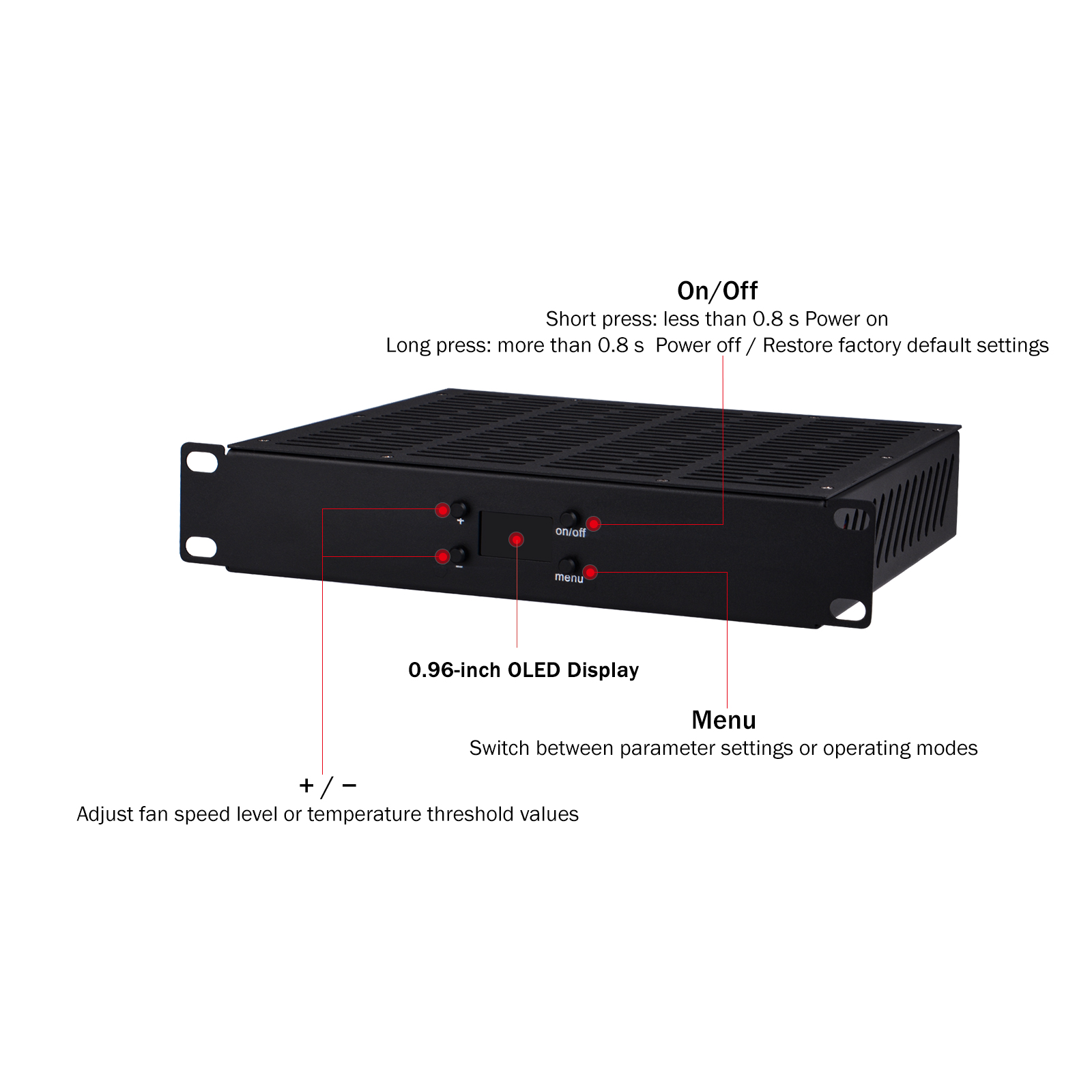

Front Button Controls

Connectors & Sensor Wiring​

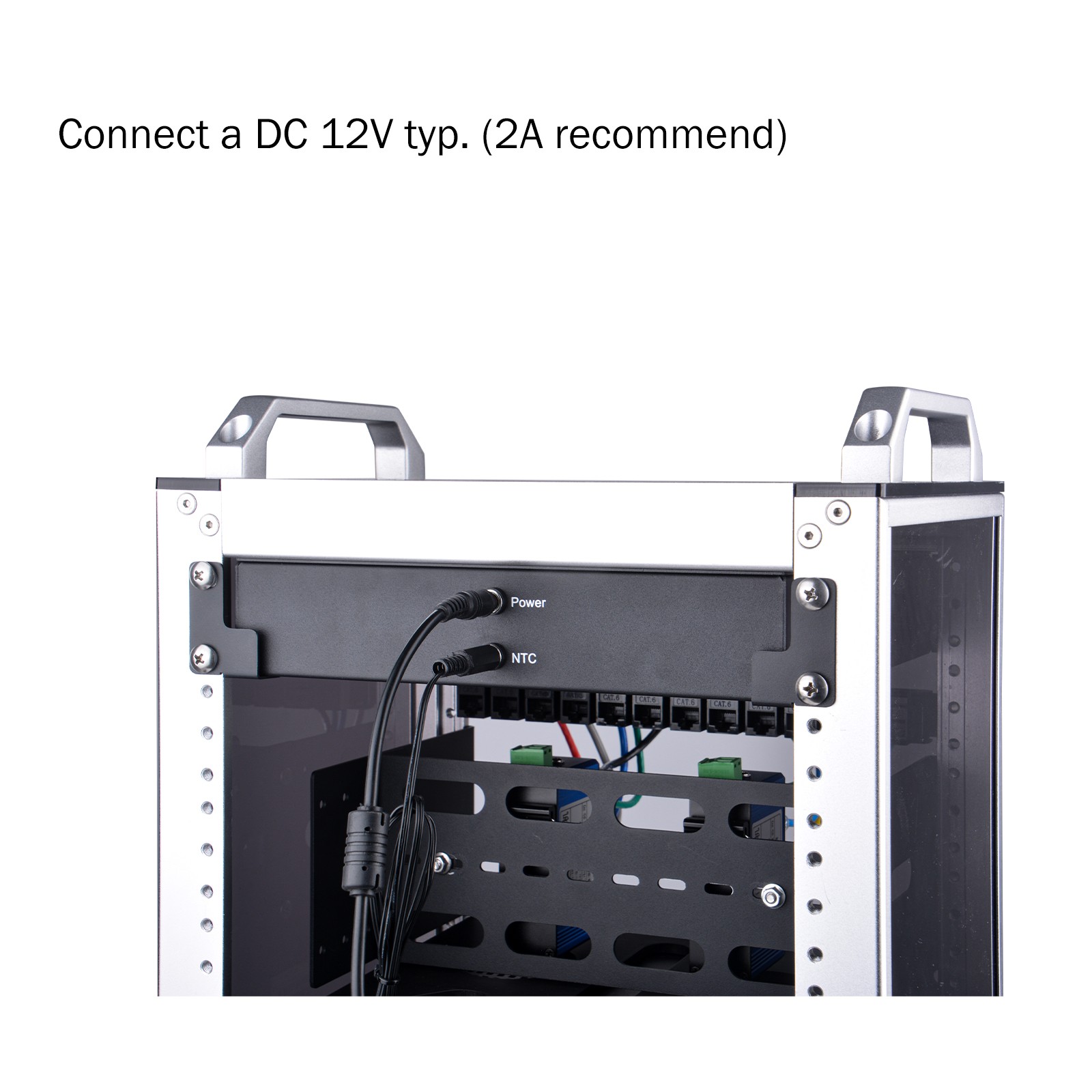

DC Power Connection

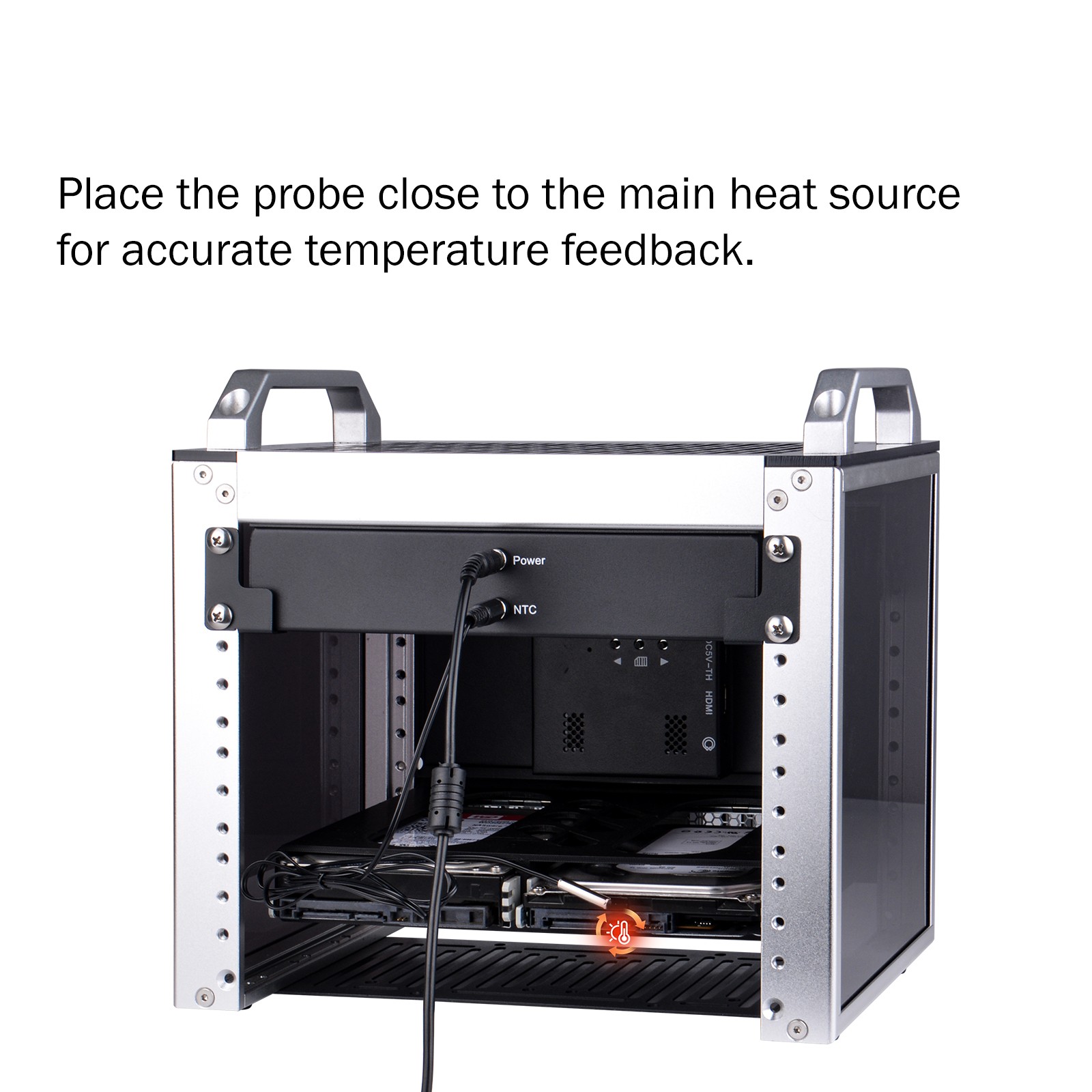

NTC Sensor Placement

  1. DC Power Input: Plug a certified DC 12V power adapter into the DC port.
  2. NTC Thermal Sensor: Plug the NTC sensor probe into the sensor socket and route the lead toward internal hot spots (such as SBC processors or power modules).

Fan Operating Modes & Logic​

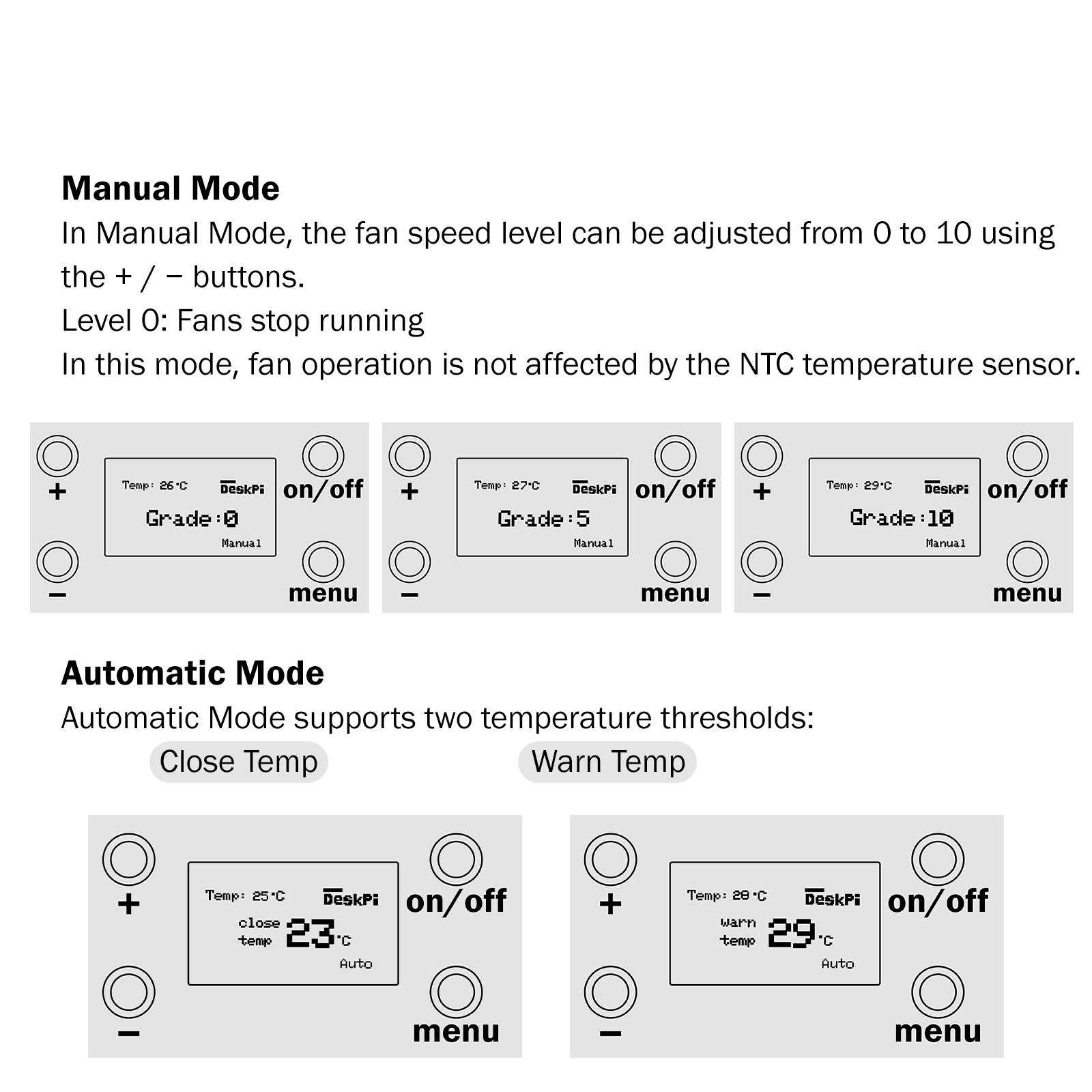

Automatic Mode Overview

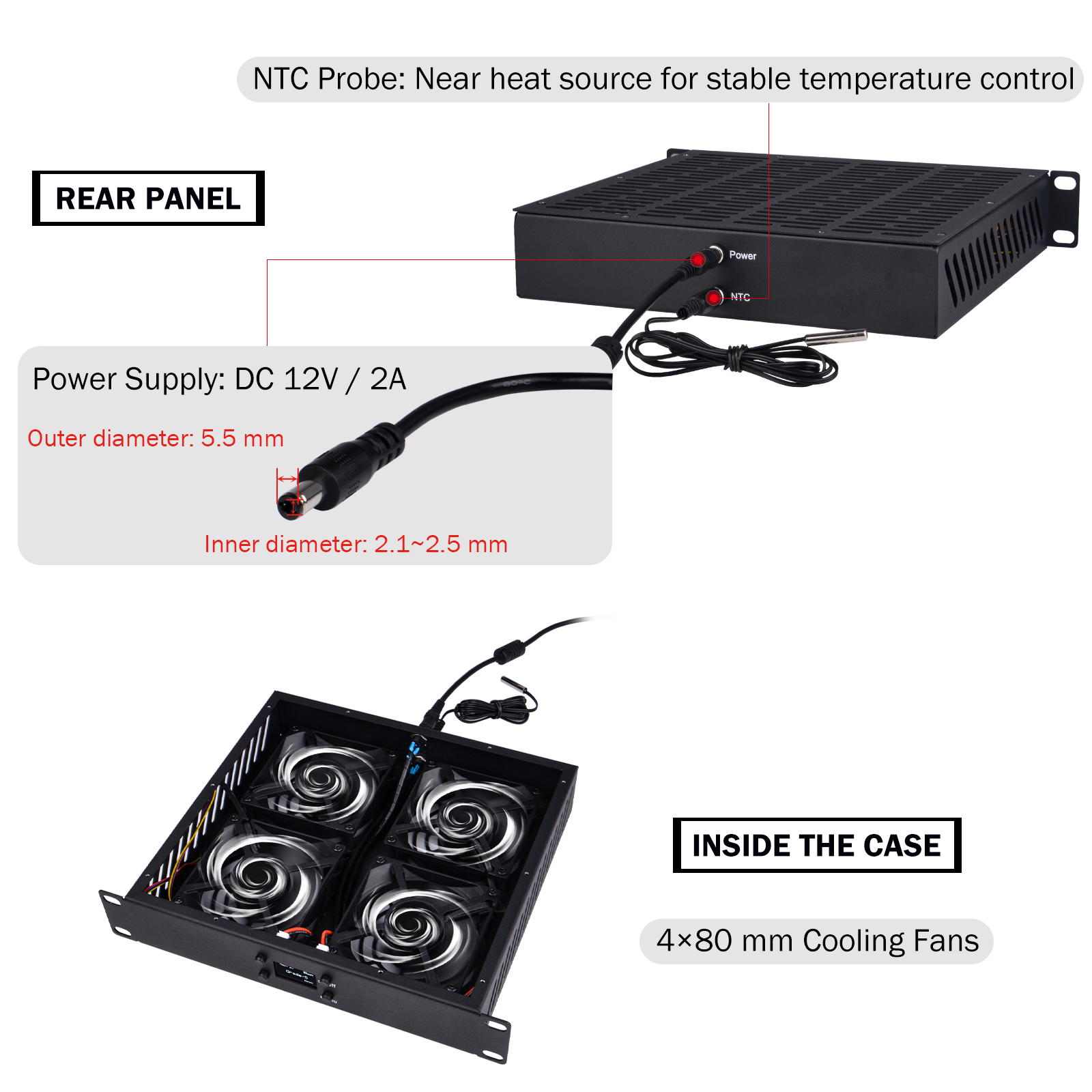

DC Port Specifications

  • Below Close Temp: The quad fans stop completely for whisper-quiet low-load operation.
  • Between Close Temp and Warn Temp: The fan speed automatically scales according to temperature changes.
  • Above Warn Temp: The quad fans operate at maximum RPM, and the digital display flashes an alarm alert.

Package Includes​

  • 1 × DeskPi 10-inch 1U Quad Cooling Fan Panel
  • 1 × External NTC Temperature Sensor Probe Lead
  • 1 × Mounting Hardware Set (M4/M5 Screws & Washers)

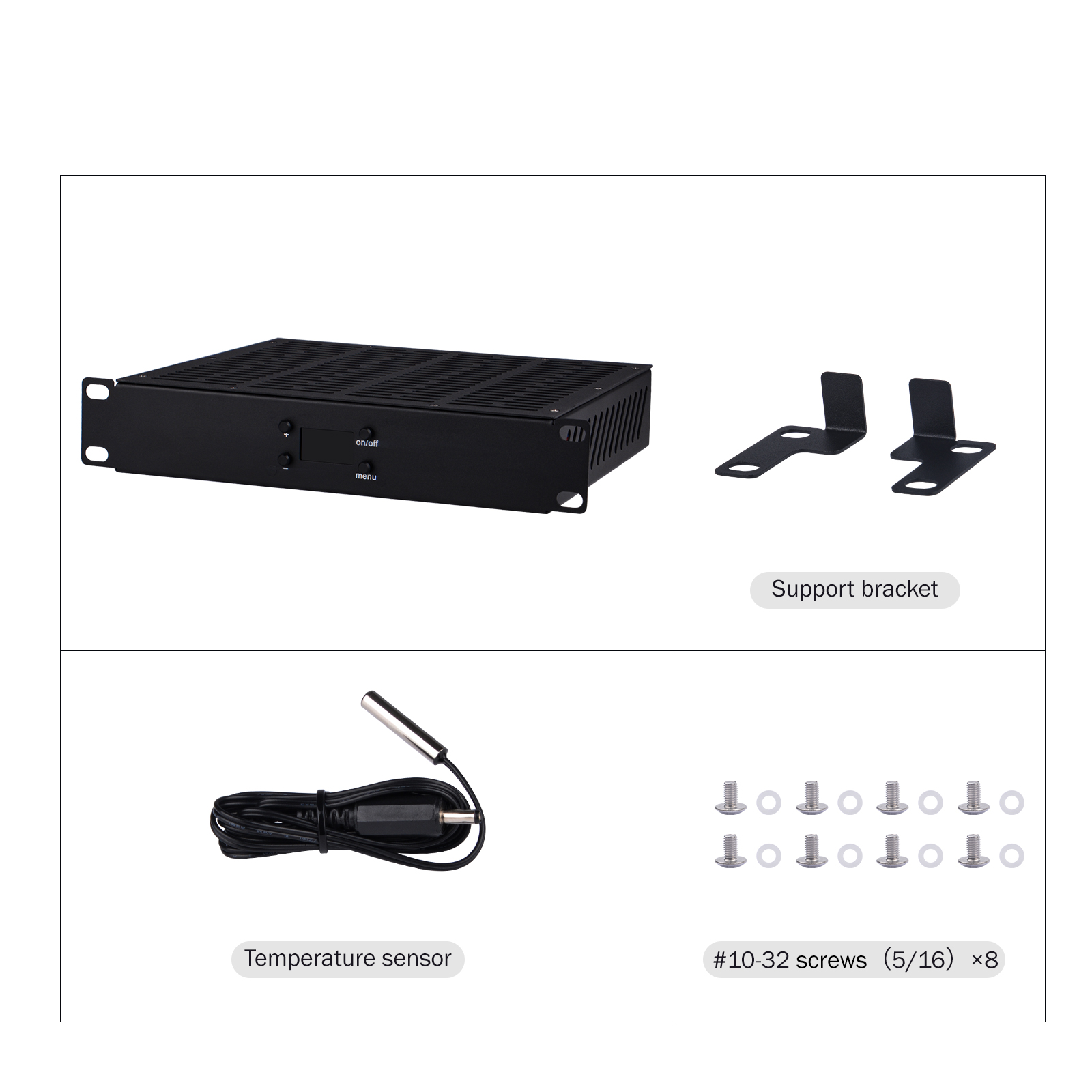

Accessory Hardware List

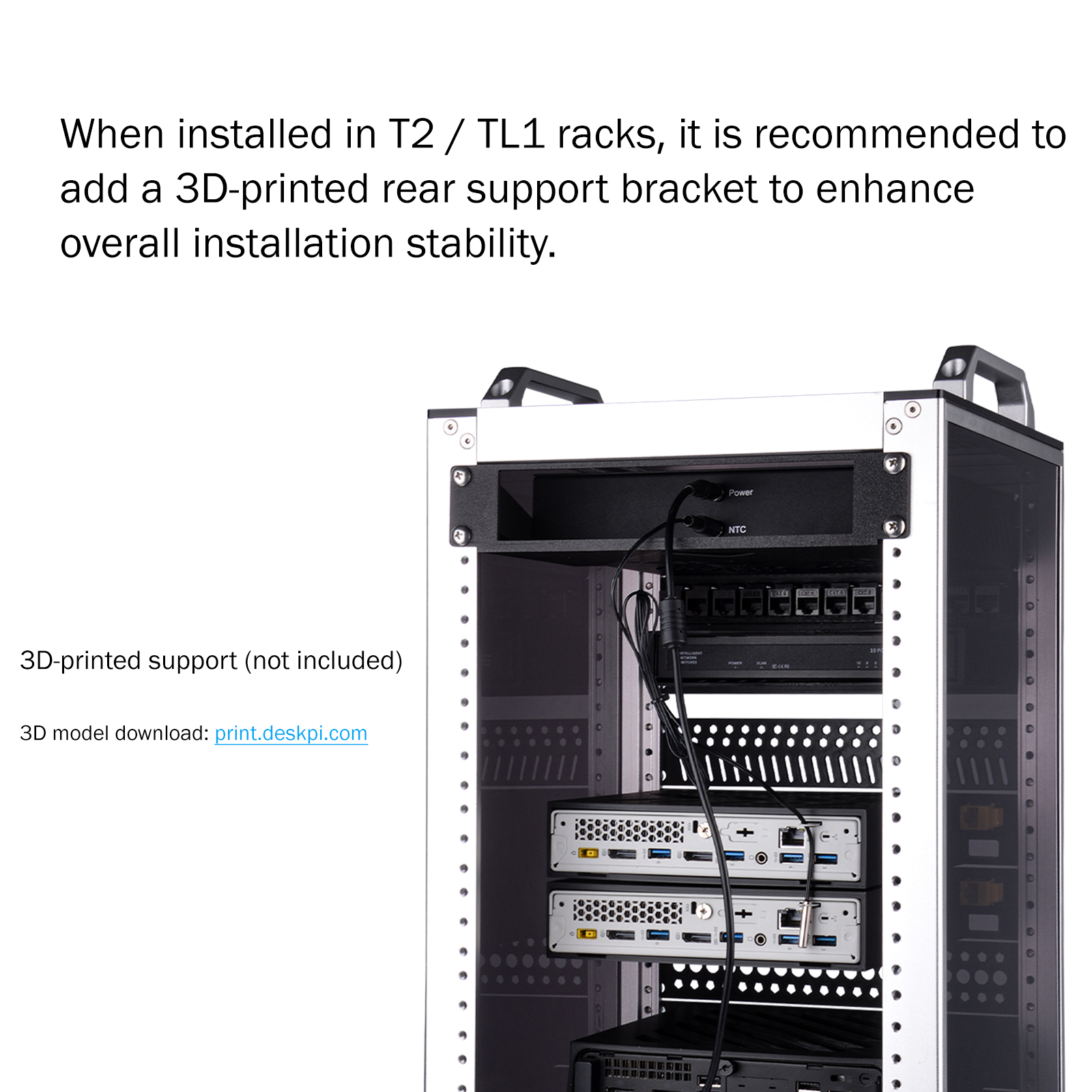

Rear Support Mounting

Precautions​

  • Do not operate the device with rear or front airflow grilles obstructed.
  • Ensure the input power voltage strictly complies with the DC 12V requirement.
  • Disconnect power prior to rack servicing or cleaning.
