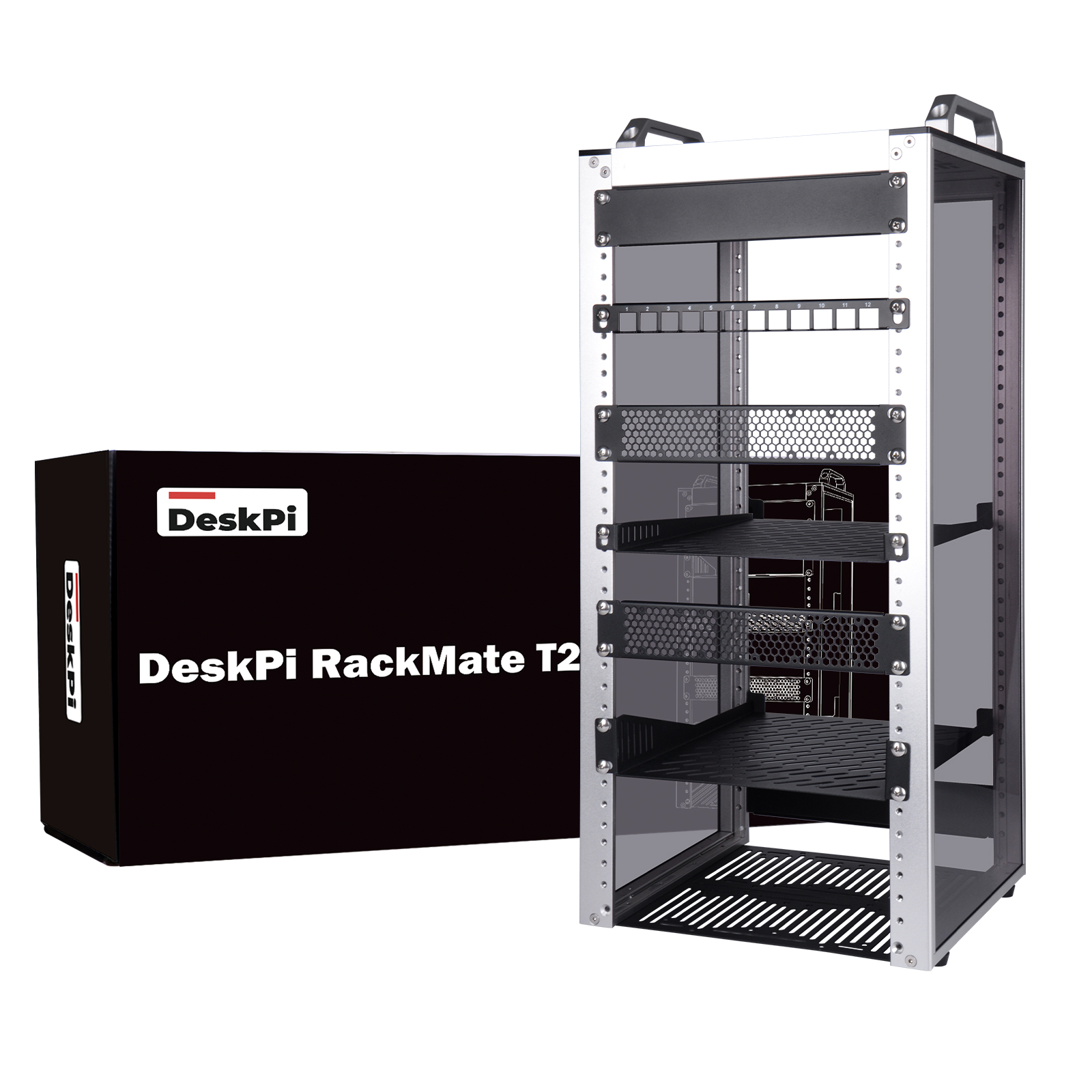

DeskPi RackMate T2 (DP-0048)
SKUDP-0048
Form Factor10-Inch 12U Desktop Server Rack
Usable Height12U Standard Rack Units
Side PanelsTransparent Acrylic
Description​
The DeskPi RackMate T2 is a 10-inch 12U server rack for organizing compact computing and networking equipment. Built on the RackMate modular ecosystem, it provides 12U of usable height for larger homelab builds.

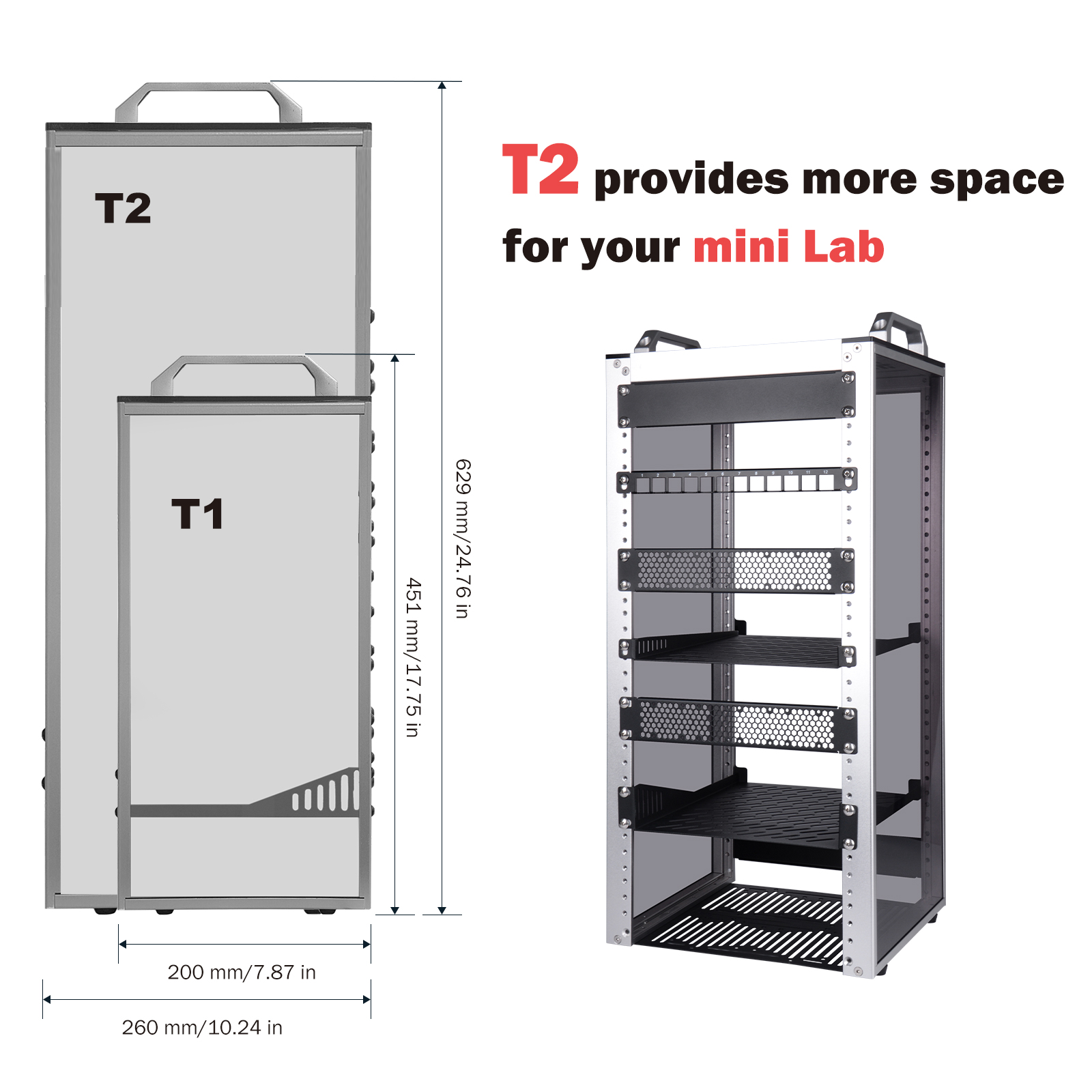

T2 alongside the RackMate T1, with a populated accessory configuration
Key Features​
- 10-Inch 12U Rack Design: Standard 10-inch mounting width with 12U of usable vertical space for switches, SBC clusters, and mini-PCs.
- Open Front and Rear Structure: Unhindered access to front I/O ports and rear cabling for easy maintenance and ventilation.
- Transparent Acrylic Side Panels: Tinted clear side walls keep dust off the equipment while showcasing internal components and LED indicators.
- RackMate T2 Accessory Compatibility: Accepts compatible DeskPi RackMate accessories such as patch panels, PDU, and cooling fan panels.
Technical Specifications​
| Specification | Details |
|---|---|
| Model SKU | DP-0048 |
| Rack Size | 10-inch |
| Rack Height | 12U |
| External Width | 281 mm (11.06 in) |
| External Depth | 260 mm (10.23 in) |
| Chassis Height | 596 mm (23.46 in) |
| Overall Height | 629 mm (24.76 in, including handle) |
| Internal Width | 212 mm (8.34 in) |
| Side Panels | Transparent Acrylic |

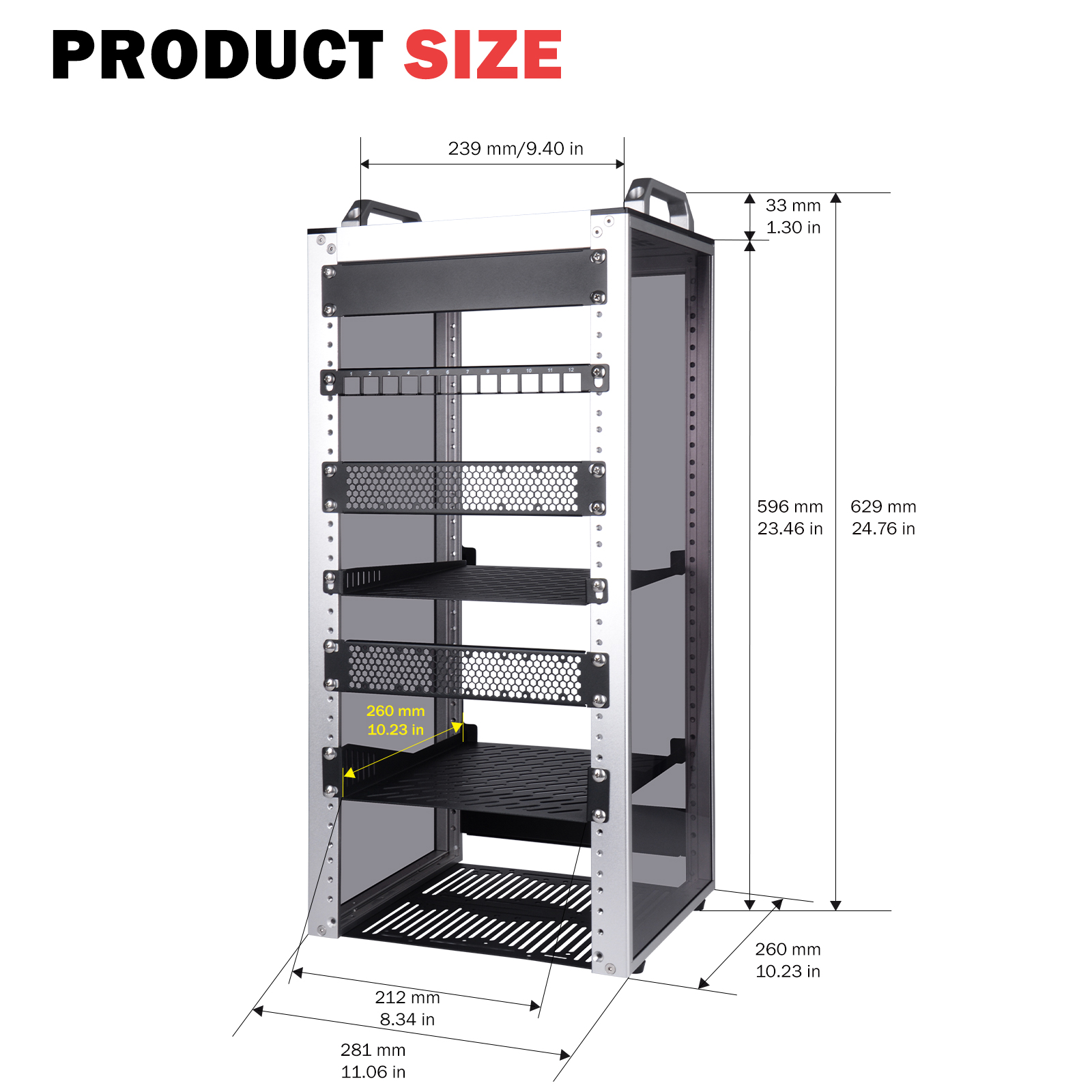

External dimensions and rail mounting layout
Recommended Modular Accessories​
Expand your 12U rack with official DeskPi RackMate accessories — patch panels, PDU, and cooling from the RackMate ecosystem:
| Accessory | SKU | Form Factor | Documentation |
|---|---|---|---|
| 12-Port CAT6 Patch Panel | DP-0034 | 0.5U / 1U | DP-0034 |
| DC PDU Lite 7-CH | DP-0042 | 0.5U | DP-0042 |
| 2U Dual Cooling Fan Panel | DR-0006 | 2U | DR-0006 |
For the complete catalog, visit the RackMate Accessories Comprehensive Overview or plan your stack with the RackMate Build Guide.
