DeskPi 10-inch 2U Dual Cooling Fan Panel (DR-0006)

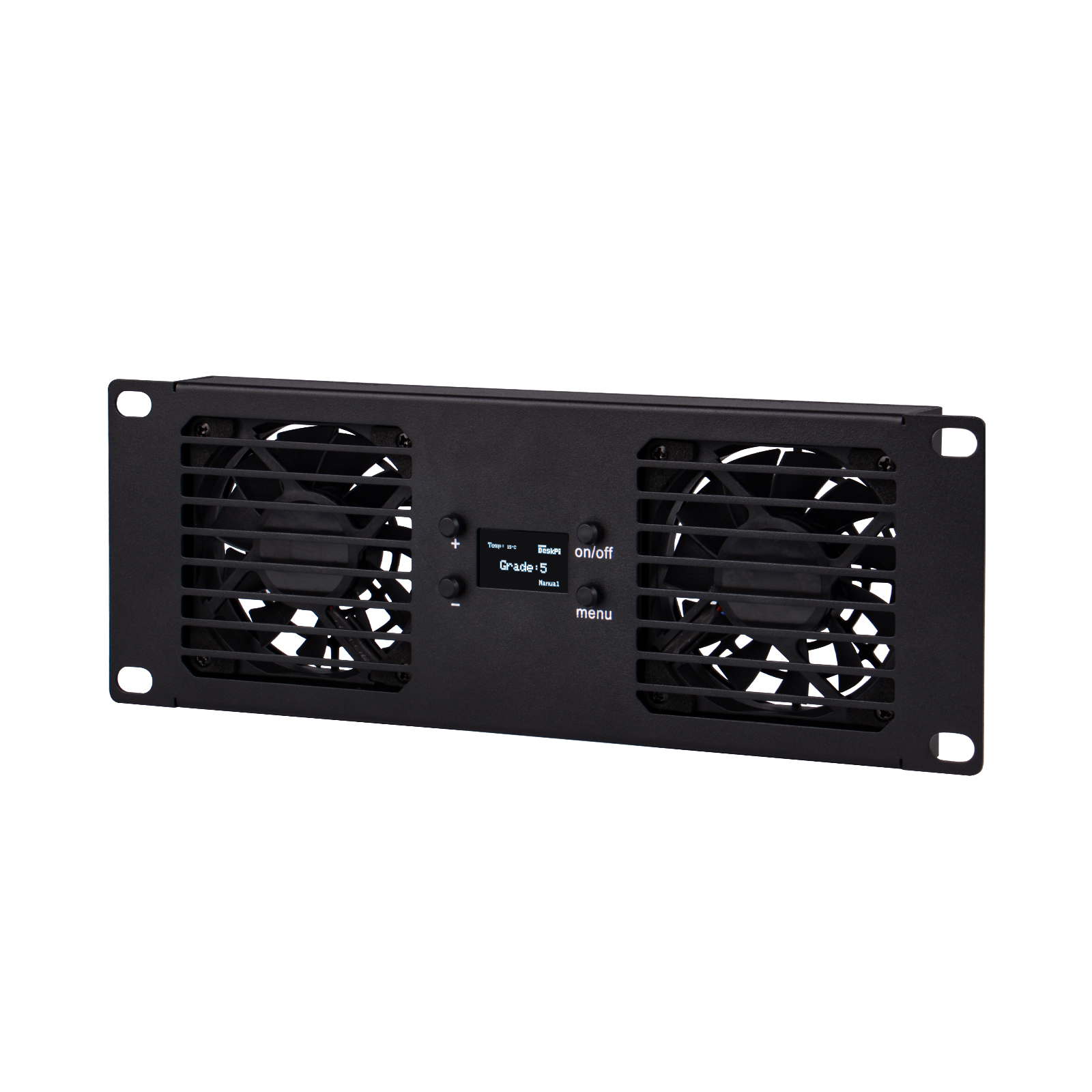

DR-0006 2U Dual Fan Panel Overview

SKUDR-0006
Height / Form Factor2U · 10-Inch Rack Mount
Cooling Units2× 70 mm High-Airflow Axial Fans
Thermal ManagementDigital Display · NTC Sensor · Auto/Manual PWM

🛒 Buy 2U Dual Cooling Fan Panel on Official Store →

Description​

The DeskPi 10-inch 2U Dual Fan Cooling Panel (DR-0006) is an intelligent active thermal management module engineered for 10-inch server racks and enclosures, including the DeskPi RackMate T1 and RackMate T0.

Equipped with two 70 mm high-airflow axial fans, a front-panel digital temperature display, and an external NTC thermal probe, the unit dynamically throttles fan RPM based on internal cabinet temperatures, preventing hot spots and ensuring stable continuous operation for compute clusters and high-density NAS storage.

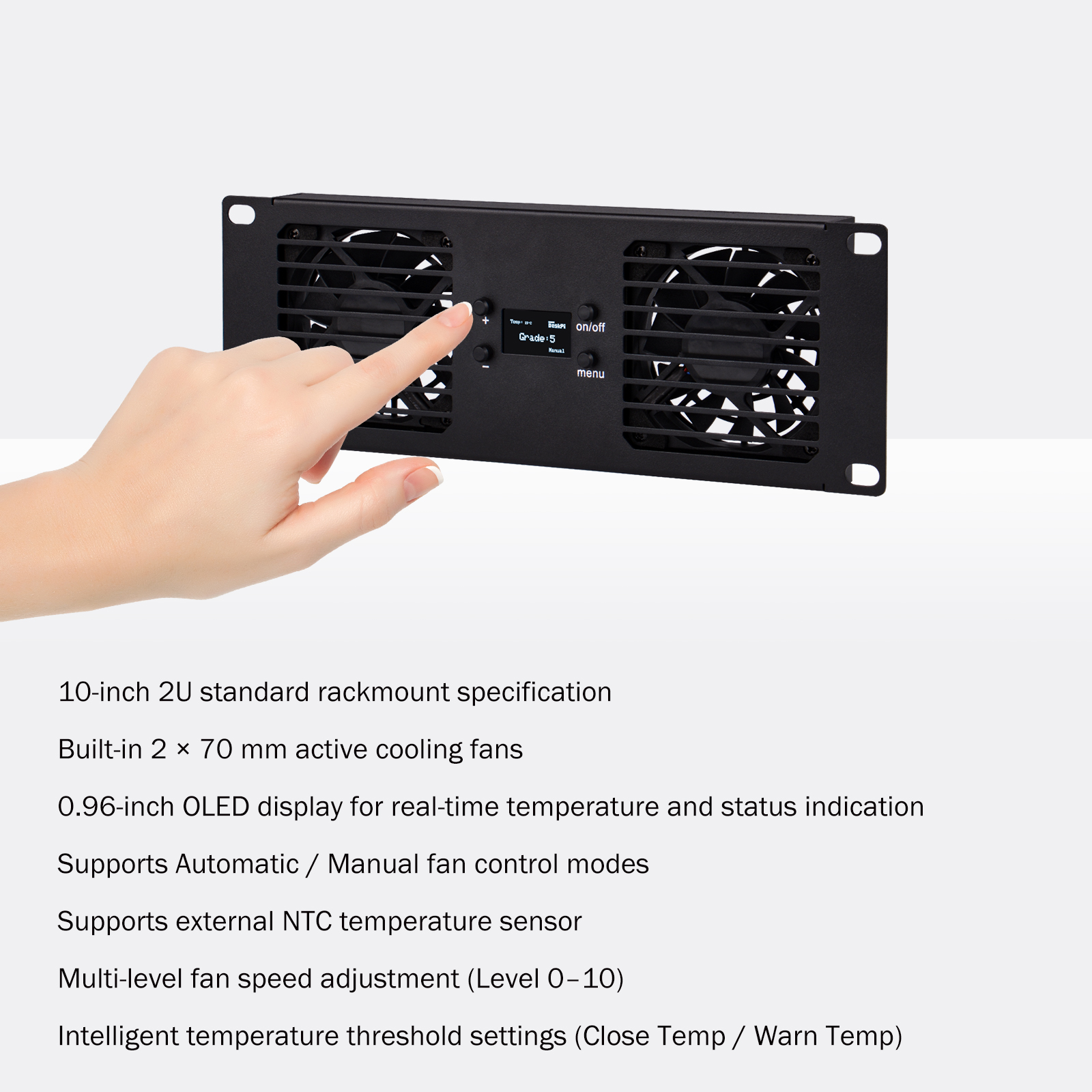

DR-0006 Features Overview

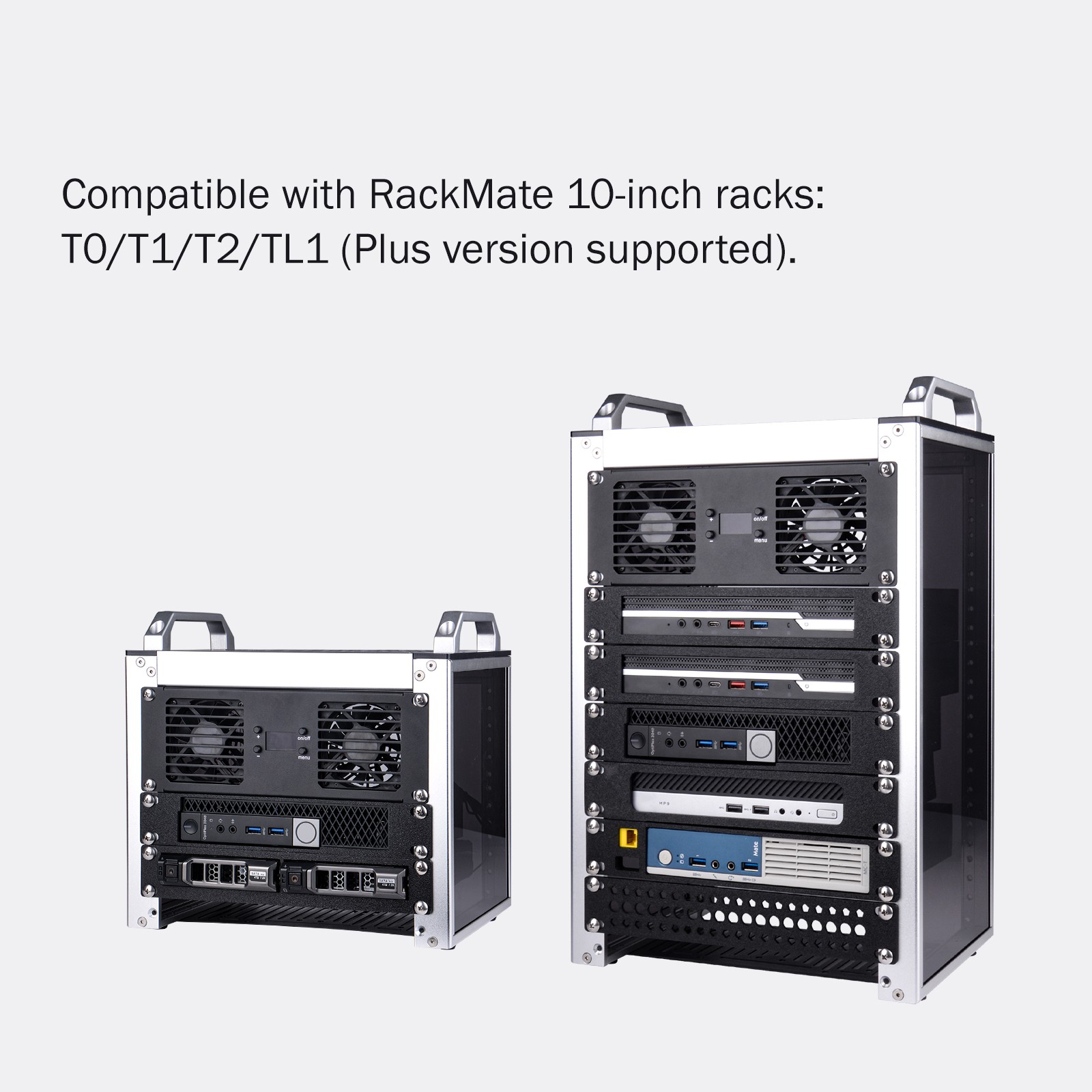

DR-0006 Mounted in RackMate T1

Key Features​

  • Dual 70 mm High-Throughput Fans: Rapidly exhausts accumulated hot air from the top or rear of the rack cabinet.
  • Intelligent Dual-Mode Control: Supports Automatic Mode (temperature-driven PWM curves via NTC probe) and Manual Mode (stepped user-selected fan speed).
  • Integrated Digital Telemetry: Real-time LED temperature readout and alarm threshold indicators visible from the front panel.
  • Programmable Warning Thresholds: Configurable low-temperature cutoff (Close Temp) and over-temperature high-speed alarm (Warn Temp).
  • Universal 10-Inch Compatibility: Fits RackMate T0, T1, T2, and all universal 10-inch standard server racks.

Technical Specifications​

SpecificationDetails
Model SKUDR-0006
Form Factor10-Inch Server Rack Mount (2U Height)
Operating VoltageDC 12V (Via DC barrel jack)
Fan Array2× 70 mm × 70 mm × 15 mm Axial Brushless Fans
Temperature SensorExternal NTC Thermal Probe (0 °C to 100 °C sampling range)
Control ModesAutomatic (Sensor-guided) / Manual (Level-adjusted)
Chassis MaterialCold-Rolled Carbon Steel with Matte Black Powder Coat
Cabinet CompatibilityDeskPi RackMate T0, RackMate T1, and universal 10" cabinets

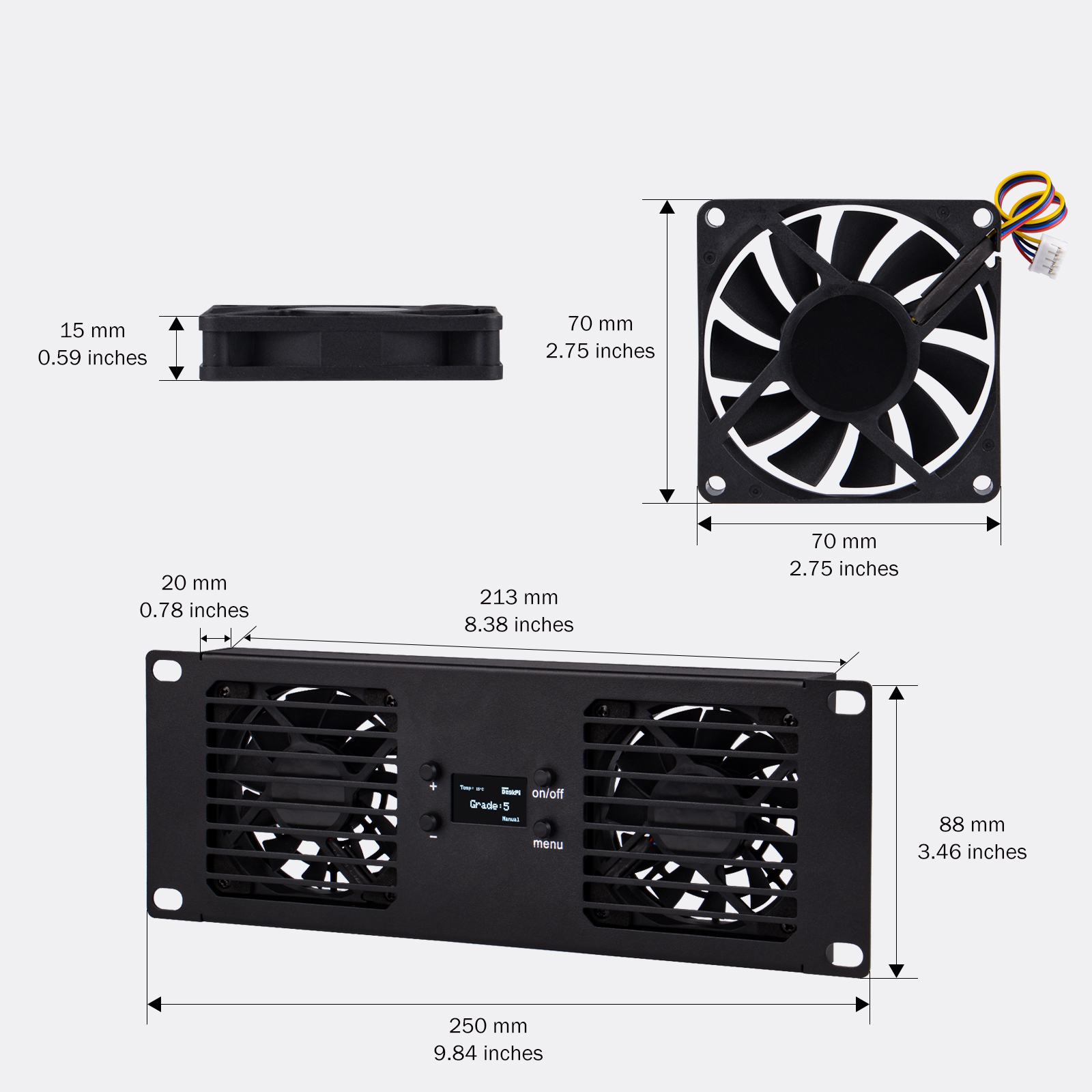

DR-0006 Physical Dimensions

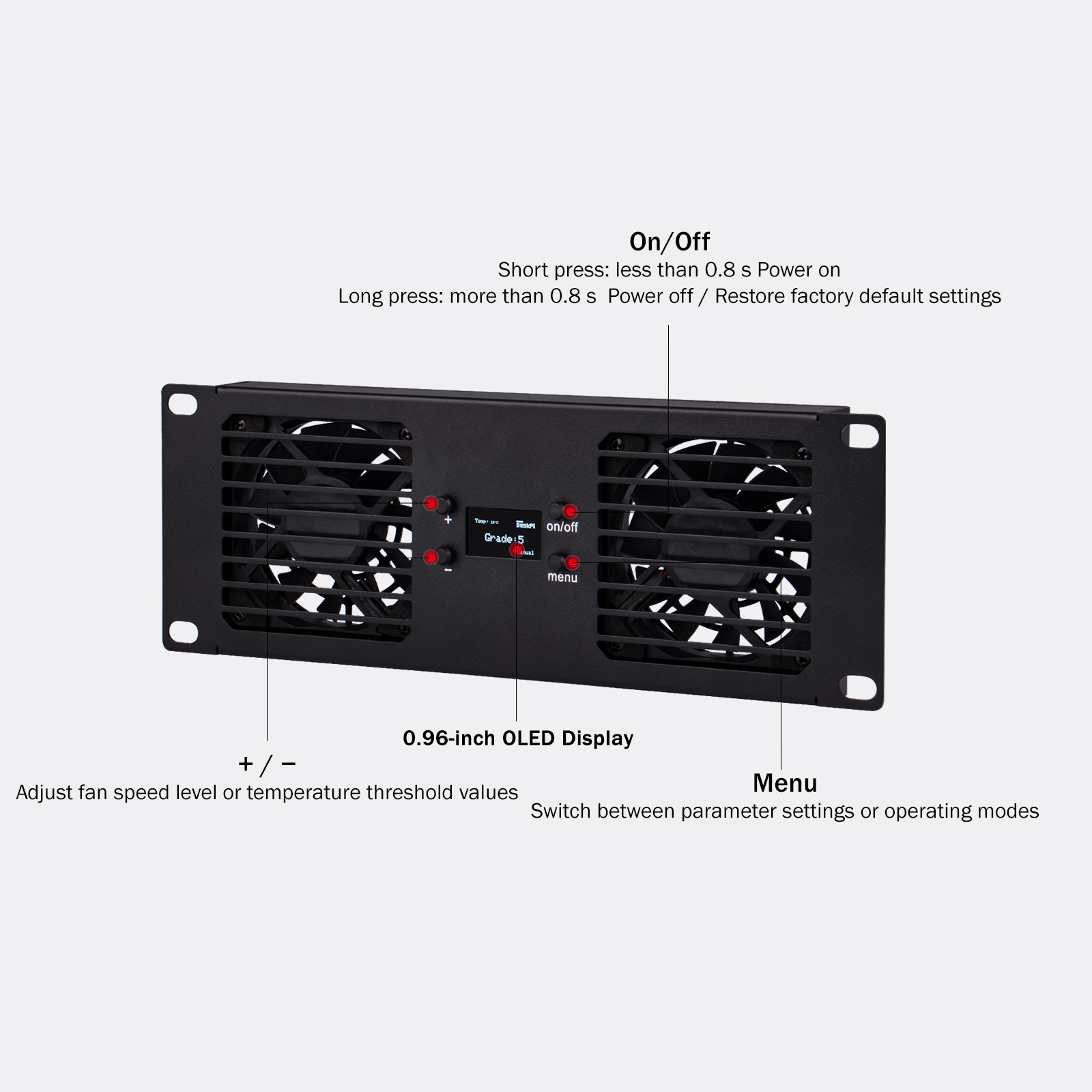

DR-0006 Front Button Controls

Connectors & Sensor Setup​

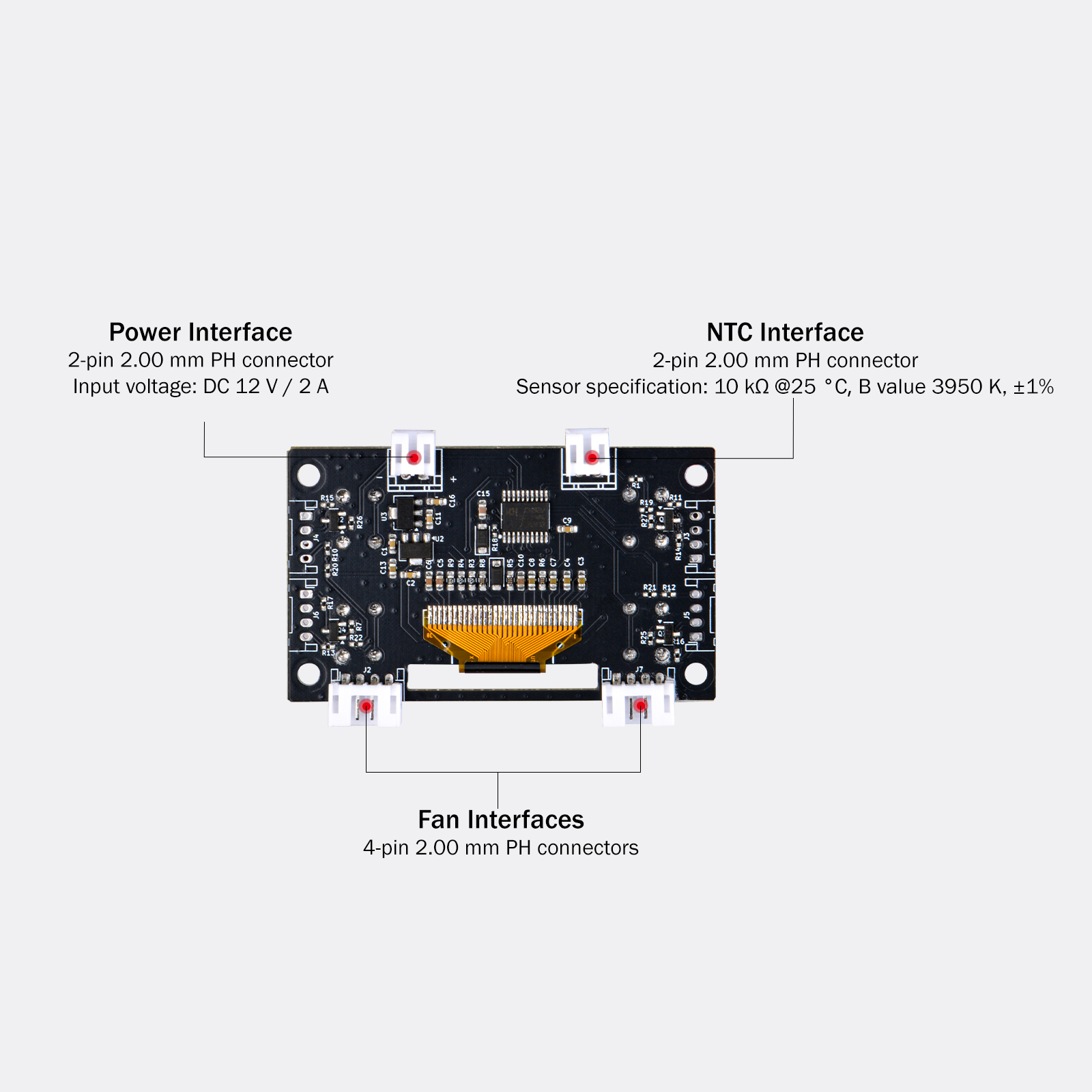

Power and Sensor Terminals

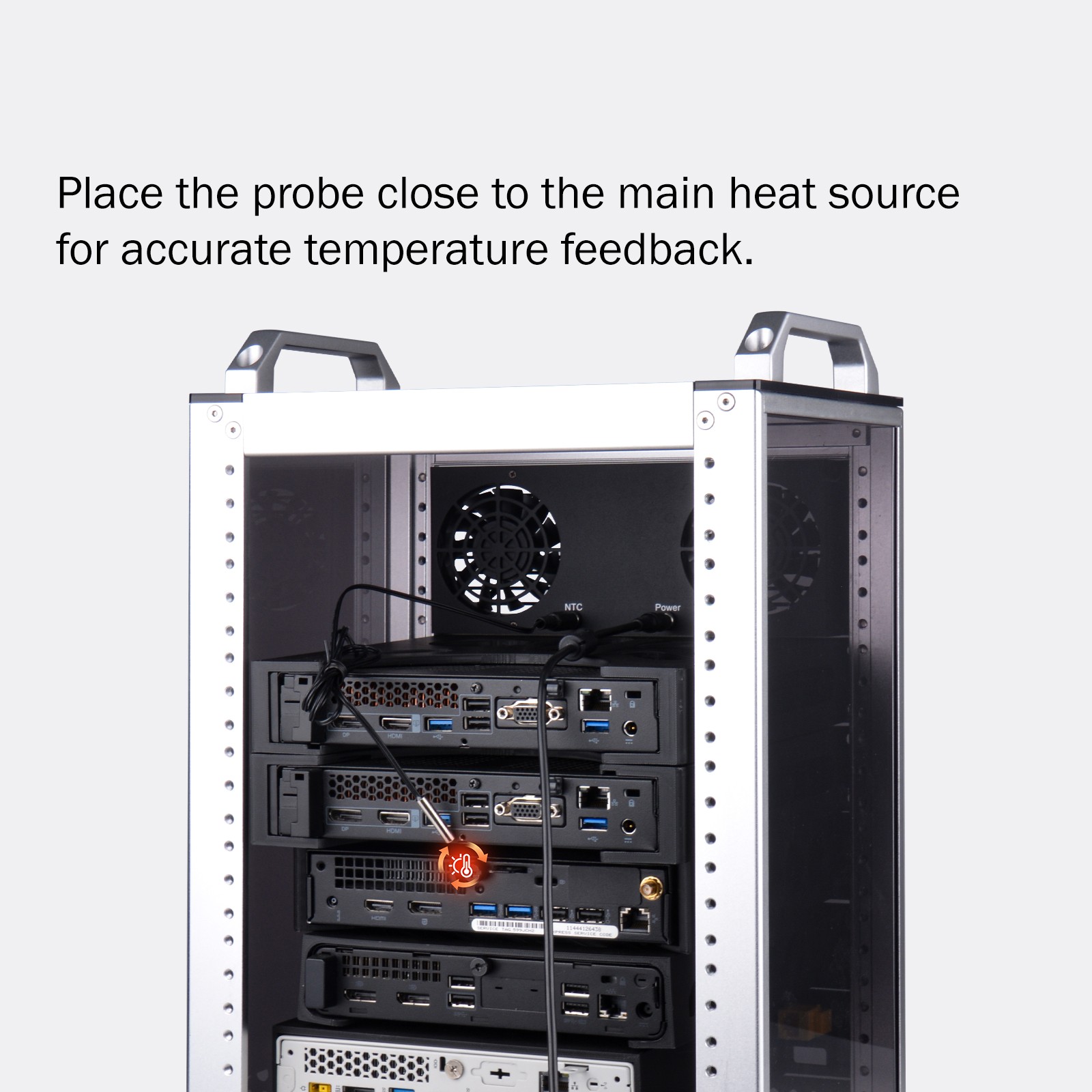

NTC Sensor Placement

  1. Power Input: Connect a certified DC 12V power adapter to the rear DC barrel jack.
  2. NTC Thermal Probe: Plug the NTC sensor probe into the sensor socket and route the lead toward your hottest equipment (such as SBC CPU heatsinks or storage drives).
  3. Note: If the NTC probe is not connected, the panel will default to manual fan mode.

Fan Operating Modes & Control Logic​

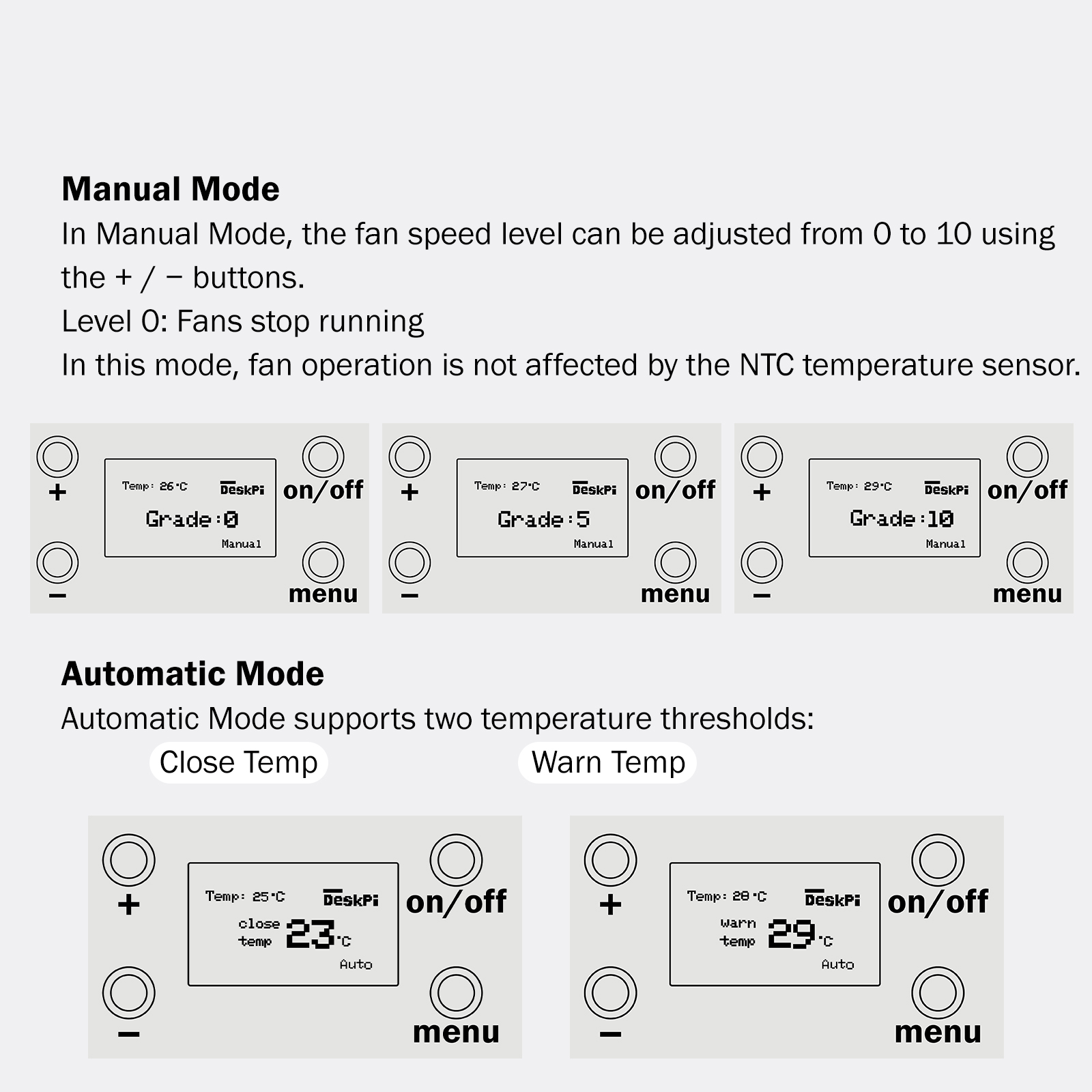

Automatic Mode Diagram

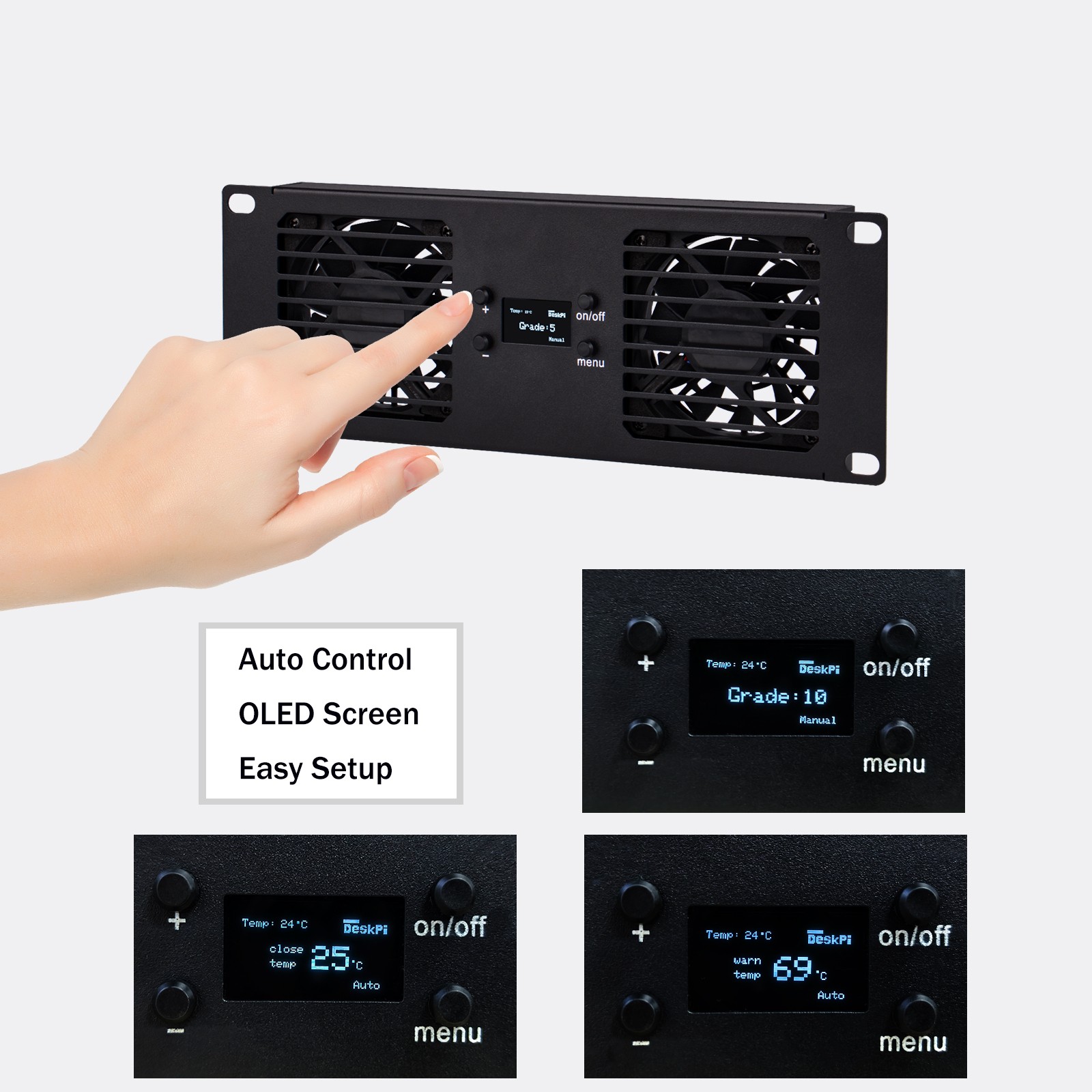

Manual Speed Step Diagram

Thermal Throttling Logic​

  • Below Close Temp: The fans stop completely for silent idle operation.
  • Between Close Temp and Warn Temp: Fan speed is modulated proportionally between minimum and maximum RPM to balance noise and thermal efficiency.
  • Above Warn Temp: Fans ramp immediately to 100% full speed, and the front digital display flashes to alert of thermal throttling.

Package Includes​

  • 1 × DeskPi 10-inch 2U Dual Cooling Fan Panel
  • 1 × External NTC Temperature Sensor Probe Lead
  • 1 × Mounting Hardware Set (M4/M5 Screws & Washers)

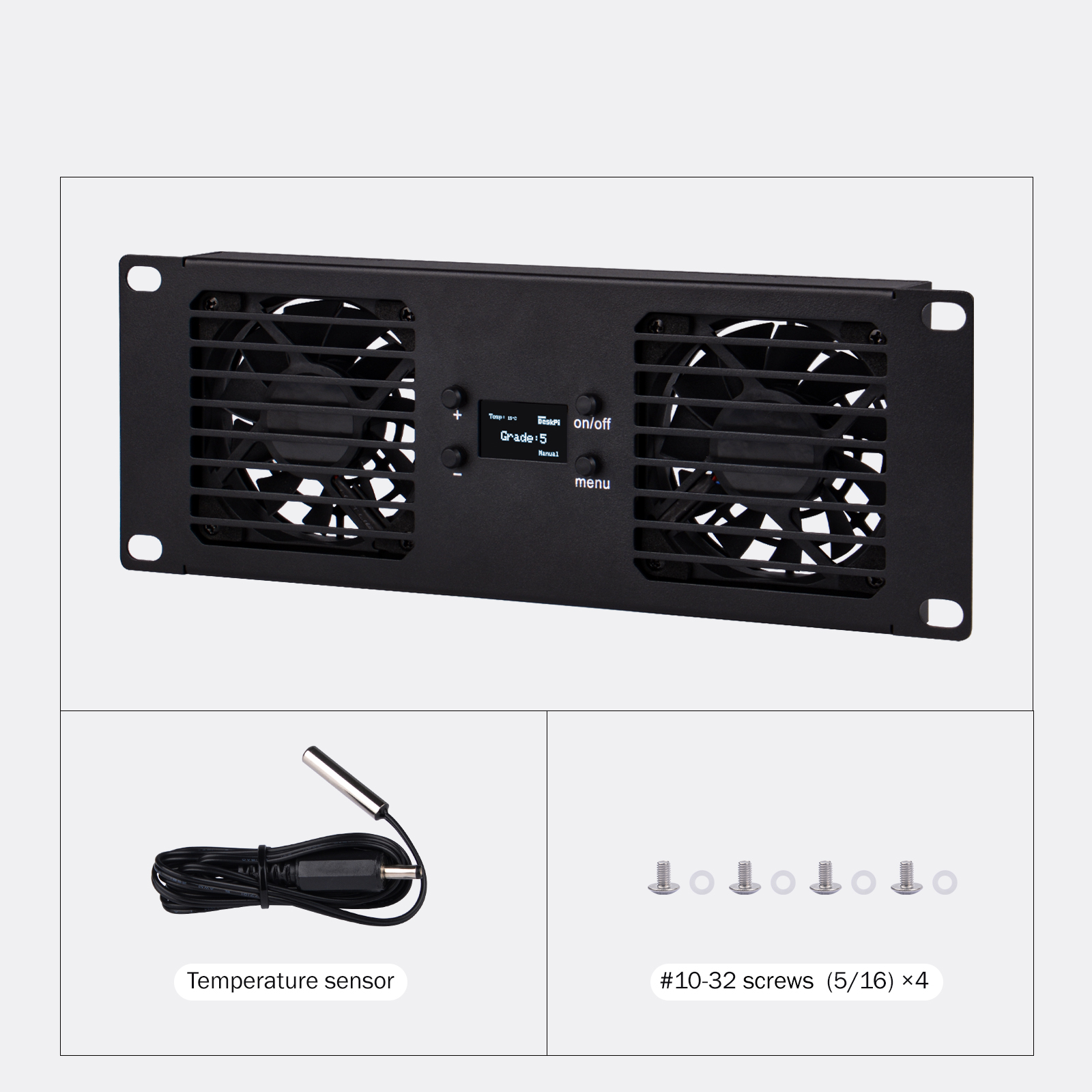

Included Hardware Accessories

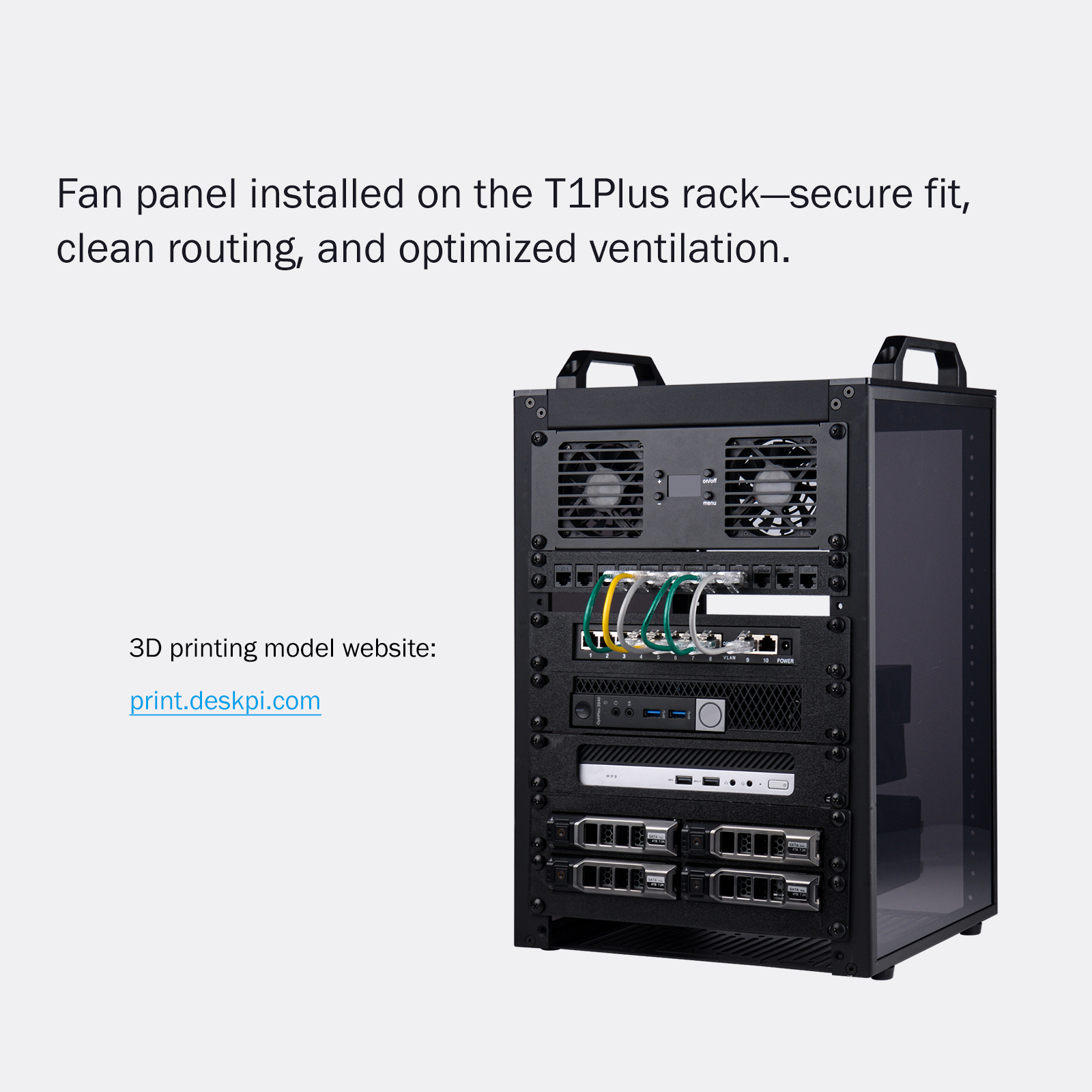

T1 Rack Installation Example

Frequently Paired Accessories​

AccessorySKUForm FactorRecommended Pairing
DeskPi RackMate T1DP-00228U CabinetMount at top rack position for optimal thermal exhaust
DC PDU Lite 7-CHDP-00420.5USupply clean 12V DC power directly from rack PDU
2U PCIe NVMe MountDP-00462UExhaust high heat generated by dual Pi 5 and NVMe drives
1U Blank PanelDP-00321UBlock bypass airflow so air is pulled over hardware
