DeskPi RackMate 10-inch 2U Raspberry Pi 5/4B RackMount (DP-0063)
SKUDP-0063
Rack Format10-inch · 2U
Board SupportRaspberry Pi 5 / Raspberry Pi 4B
Cabinet CompatibilityRackMate T0 / T1 / T2 / TL1
Description

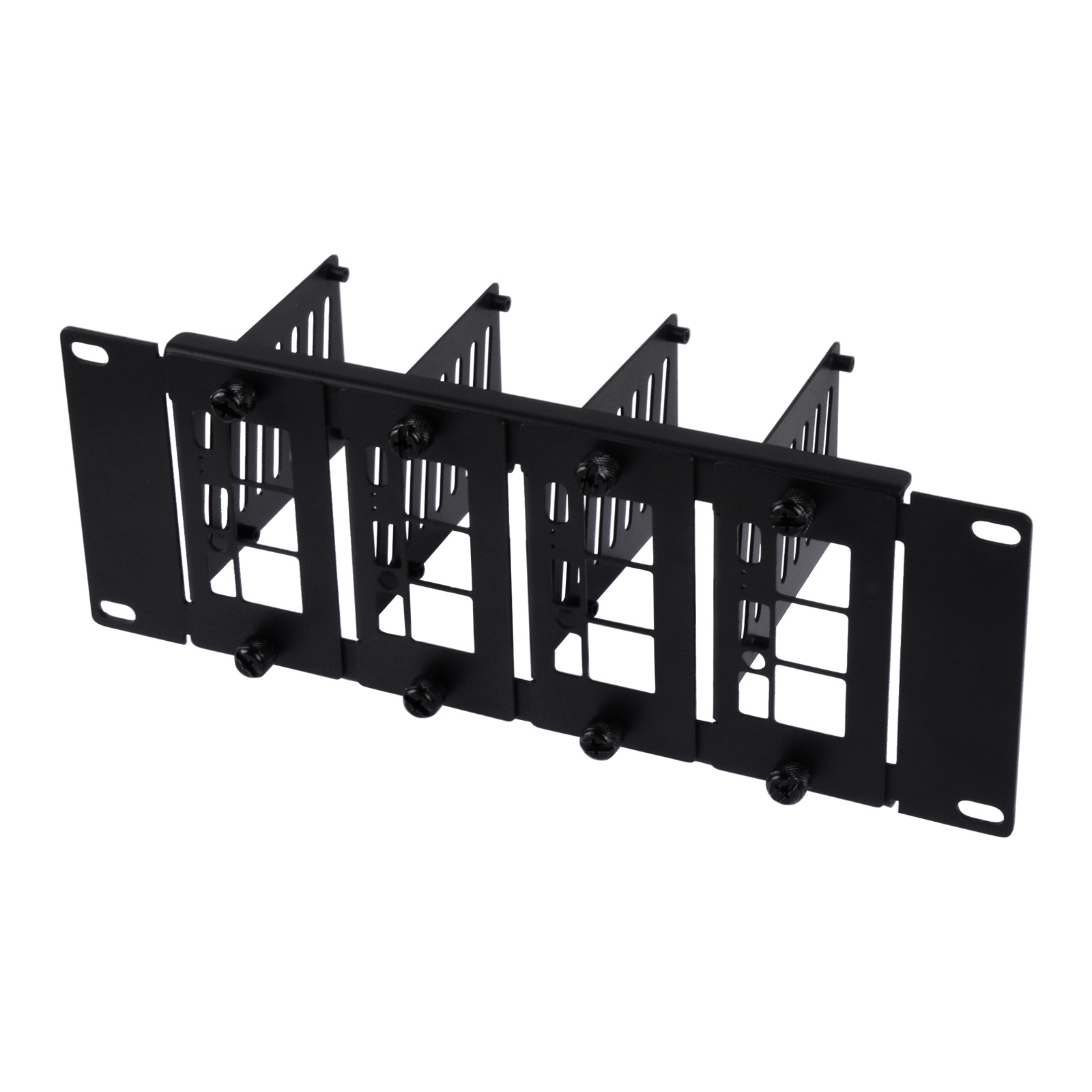

The DeskPi RackMate 10-inch 2U Raspberry Pi RackMount (DP-0063) is designed for installing Raspberry Pi 5 or Raspberry Pi 4B boards in compatible RackMate cabinets.
Key Features
- 2U Rack Format: Uses a 2U opening in a 10-inch rack.
- Raspberry Pi Support: Supports Raspberry Pi 5 and Raspberry Pi 4B.
- RackMate Compatibility: Supports RackMate T0, T1, T2 and TL1 cabinets.
Compatibility Note
The corresponding PCIe expansion board must be selected for the Raspberry Pi model in use. The official product information states that the expansion board's NVMe, UART, I2C and LED functions can be fully enabled with Raspberry Pi 5. With Raspberry Pi 4B, the NVMe expansion function does not work because Raspberry Pi 4B does not provide a PCIe interface for the board.
Technical Specifications
| Specification | Details |
|---|---|
| Model SKU | DP-0063 |
| Rack Size | 10-inch |
| Rack Height | 2U |

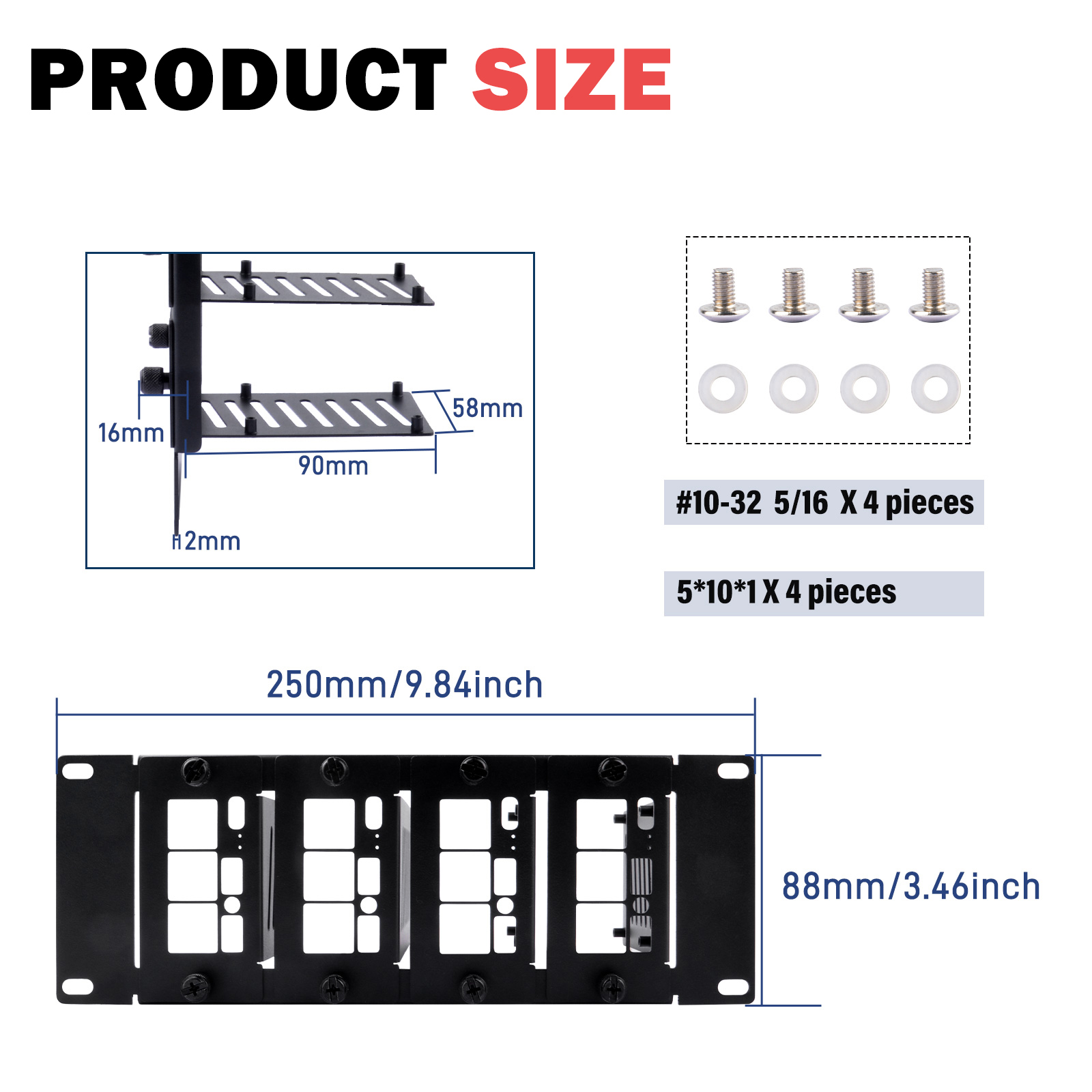

| Dimensions Shown in Product Image | 250 × 88 mm |
| Supported Boards | Raspberry Pi 5 / Raspberry Pi 4B |
| Compatible Models | RackMate T0 / T1 / T2 / TL1 |
Gallery
Frequently Paired Accessories
| Accessory | SKU | Form Factor | Recommended Pairing |
|---|---|---|---|
| DeskPi RackMate T0 | DP-0047 | 10-inch 4U Rack | Install the 2U Raspberry Pi rackmount in a compatible T0 cabinet |
| DeskPi RackMate T1 | DP-0022 | 10-inch 8U Rack | Install the 2U Raspberry Pi rackmount in a compatible T1 cabinet |
| DeskPi RackMate T2 | DP-0048 | 10-inch 12U Rack | Install the 2U Raspberry Pi rackmount in a compatible T2 cabinet |
| DeskPi RackMate TL1 | DP-0075 | 10-inch 10U Open-Frame Rack | Install the 2U Raspberry Pi rackmount in a compatible TL1 cabinet |
