DeskPi RackMate 10-inch Mini-PC Tray (DP-0073)
SKUDP-0073
Height / Form Factor1U · 10-Inch Rack Mount
Target DevicesMini-ITX Chassis, Intel NUC, Mini PCs
Front PassthroughCAT6 RJ45 Keystone + Full-Size HDMI
Description

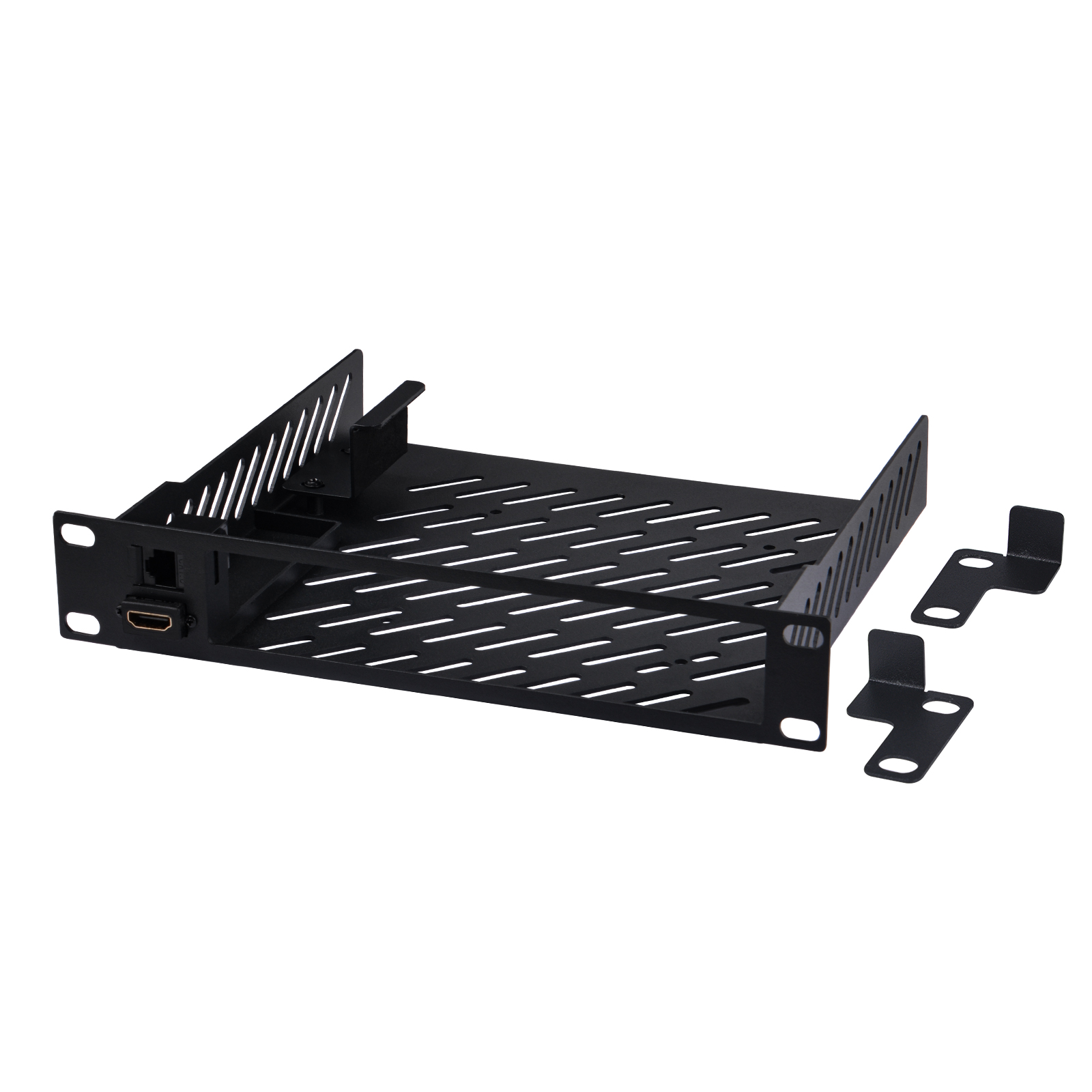

The DeskPi RackMate 10-inch Mini-PC Tray (DP-0073) is a heavy-duty metal mounting shelf designed to house a single compact mini-PC, Intel NUC, or Mac Mini inside DeskPi RackMate T0 and T1 server racks. The front bezel integrates pre-wired RJ45 keystone and HDMI passthrough couplers for clean front-panel I/O.
Key Features
- High-Rigidity Carbon Steel: SPCC cold-rolled steel chassis for load stability and thermal dissipation.

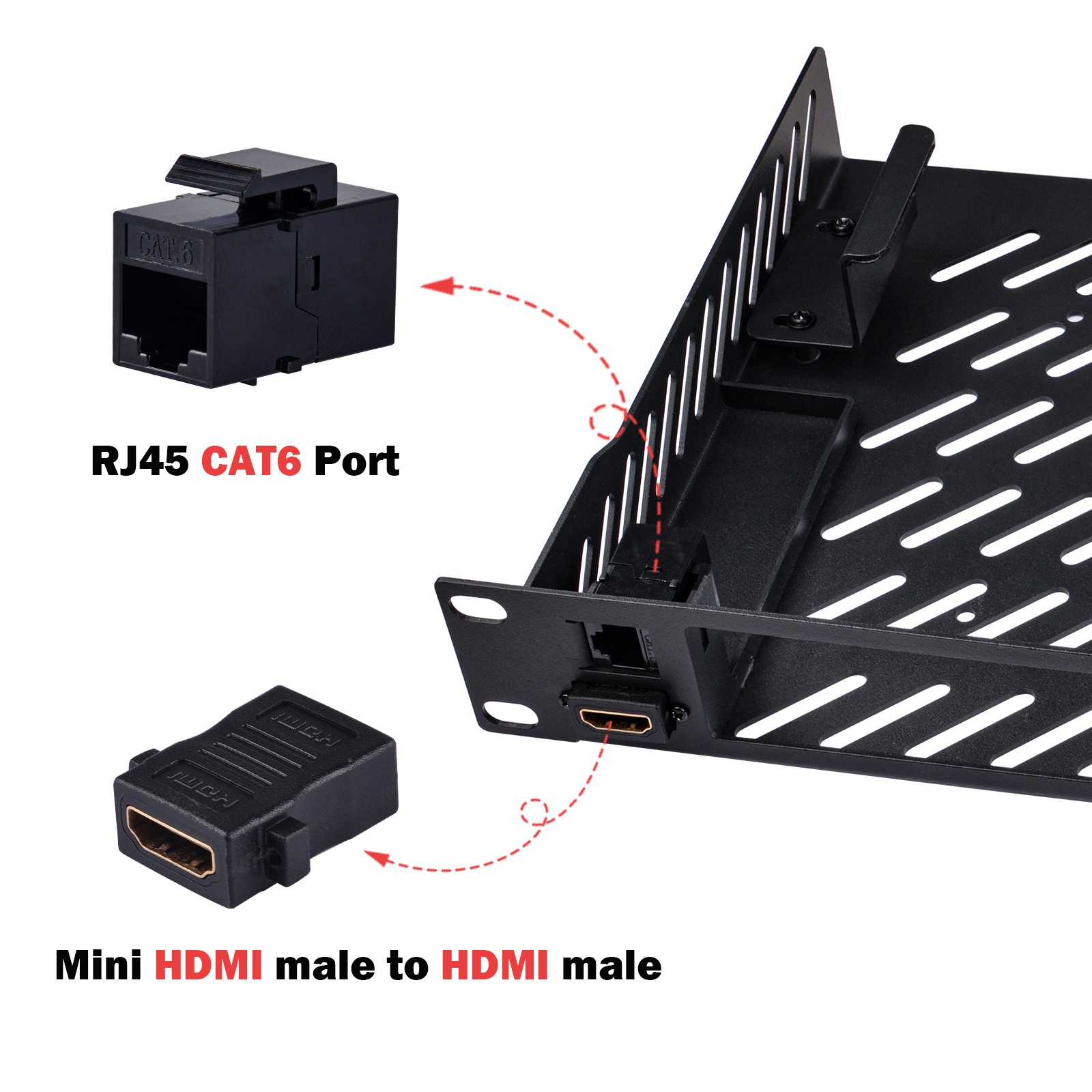

- Dedicated Front I/O Passthrough: Pre-mounted CAT6 RJ45 keystone and full-size HDMI female receptacle.

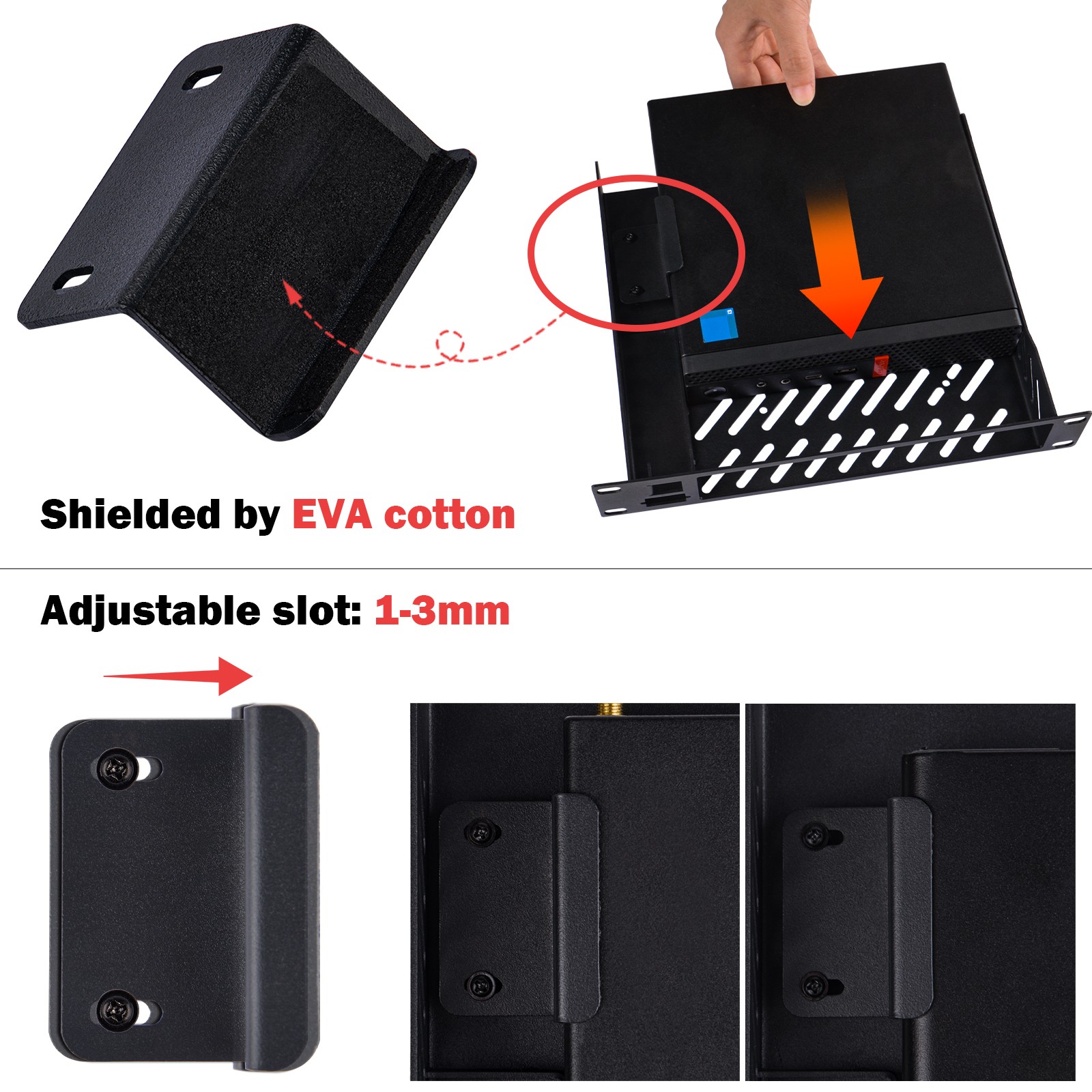

- Protective Shock-Absorbing Lining: Internal EVA cotton padding eliminates vibration and chassis scratching.
- Perforated Airflow Ventilation: Side and bottom vent slots maintain thermal exchange for high-TDP mini computers.

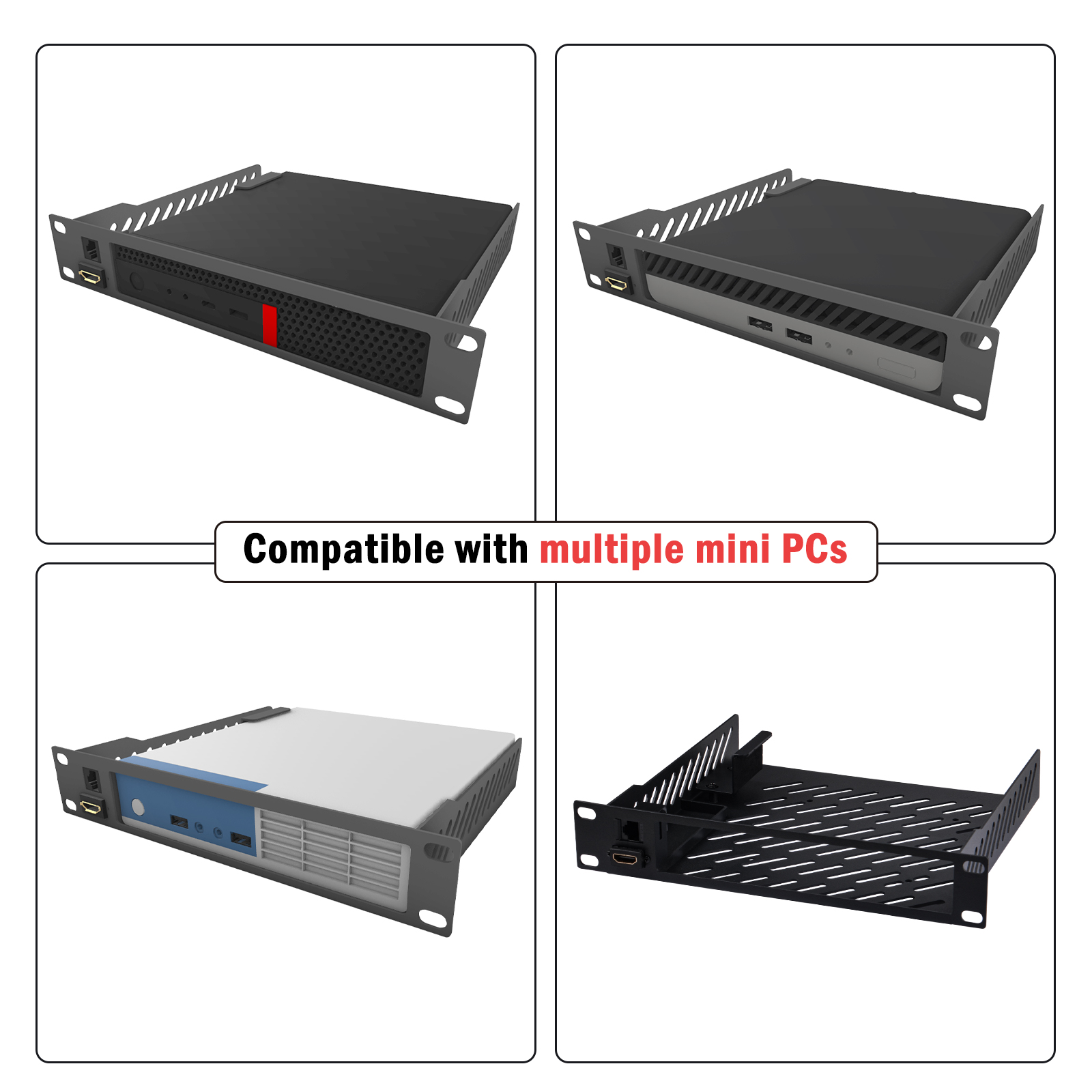

- Universal 10-Inch Compatibility: Engineered for RackMate T0 and RackMate T1 rail dimensions.
Technical Specifications
| Specification | Details |
|---|---|
| Model SKU | DP-0073 |
| Form Factor | 10-Inch Server Rack Mount (1U Height) |
| Front Connectors | 1× RJ45 CAT6 Keystone Coupler, 1× Full-Size HDMI Female |
| Internal Lining | High-density EVA protective shock-absorbing cotton |
| Chassis Material | SPCC Cold-Rolled Carbon Steel |

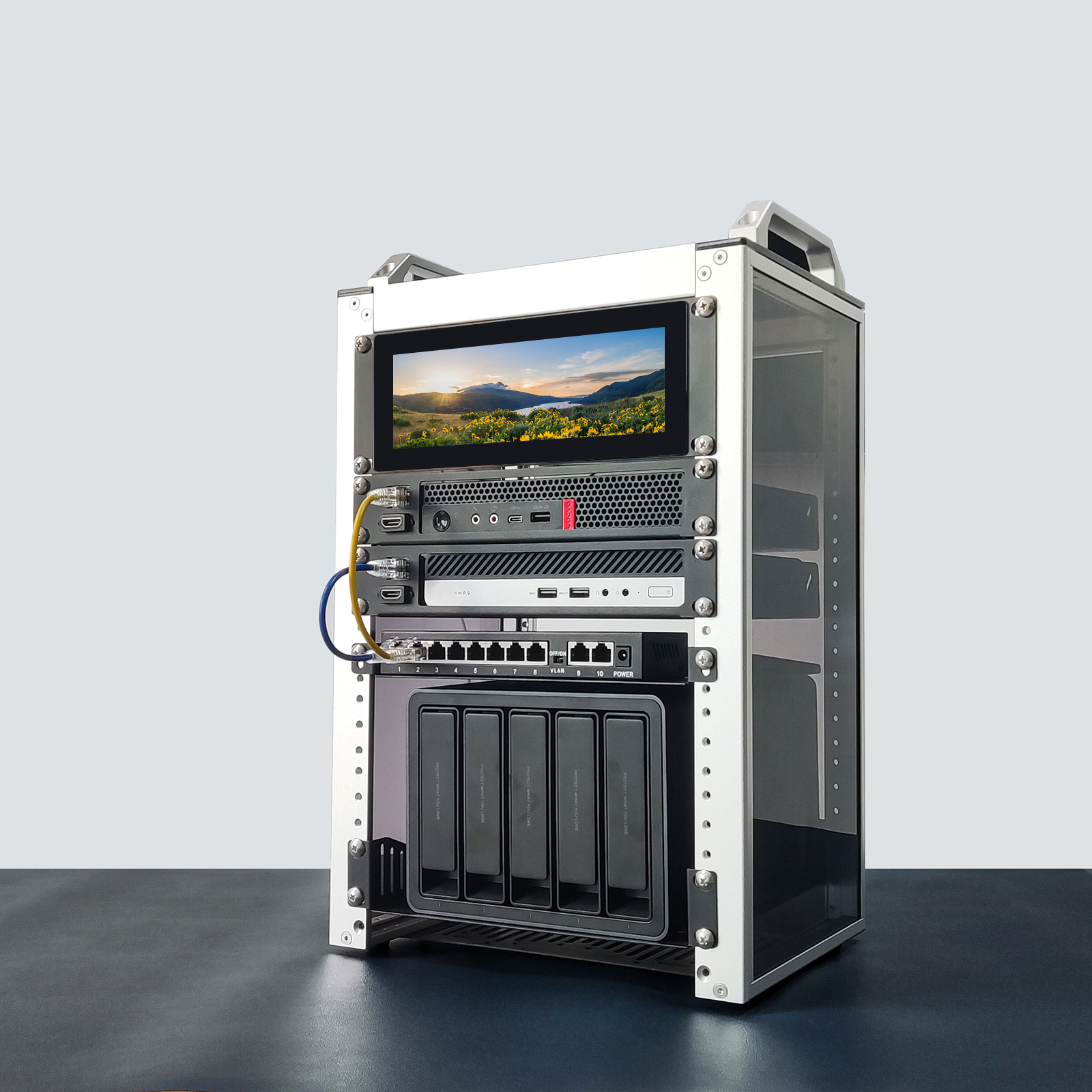

| Cabinet Compatibility | DeskPi RackMate T0, RackMate T1, and universal 10" racks |
Gallery
Video Guide

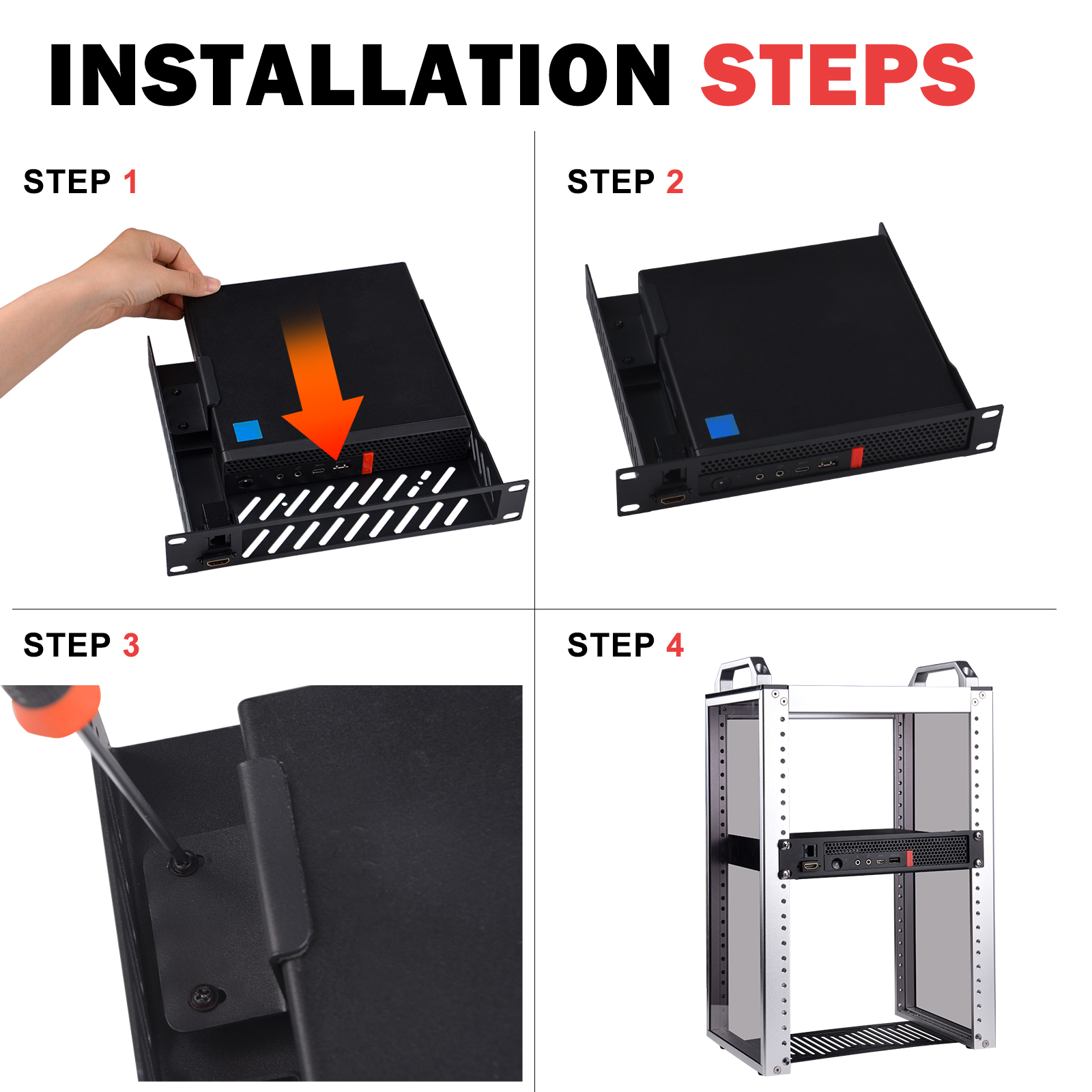

📺 DeskPi DP-0073 Mini-PC Tray Assembly & Installation Tutorial
Frequently Paired Accessories
| Accessory | SKU | Form Factor | Recommended Pairing |
|---|---|---|---|
| DC PDU Lite 7-CH | DP-0042 | 0.5U | Centralize 5V/12V DC power for the installed mini-PC |
| Cable Management Panel with 3 D-Rings | DP-0044 | 0.5U | Keep USB and power cords organized behind the tray |
| 1U PCIe NVMe Mount | DP-0039 | 1U | Pair the mini-PC tray with an NVMe storage shelf |
| Cable Entry Brush Panel | DP-0055 | 1U | Route display/ USB pigtails cleanly into the tray |
| 0.5U Heavy Duty Shelf | DP-0056 | 0.5U | Add a half-U shelf for accessories or small drives |
| DeskPi RackMate T0 | DP-0047 | 10-inch 4U Open-Frame Rack | Mount the tray in the open-frame T0 |
| DeskPi RackMate T1 | DP-0022 | 10-inch 8U Server Cabinet | Mount the tray in the enclosed T1 |
