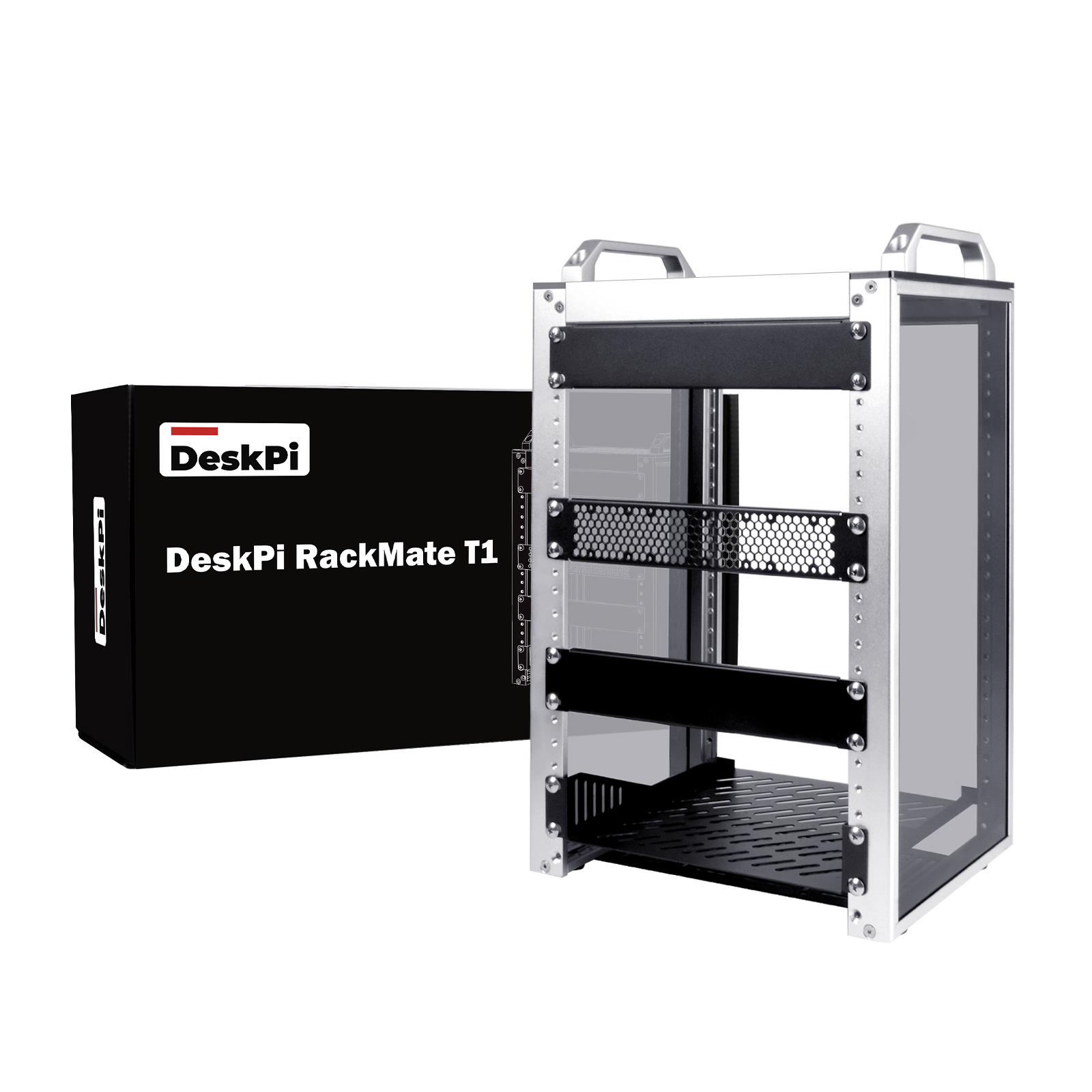

DeskPi RackMate T1 (DP-0022)
Description​
The DeskPi RackMate T1 is a precision-engineered 10-inch 8U desktop server cabinet built from heavy-duty aluminum alloy and tinted smoked acrylic. Designed for homelab enthusiasts, edge computing clusters, and network management, it delivers datacenter-grade rackmount organization in an ultra-compact desktop footprint.

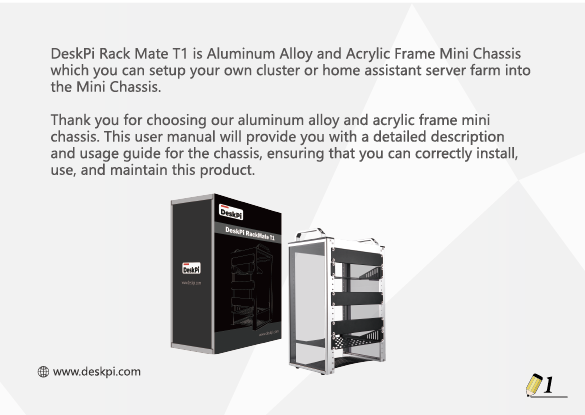

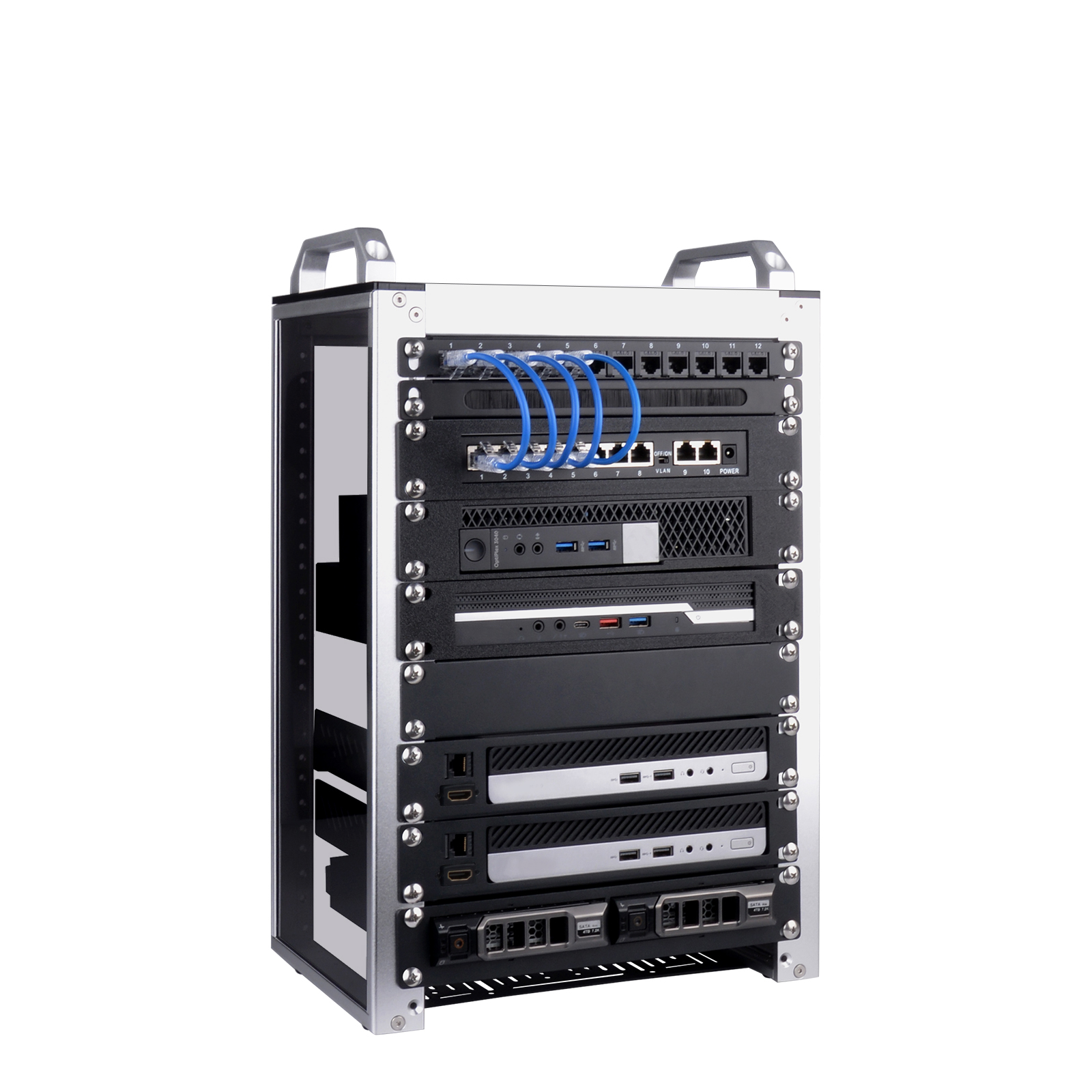

Standard 10-inch compact desktop profile
Features​
10-Inch Compact Form Factor​

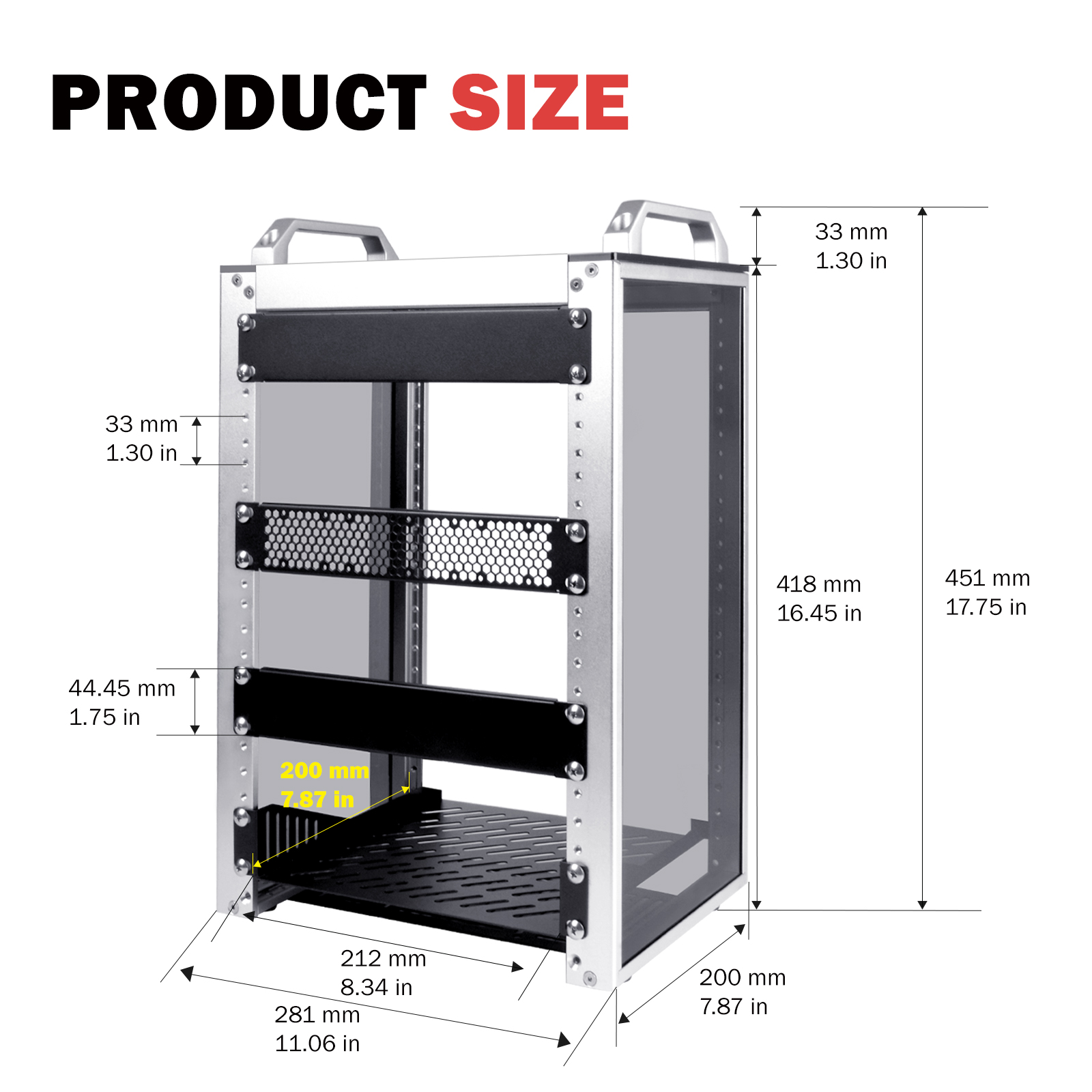

The cabinet features a standard 10-inch mounting width (outer dimensions 11 × 7.8 × 16 inches). This ultra-compact profile saves valuable desk space while accommodating standard 10" patch panels, switches, and SBC trays.

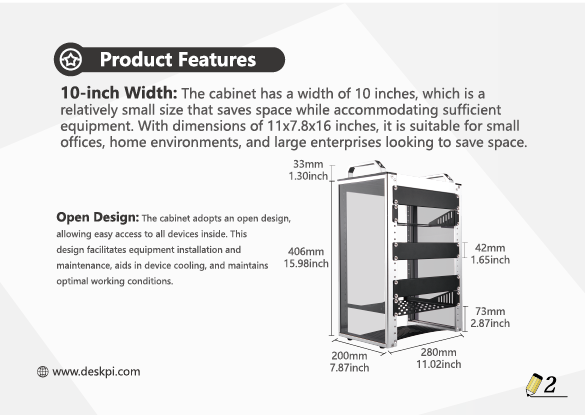

Open-Access Ergonomic Structure​
The cabinet adopts an open-accessible framework, providing unhindered access to front I/O ports and rear cabling, greatly simplifying routine maintenance and airflow ventilation.
Open-access ergonomic frame design

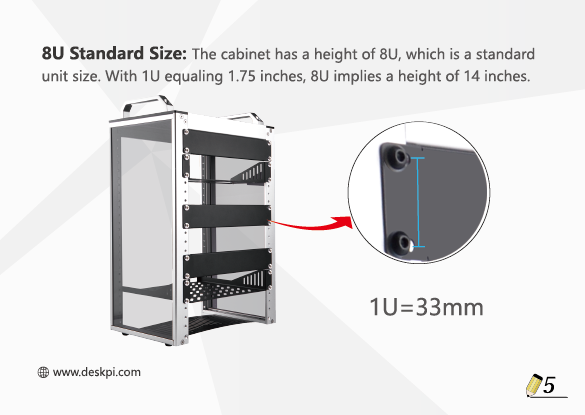

Standard 8U Vertical Capacity​
With 8U of standard vertical space (each 1U = 1.75 inches / 44.45 mm), the RackMate T1 provides 14 inches of usable equipment height.
8U standard vertical height profile
Precision Rail Mounting Specifications​
The vertical mounting rails feature precision-spaced M4 / M5 threaded holes conforming to standard 10-inch rack hole spacing:
Rail pitch and hole spacing dimensions
Vertical mounting rail hole distribution

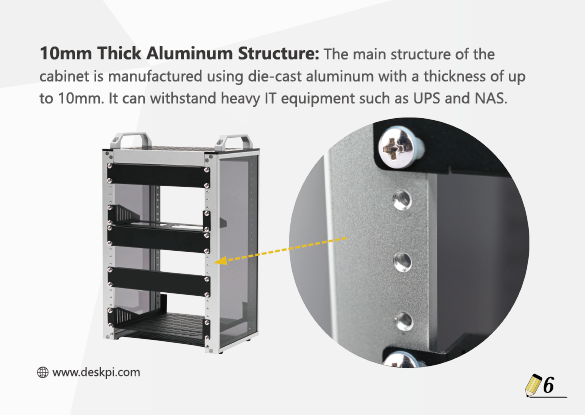

10 mm Die-Cast Heavy-Duty Aluminum Framework​
The structural backbone is precision die-cast aluminum with structural thickness up to 10 mm, providing immense rigidity capable of supporting heavy battery UPS units and multi-bay NAS storage arrays.
Heavy-duty 10 mm die-cast aluminum framing

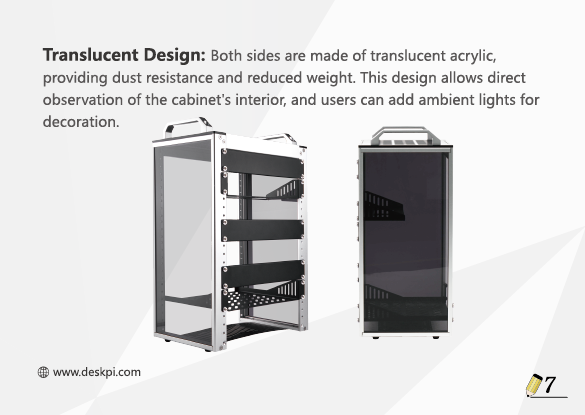

Translucent Smoked Acrylic Side Panels​
Both side walls are made of tinted smoked acrylic panels, providing dust resistance, lightweight handling, and a clear visual window for internal RGB and LED status indicators.
Tinted acrylic side panels for dust protection and aesthetic visibility

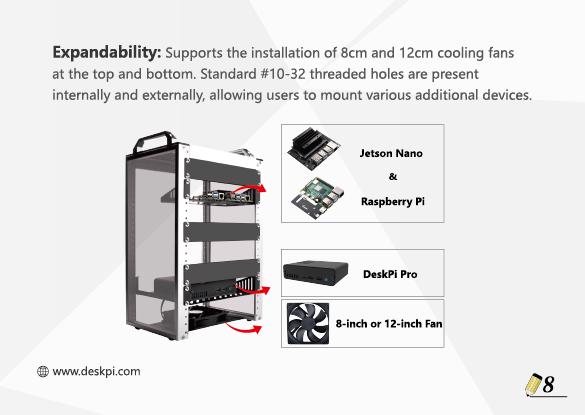

Modular Expandability & Ecosystem​
The modular architecture allows users to mix and match Raspberry Pi 5 clusters, Mini-ITX chassis, CAT6 patch panels, and status displays.
Modular 10-inch ecosystem expansion

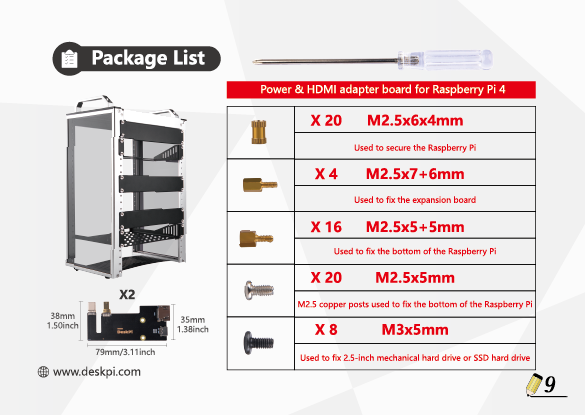

Package Includes​
Included chassis structural beams, acrylic panels, and fastener kit
Layout Configurations & Assembly​

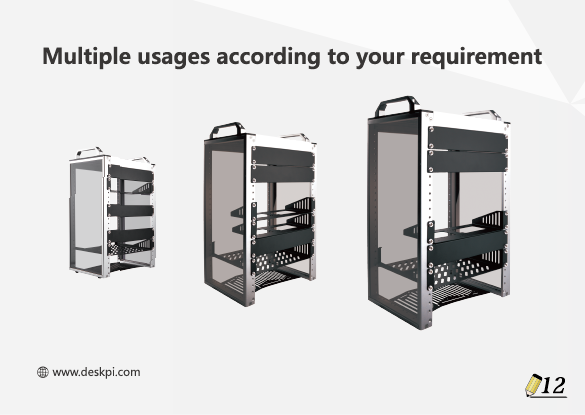

Multi-Device Layout Options​
Flexible unit allocation across network switches, compute nodes, and displays

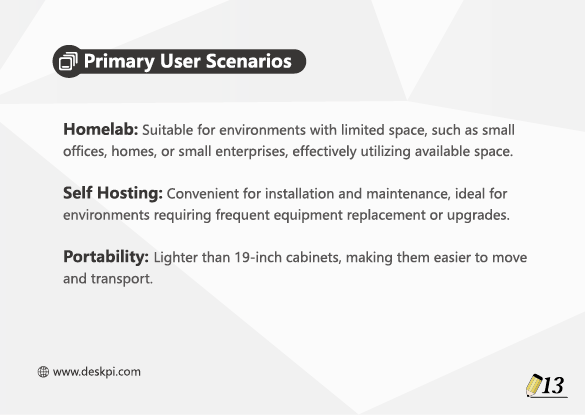

Primary User Scenarios​
Deployments in home labs, personal clouds, and network command centers

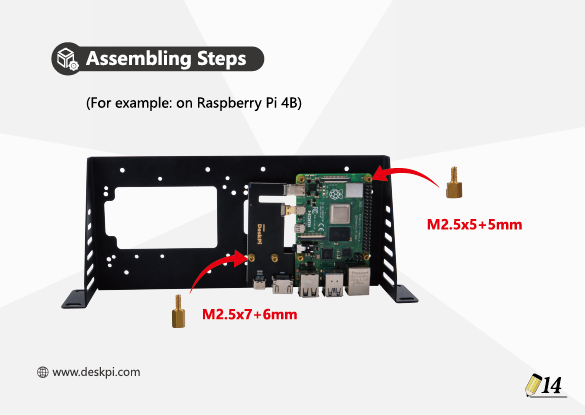

Assembly Steps​
Step-by-step structural assembly flow
📺 DeskPi RackMate T1 Official Video Guide
Recommended Modular Accessories​
Enhance your 8U cabinet with official DeskPi 10-inch accessories:
| Accessory | SKU | Form Factor | Purpose | Documentation |
|---|---|---|---|---|
| 2U PCIe NVMe Mount | DP-0046 | 2U | Dual Raspberry Pi 5 with independent NVMe slots | DP-0046 |
| 1U PCIe NVMe Mount | DP-0039 | 1U | Raspberry Pi 5 with high-speed NVMe storage | DP-0039 |
| DC PDU Lite 7-CH | DP-0042 | 0.5U | Centralized 12V/5V DC power distribution | DP-0042 |
| Cable Management 3 D-Rings | DP-0044 | 0.5U | Clean patch cord routing under switches | DP-0044 |
| Cable Entry Brush Panel | DP-0055 | 1U | Dust barrier and smooth cable ingress | DP-0055 |
| 0.5U Heavy Duty Shelf | DP-0056 | 0.5U | Heavy Mini-PCs, UPS, and backup drives | DP-0056 |
| 10-inch Mini-PC Tray | DP-0073 | 1U | Mini-ITX boards and mini computers | DP-0073 |
| 12-Port CAT6 Patch Panel | DP-0034 | 0.5U / 1U | Keystone patch routing | DP-0034 |
For the complete catalog, visit the RackMate Accessories Comprehensive Overview or plan your stack with the RackMate 8U Build Guide.
