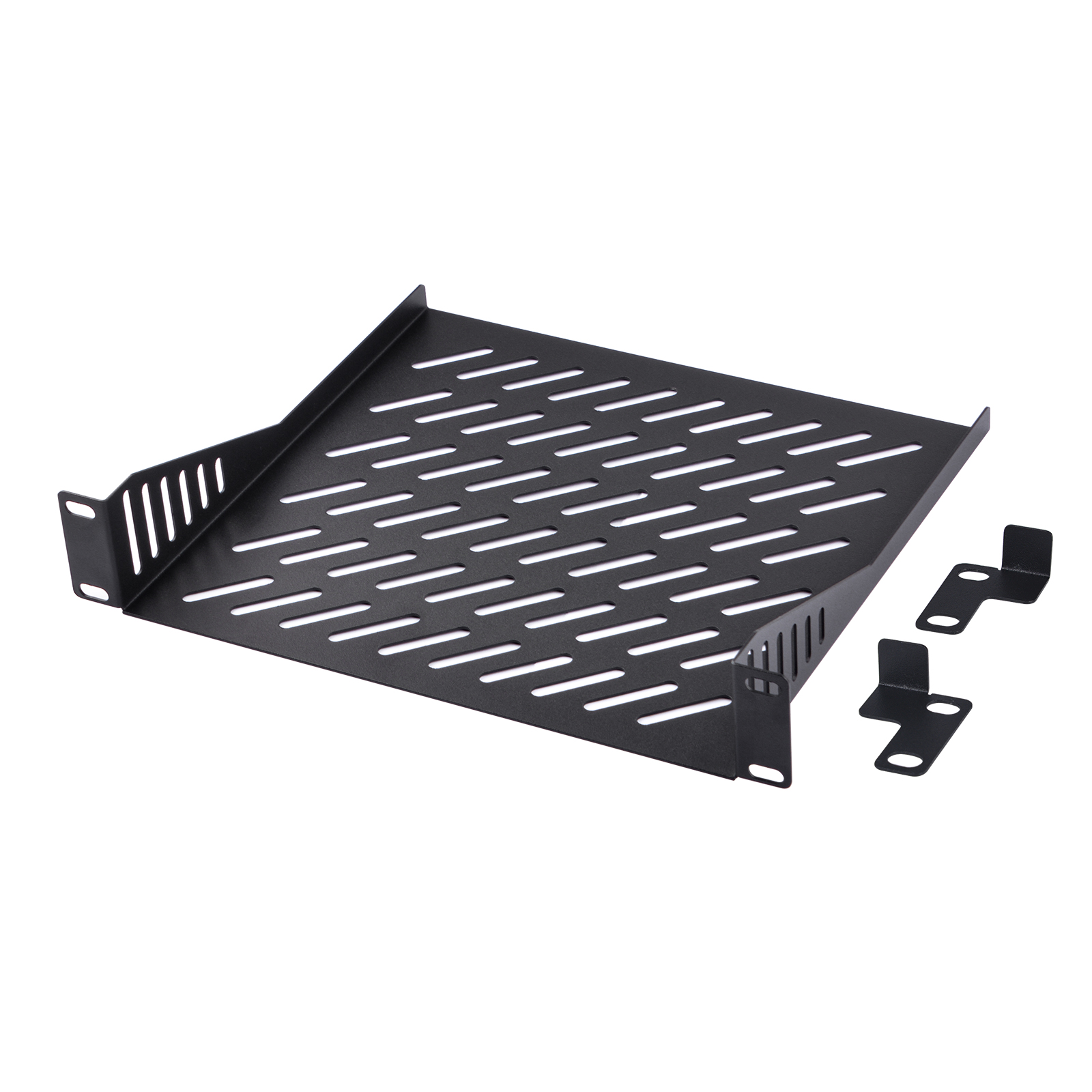

DeskPi RackMate 10-inch 1U Rack Shelf (DP-0031)
SKUDP-0031
Height / Form Factor1U · 10-Inch Rack Mount
Tray Depth200 mm (7.87 in) Cantilever Base
VentilationPerforated Slotted Airflow Floor
Description

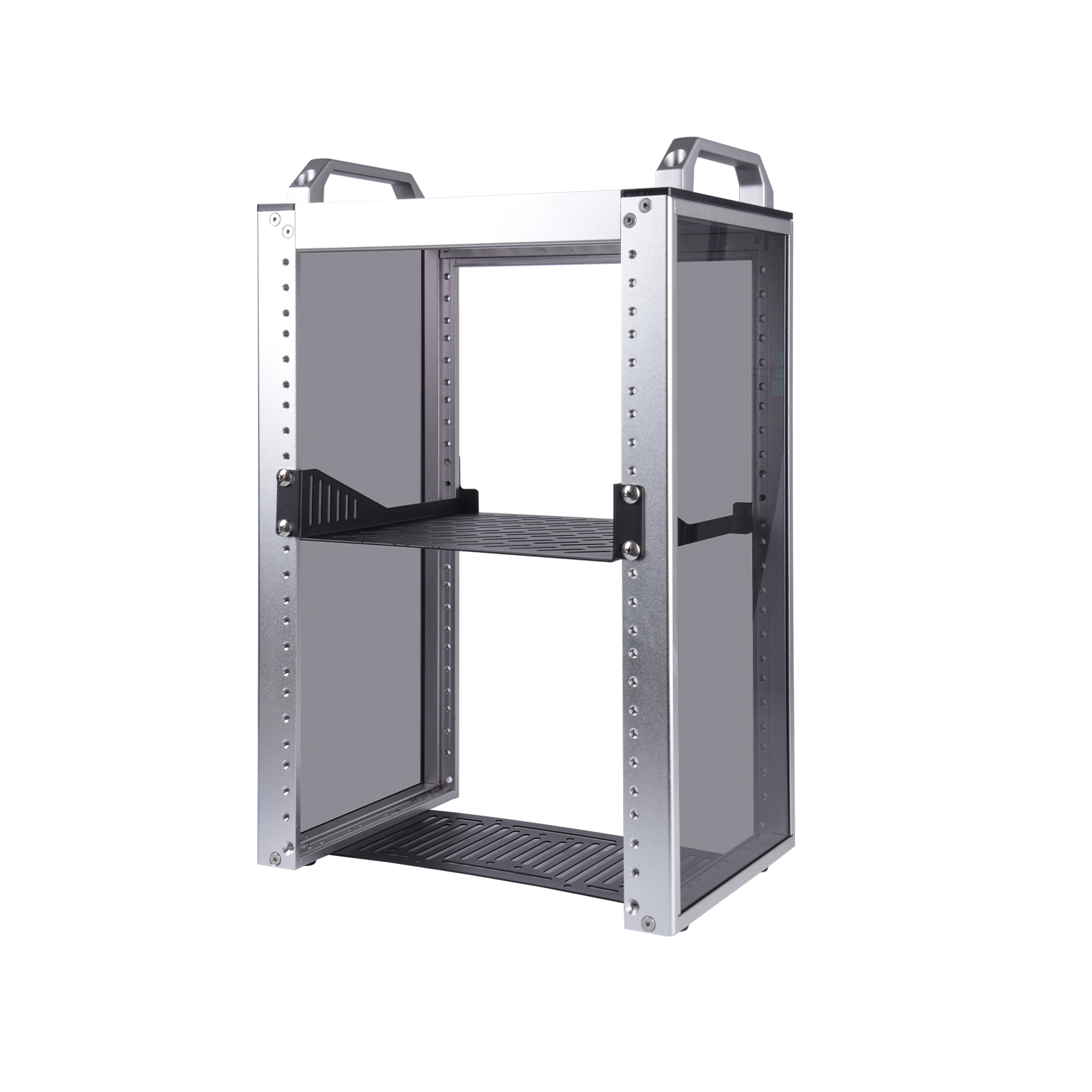

The DeskPi RackMate 10-inch 1U Rack Shelf (DP-0031) is a universal cantilever equipment tray designed for mounting non-rackmount devices inside 10-inch rack cabinets, such as the DeskPi RackMate T1 and RackMate T0.
With its solid cold-rolled steel construction and ventilated slotted base, it securely supports compact network switches, mini-PCs, external hard drives, power supplies, and AV equipment while maintaining unobstructed convective airflow.
Key Features
- Standard 10-Inch 1U Form Factor: Fits any standard 10-inch server rack or mini cabinet.
- Ventilated Airflow Design: Ventilated shelf floor maximizes passive heat dissipation for hot-running network switches and mini-PCs.
- Sturdy Metal Construction: Durable metal build with black powder coating supports non-rackmount peripherals with minimal flexing.
- Rear Support Brackets: Additional rear bracing keeps the cantilever tray stable under load.
- Includes Fasteners: Shipped with required mounting screws and nylon spacers.
Technical Specifications
| Specification | Details |
|---|---|
| Model SKU | DP-0031 |
| Form Factor | 10-Inch Rack Mount (1U Height) |
| Overall Width | 250 mm (9.84 in) |
| Internal Width | 212 mm (8.34 in) |
| Shelf Depth | 200 mm (7.87 in) |
| Height | 43 mm (1.69 in) |
| Material | SPCC Cold-Rolled Steel |
| Cabinet Compatibility | RackMate T0 and RackMate T1 |

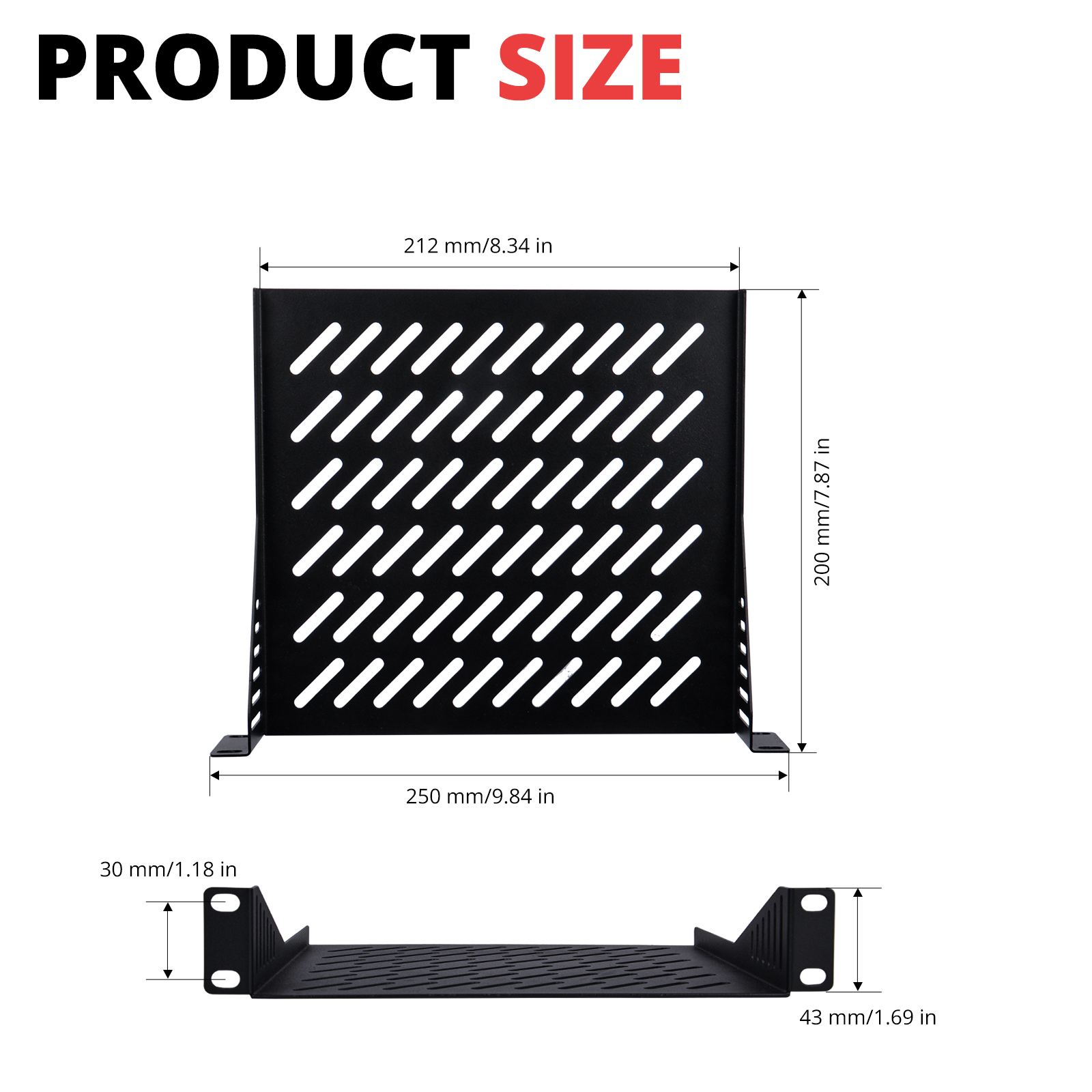

Product physical dimensions and rail mounting pitch
Compatibility Notice
The DP-0031 shelf is not compatible with the DeskPi RackMate T2.
Frequently Paired Accessories
| Accessory | SKU | Form Factor | Recommended Pairing |
|---|---|---|---|
| 1U Blank Panel | DP-0032 | 1U | Fill adjacent unused rack slots to direct airflow |
| 0.5U Cable Management Panel | DP-0044 | 0.5U | Neatly bundle power and network cables from shelf devices |
| 0.5U Heavy Duty Shelf | DP-0056 | 0.5U | Ultra-compact alternative shelf for smaller routers |
| DeskPi RackMate T1 | DP-0022 | 8U Cabinet | Enclosed desktop homelab server rack |
