DeskPi RackMate 10-inch 0.5U Rack Shelf (DP-0041)
SKUDP-0041
Height / Form Factor0.5U · 10-Inch Rack Mount
Tray Depth200 mm (7.87 in) Mounting Platform
VentilationSlotted Openings for Airflow
Description

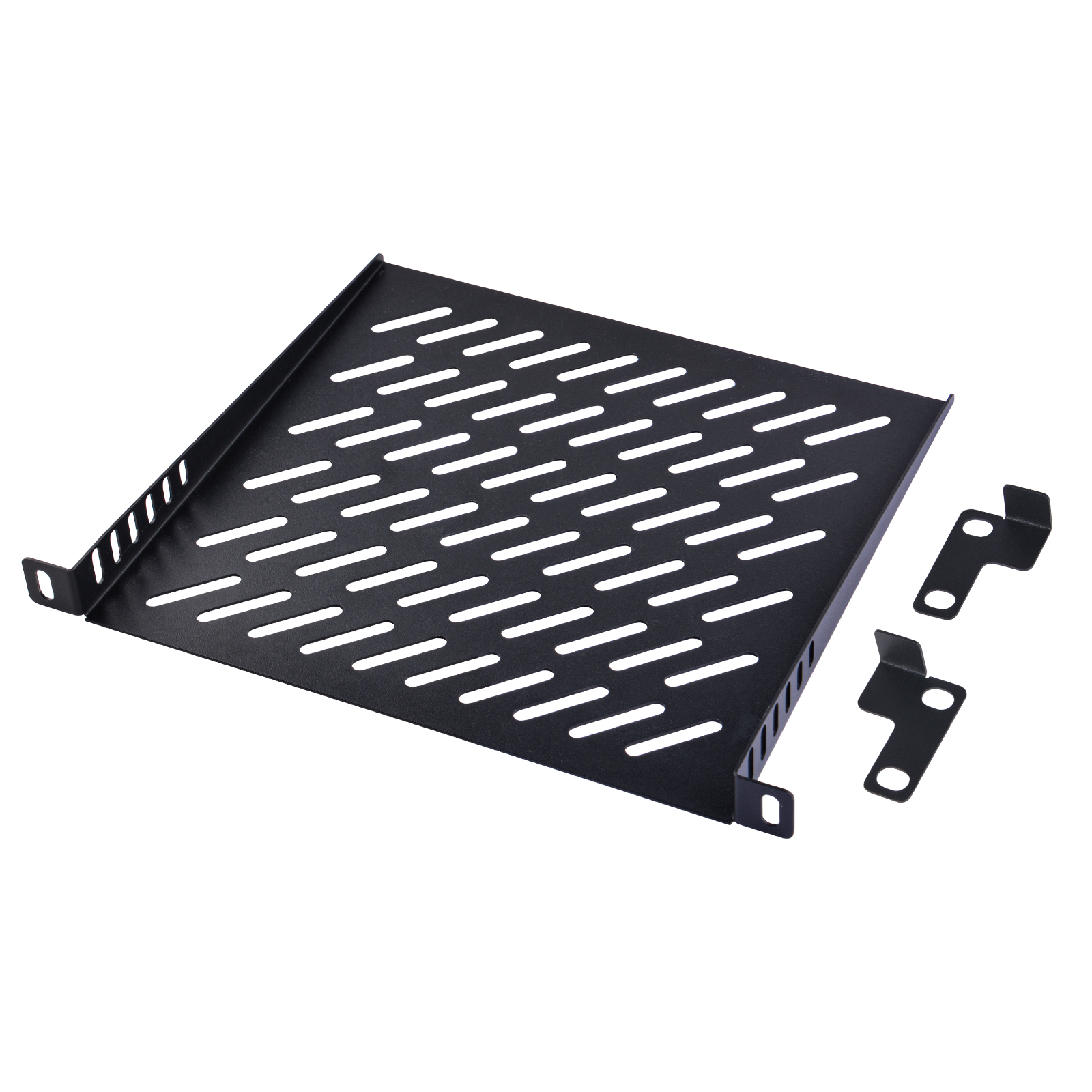

The DeskPi RackMate 10-inch 0.5U Rack Shelf (DP-0041) provides a mounting platform for compact devices that do not support direct rack installation inside 10-inch rack cabinets such as the DeskPi RackMate T0 and RackMate T1.
Its low-profile 0.5U height preserves vertical rack space, while the ventilation openings in the shelf floor maintain airflow around the installed equipment.
Key Features
- Standard 10-Inch 0.5U Form Factor: Occupies only half a rack unit, leaving adjacent space free for other accessories.
- Mounting Platform for Non-Rackmount Devices: Gives compact devices without rack ears a secure platform inside the rack.
- Ventilation Openings: Slotted cutouts in the shelf floor improve airflow around the installed equipment.

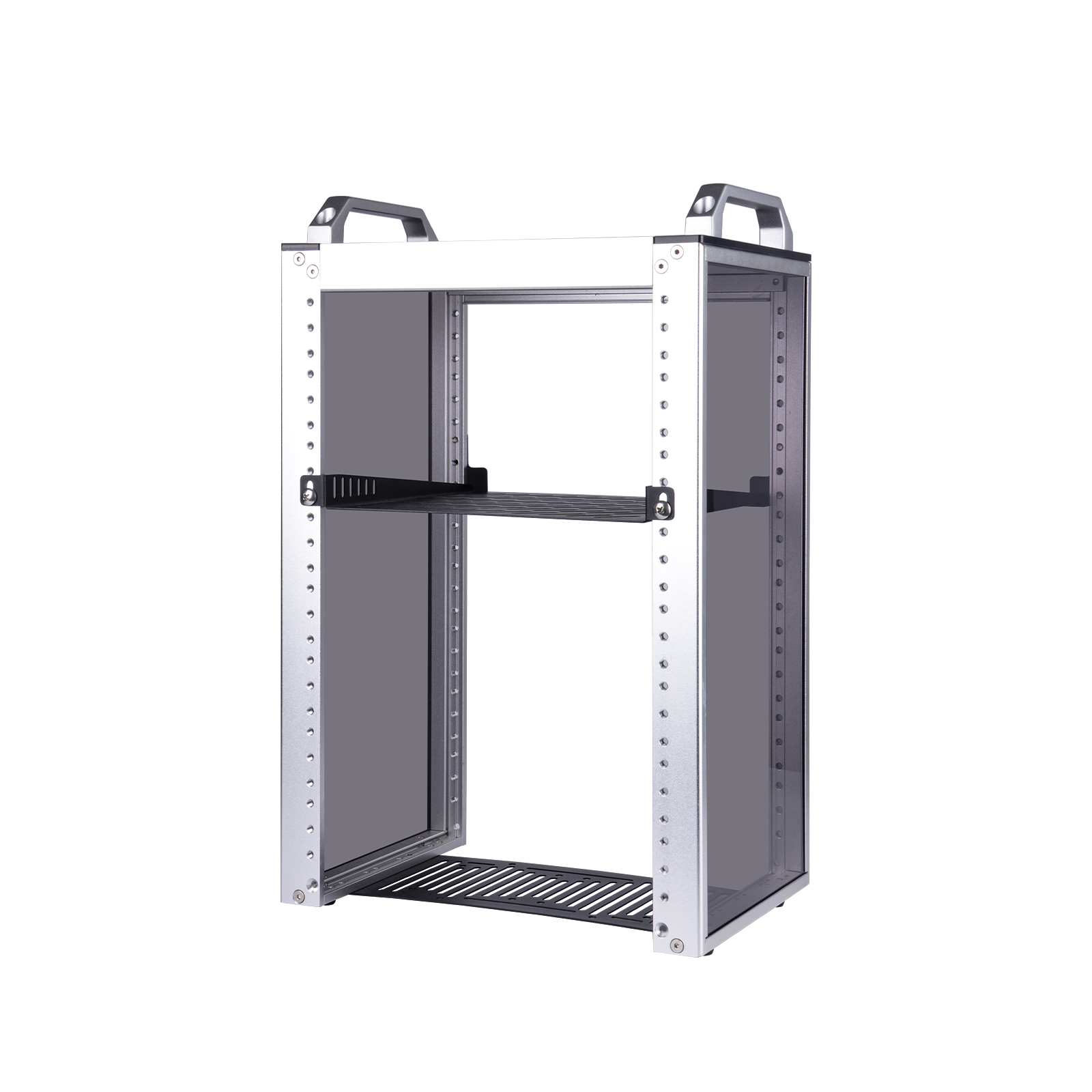

- RackMate T0 / T1 Compatible: Mounts into the DeskPi RackMate T0 and T1 10-inch racks.
Technical Specifications
| Specification | Details |
|---|---|
| Model SKU | DP-0041 |
| Form Factor | 10-Inch Rack Mount (0.5U Height) |
| Overall Width (with Ears) | 250 mm (9.84 in) |
| Platform Dimensions | 212 mm × 200 mm (8.34 in × 7.87 in) |
| Height | 19 mm (0.75 in) |
| Cabinet Compatibility | RackMate T0 and RackMate T1 |

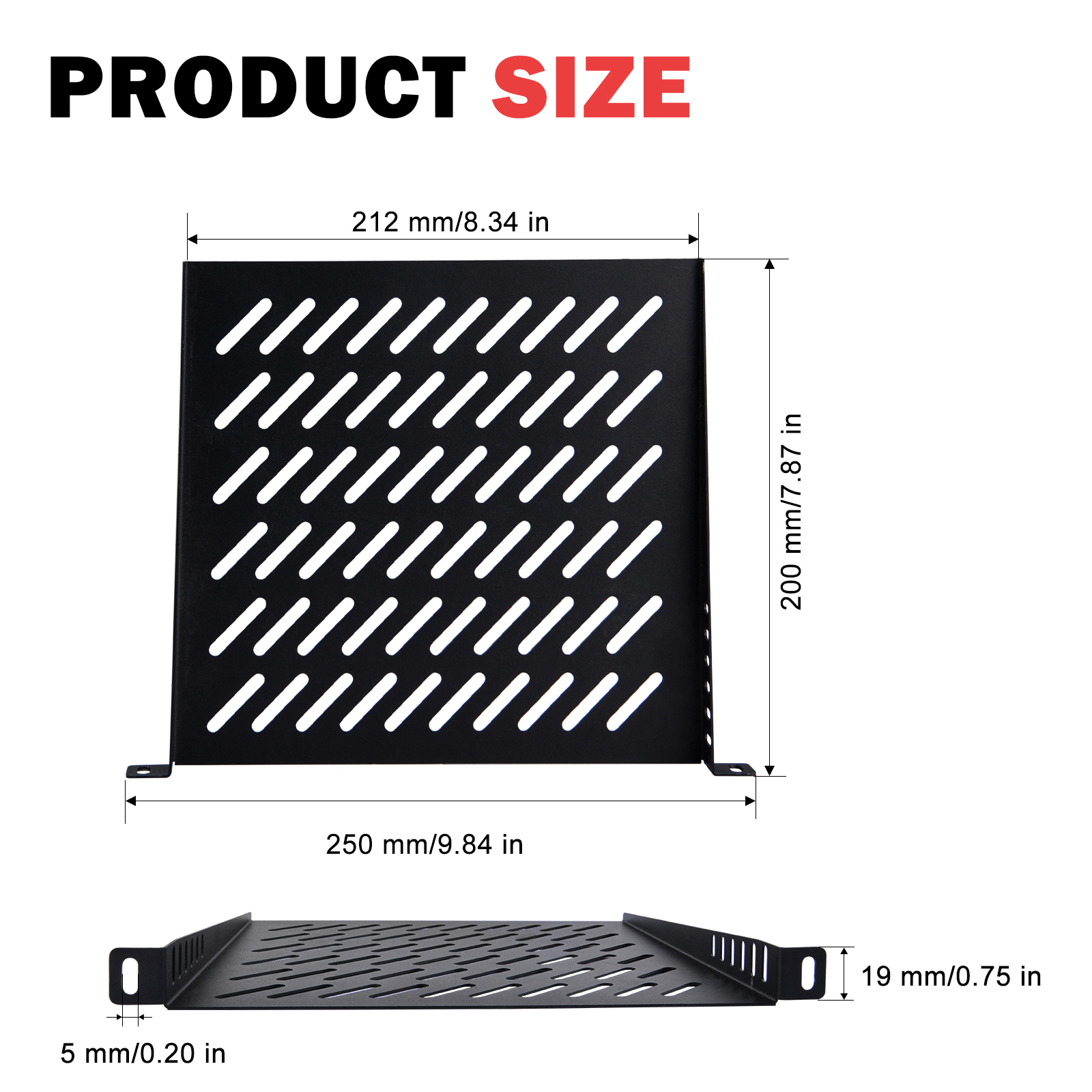

Product physical dimensions and mounting layout
Compatibility Notice
The DP-0041 shelf is not compatible with the DeskPi RackMate T2.
Frequently Paired Accessories
| Accessory | SKU | Form Factor | Recommended Pairing |
|---|---|---|---|
| 1U Rack Shelf | DP-0031 | 1U | Full-height alternative tray for taller equipment |
| 0.5U Heavy Duty Shelf | DP-0056 | 0.5U | Reinforced shelf for heavier loads |
| 0.5U Cable Management Panel | DP-0044 | 0.5U | Neatly bundle power and network cables from shelf devices |
| DeskPi RackMate T1 | DP-0022 | 8U Cabinet | Enclosed desktop homelab server rack |
