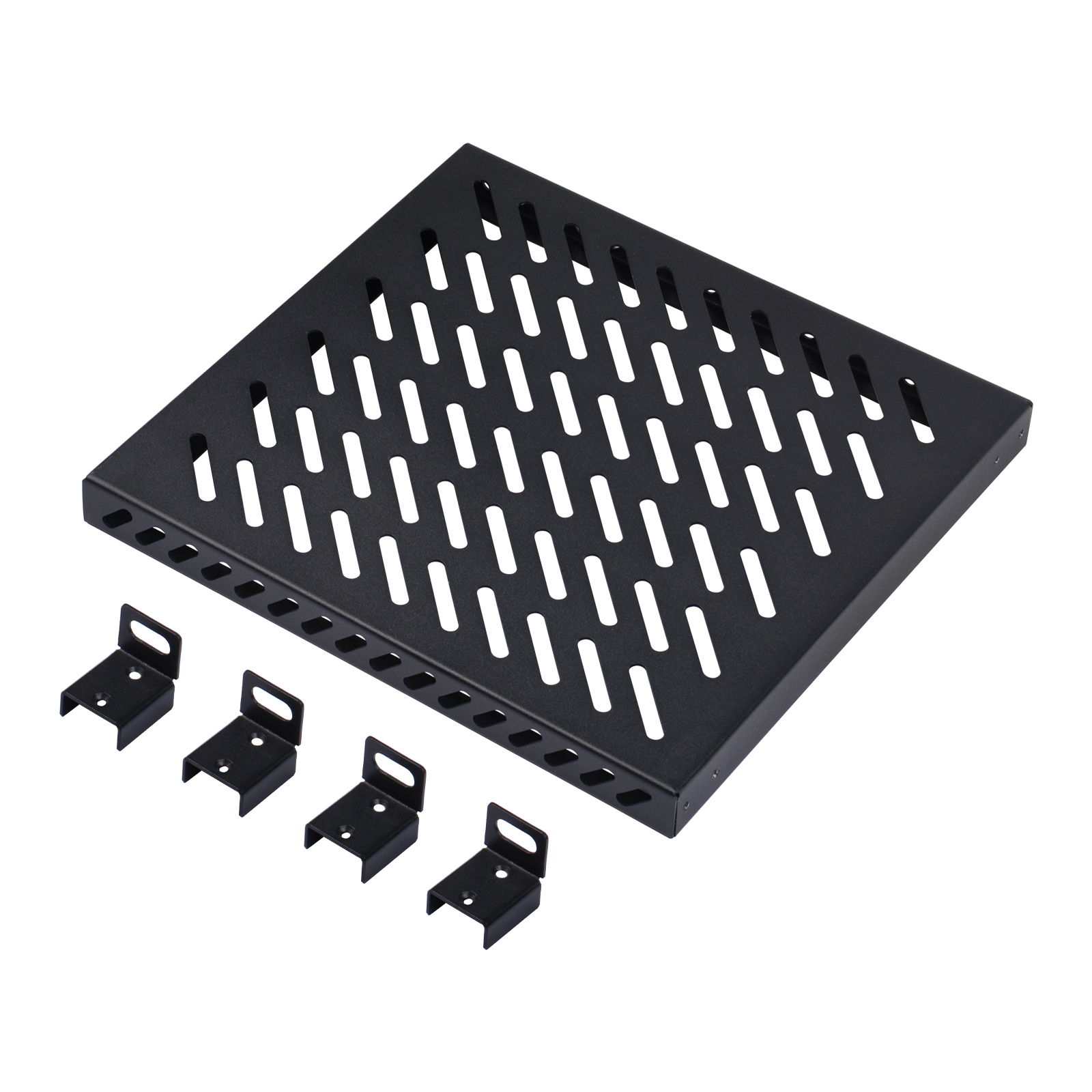

DeskPi Rackmate 10-inch 0.5U Heavy Duty Rack Shelf for 10 inch server (DP-0056)

DP-0056DC09

SKUDP-0056
Height / Form Factor0.5U · 10-Inch Rack Mount
Material & Gauge1.5 mm SPCC Reinforced Carbon Steel
Cabinet CompatibilityRackMate T0 / T1 & Universal 10" Racks

🛒 Buy 0.5U Heavy Duty Rack Shelf on Official Store →

Description​

The DeskPi RackMate 10-inch 0.5U Heavy Duty Rack Shelf (DP-0056) is engineered specifically for supporting non-rackmount networking gear, power adapters, Intel NUCs, or external backup drives inside 10-inch desktop server cabinets.

Featuring a low-profile 0.5U cantilever design with 1.5 mm cold-rolled steel framing and hexagonal ventilation perforations, it preserves vertical rack space while bearing significant load without chassis flex.

Key Features​

  • Space-Saving 0.5U Profile: Allows placing auxiliary power bricks, switches, or mini devices between equipment bays without sacrificing a full 1U space.
  • Reversible Dual-Sided Installation: Can be mounted in both tray-down (lip up to prevent equipment slide) or tray-up configurations.
  • Enhanced Thermal Perforations: Hexagonal ventilation cutouts optimize convective airflow from bottom intake fans.
  • Rigid Heavy-Duty SPCC Construction: 1.5 mm cold-rolled carbon steel supporting up to 10 kg (22 lbs).
  • Universal Rail Mounting: Conforms to standard 10-inch rack spacing in RackMate T0, T1, and third-party enclosures.

Technical Specifications​

ParameterSpecification
Model SKUDP-0056
Form Factor10-Inch Server Rack Mount (0.5U Height)
Dimensions254 mm × 170 mm × 22.2 mm (10" × 6.7" × 0.87")
Chassis Material1.5 mm SPCC Cold-Rolled Carbon Steel
FinishScratch-Resistant Matte Black Powder Coat
Mounting OrientationReversible (Front & Rear Sides)
CAD DrawingDownload DWG Drawing
DatasheetDownload PDF Datasheet

DP-0056DC02

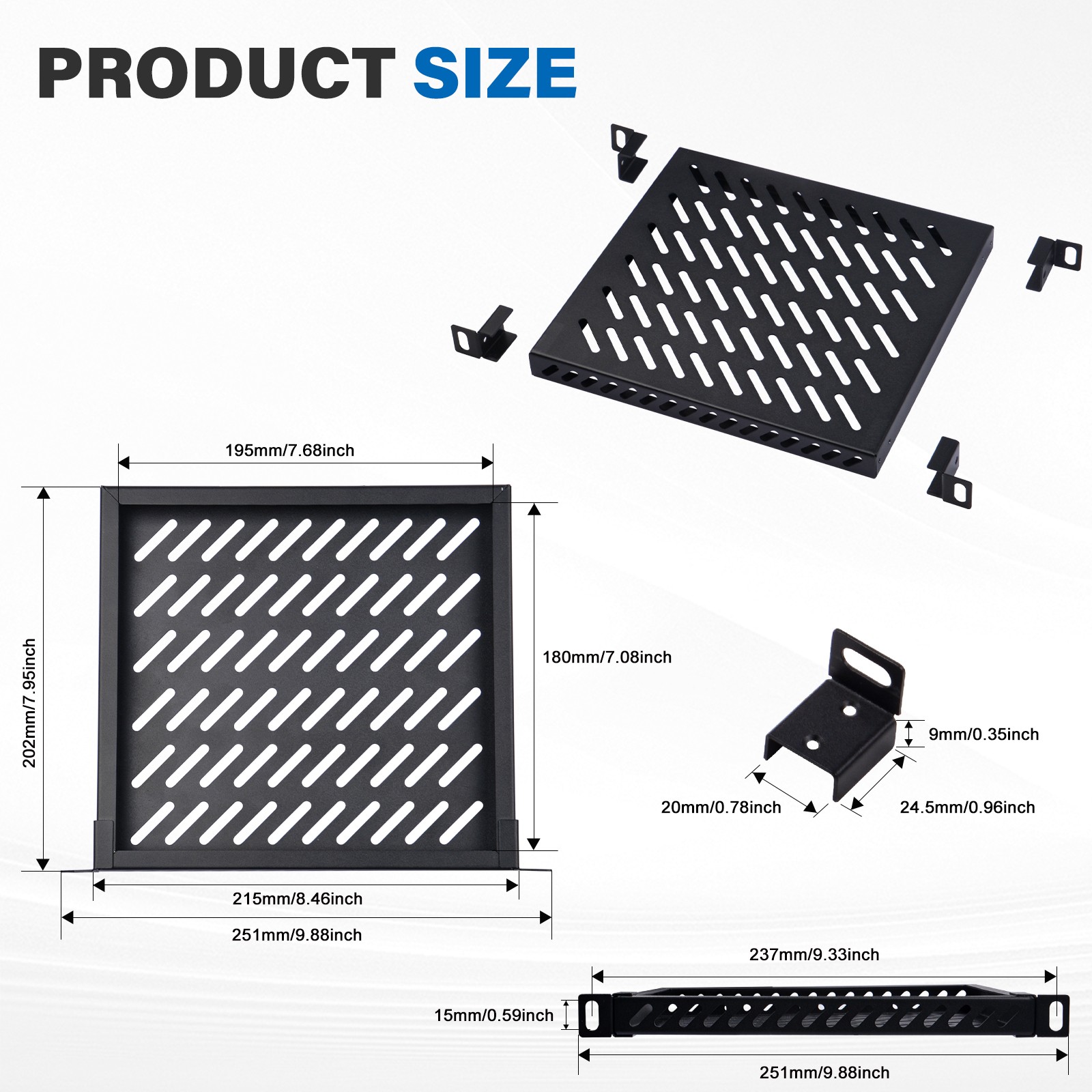

Dimensional specifications and mounting hole layout

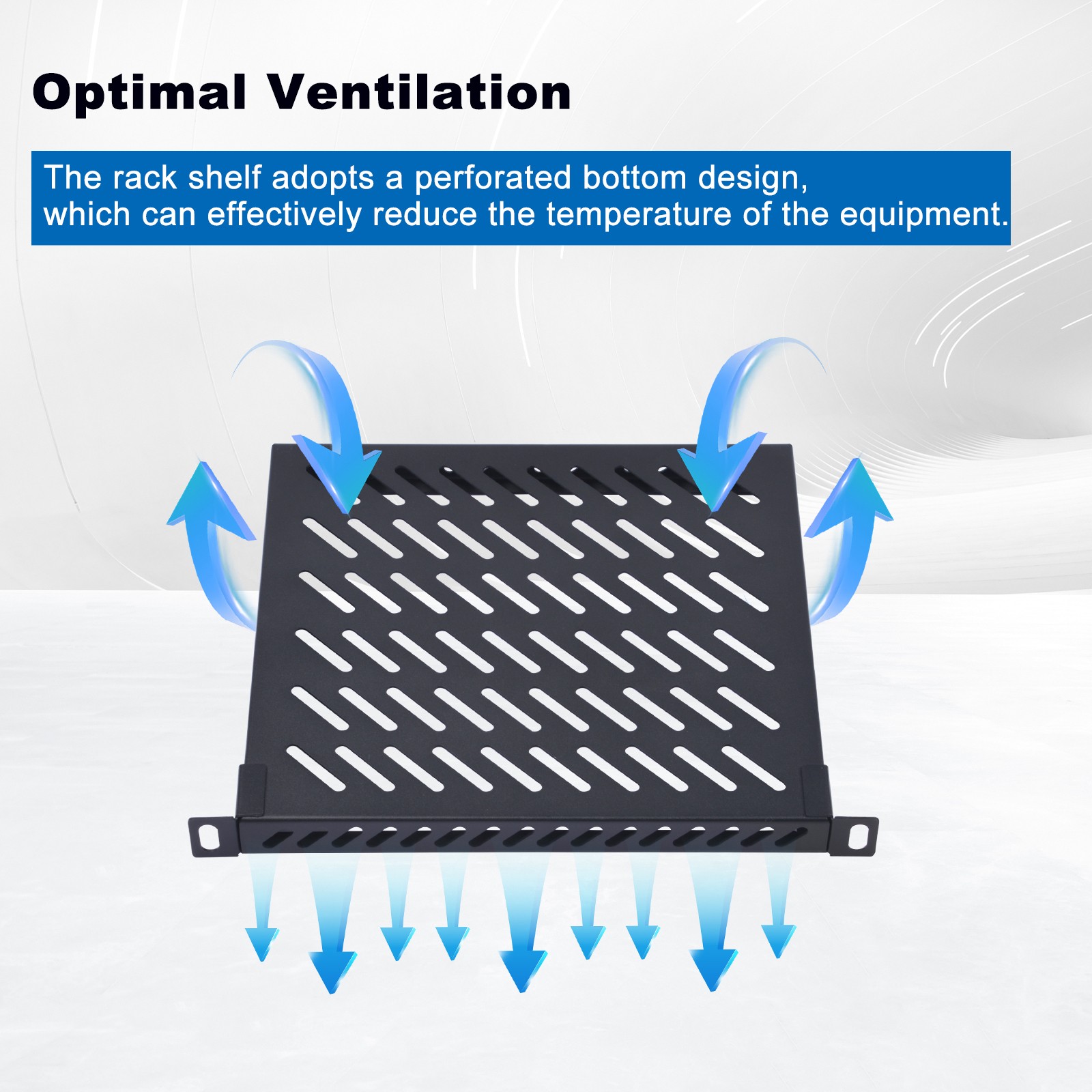

Ventilation Details

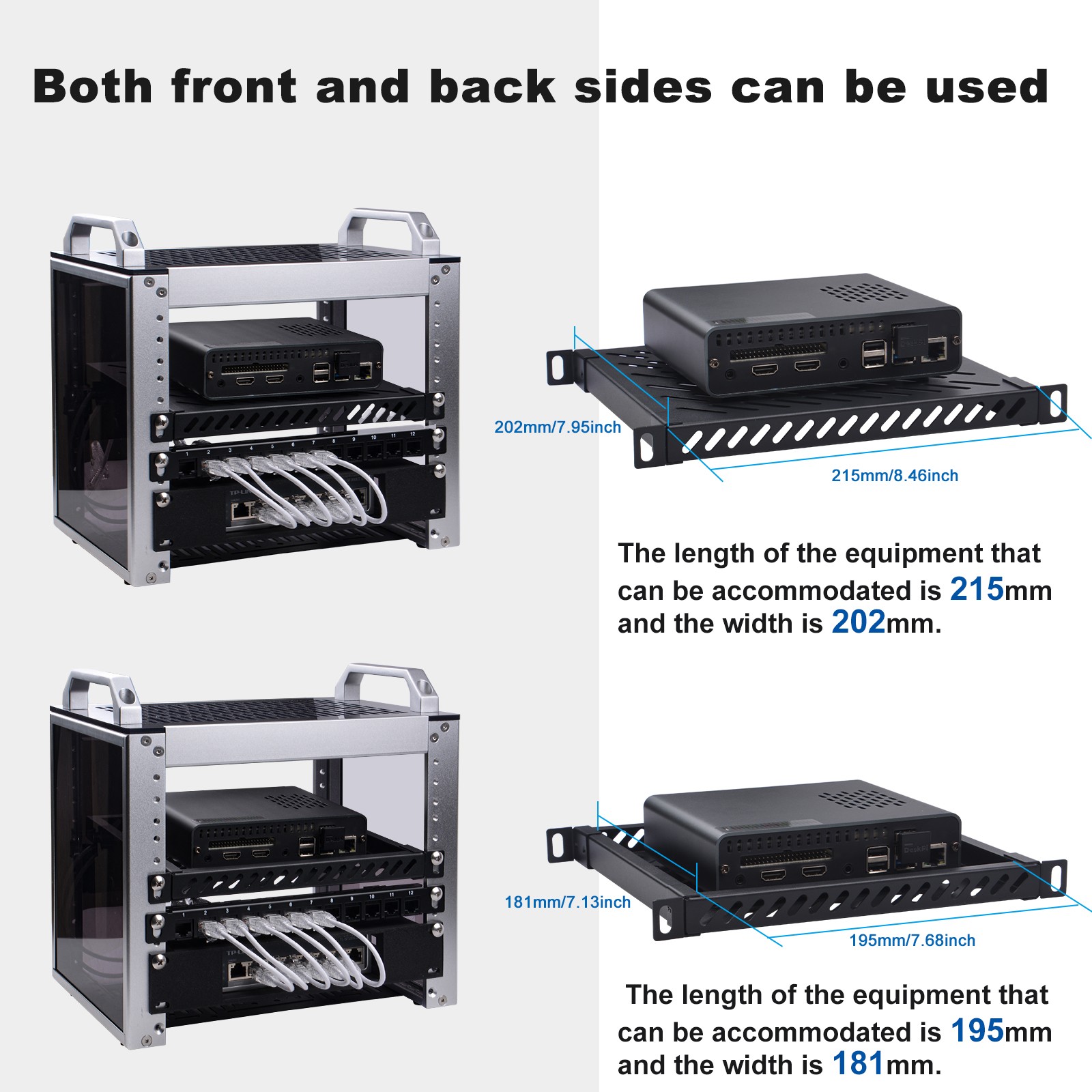

Reversible Installation

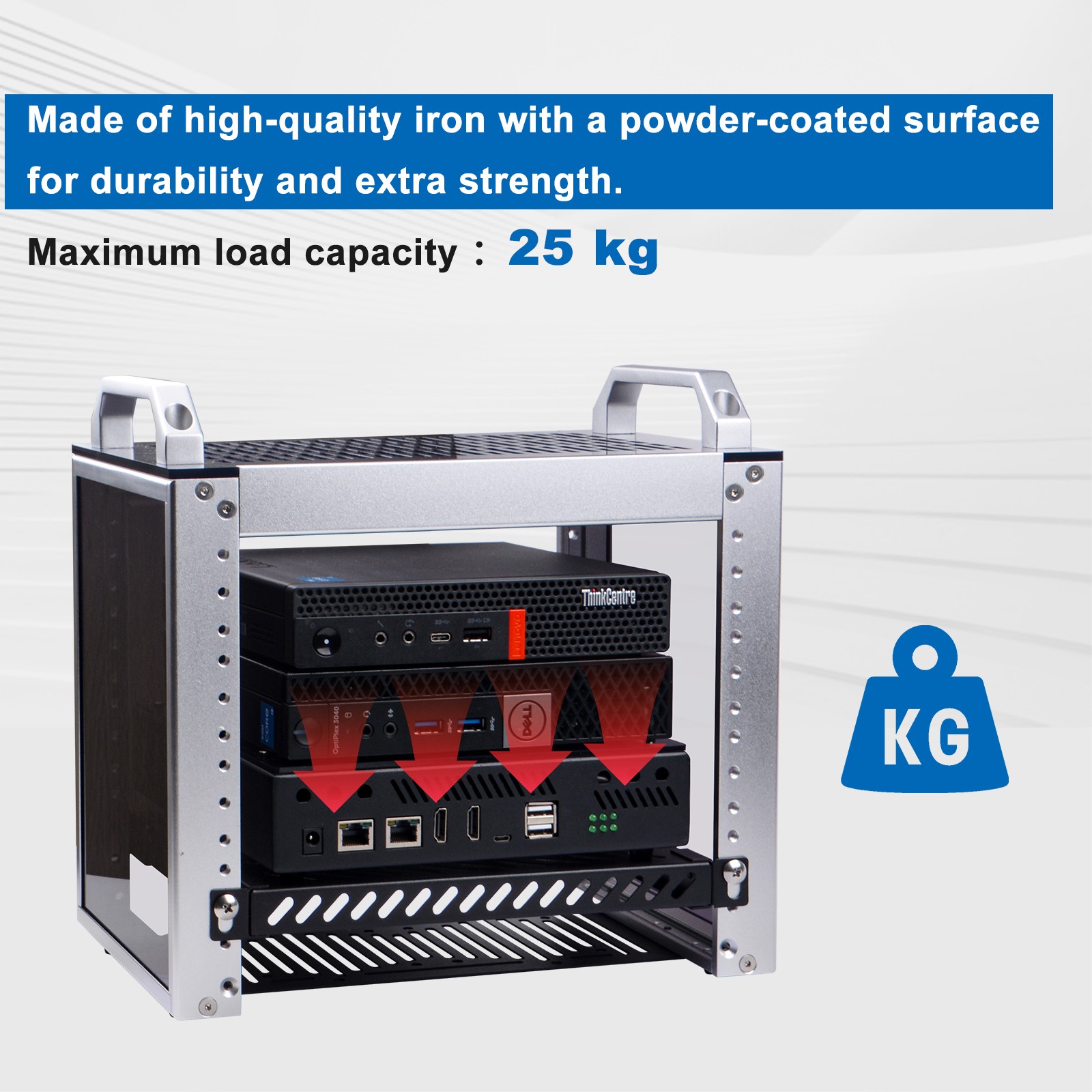

Heavy Duty Scenario

Supporting compact network hardware and power supplies

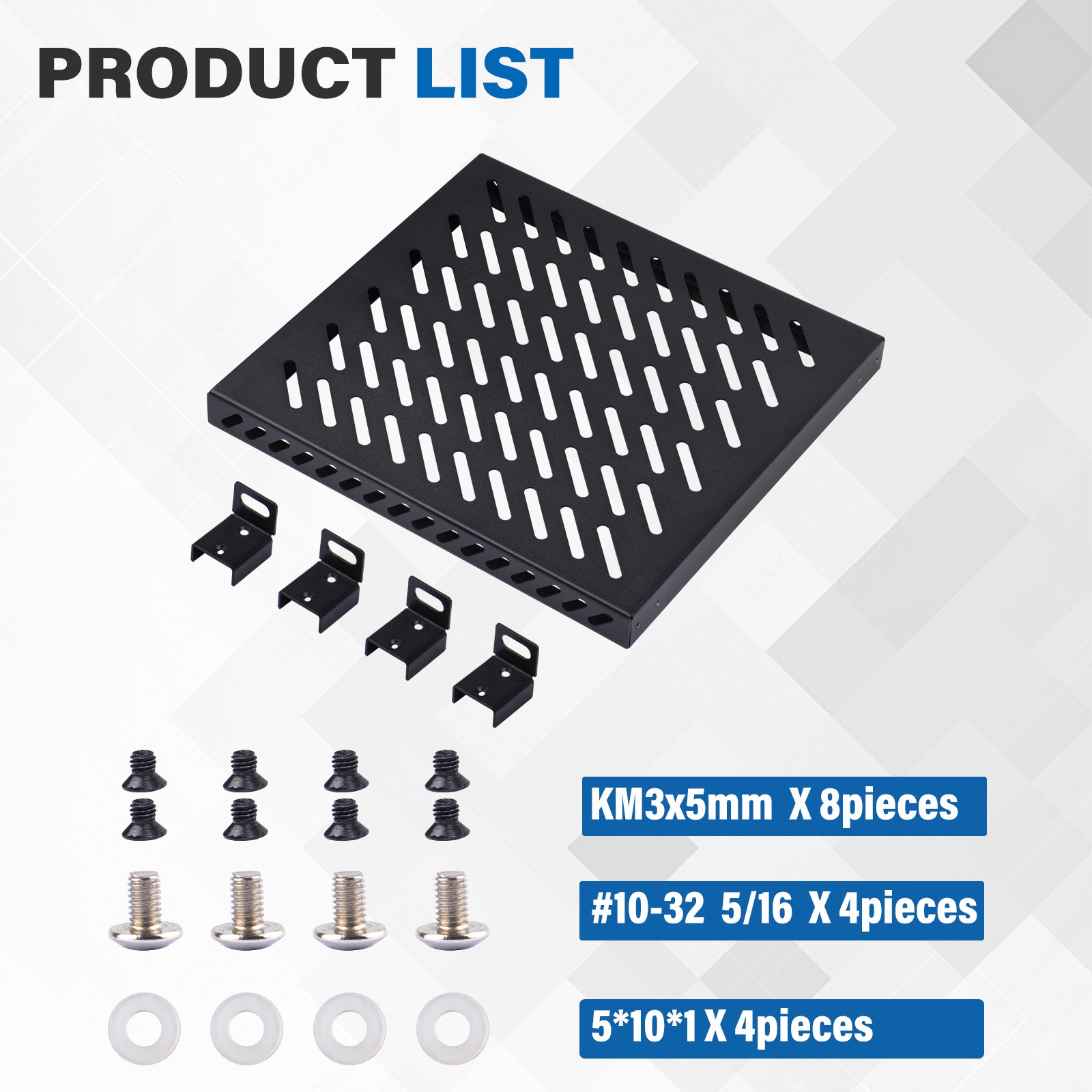

Package Includes​

DP-0056DC03

  • 1 × 10-inch 0.5U Heavy Duty Rack Shelf (DP-0056)
  • 1 × Mounting Screw & Spacer Set

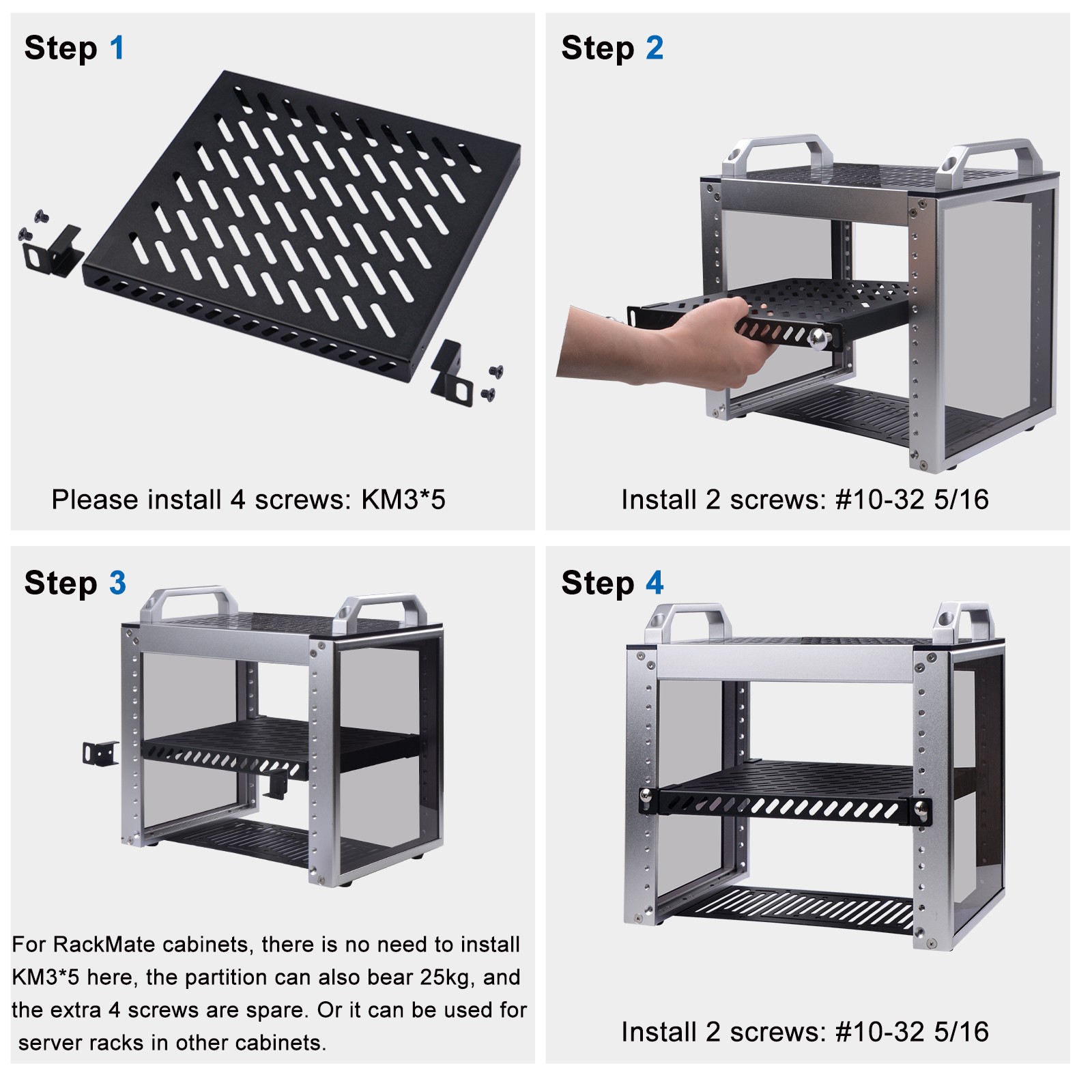

Assembly Instructions​

DP-0056DC07

Fasten shelf brackets securely into the vertical rack rail holes using M4/M5 hardware
