DeskPi 9-inch Touch Screen LCD Display

Product SKU

  • Product Name: DeskPi 9-inch Touch Screen LCD Display
  • SKU: DP-0100

Product Overview

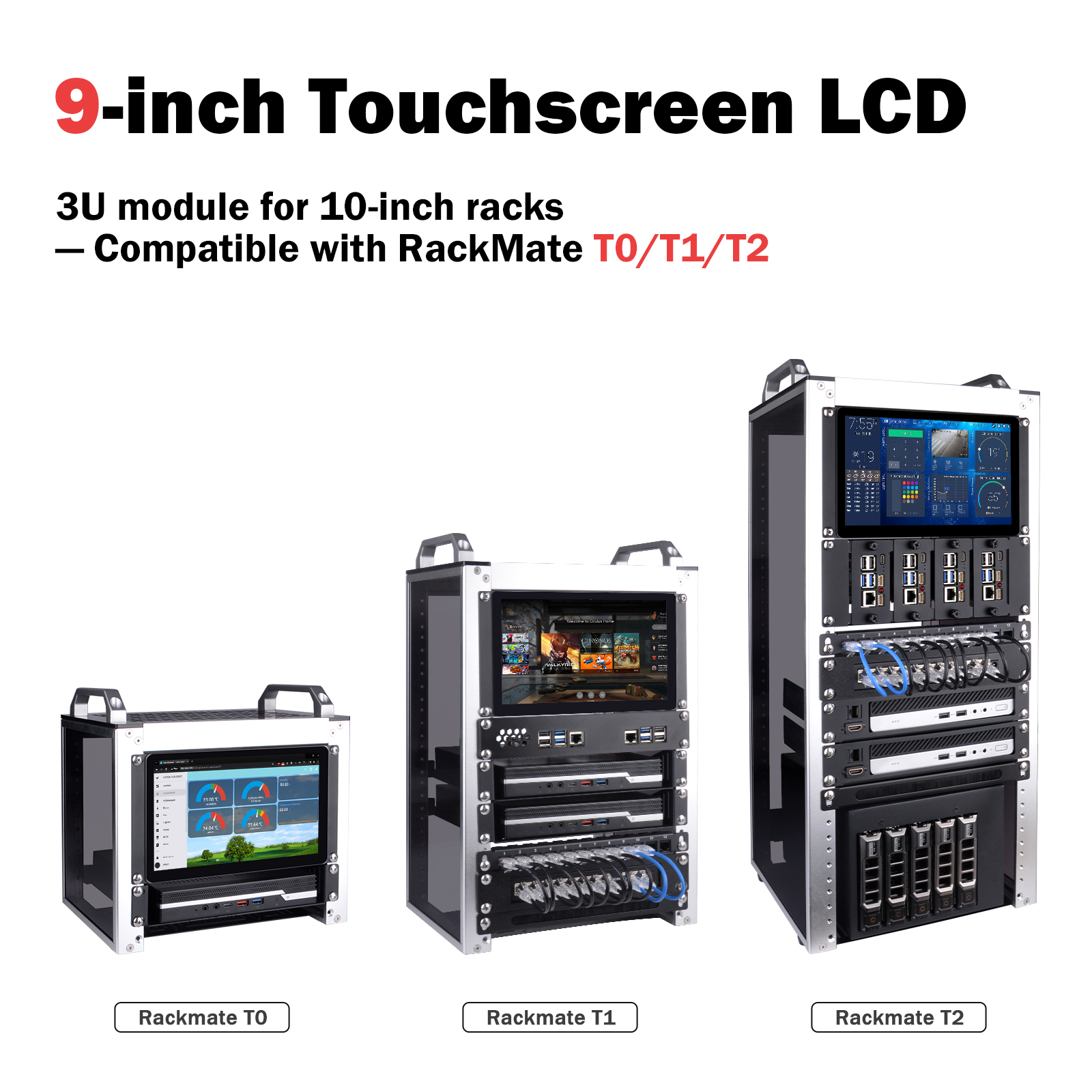

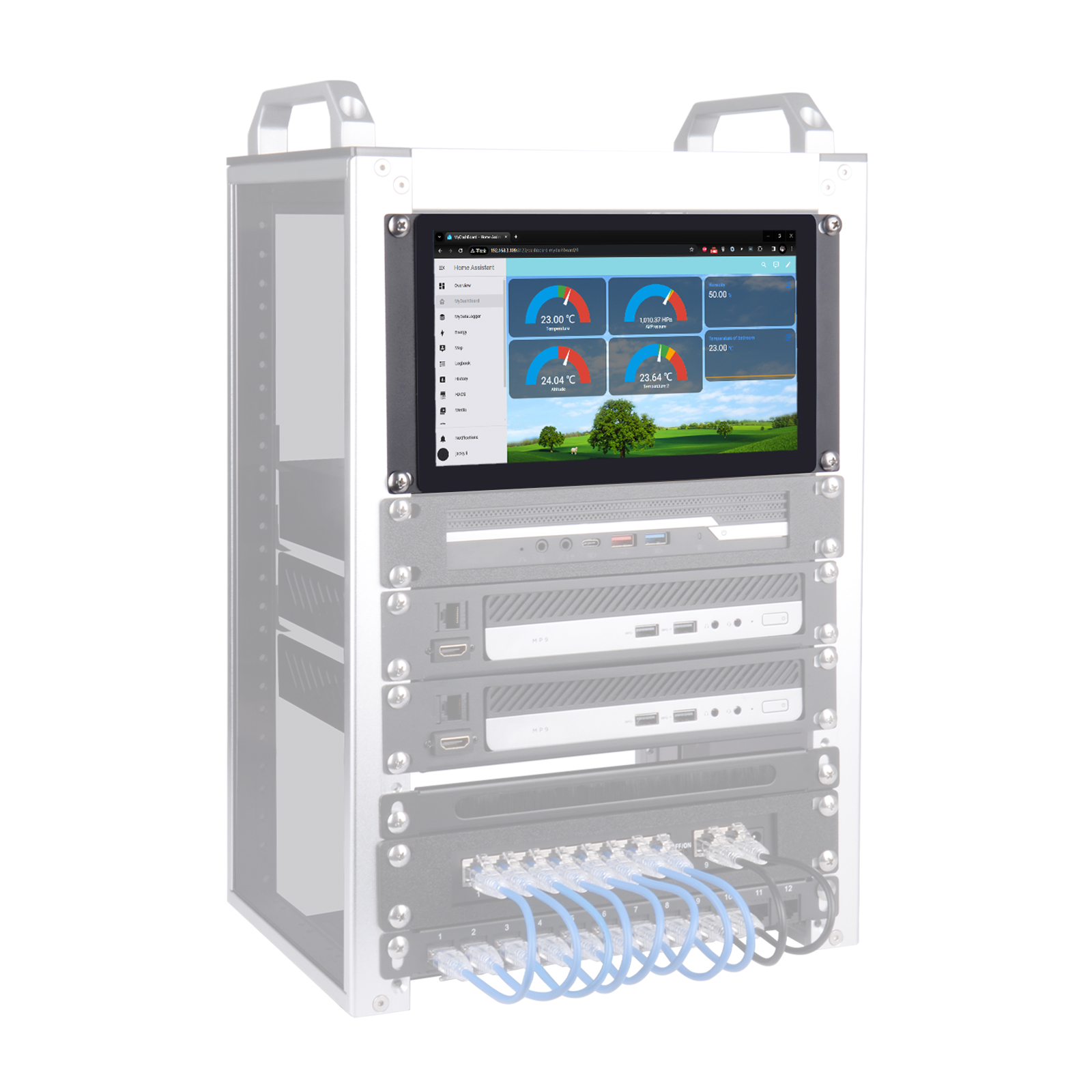

The DeskPi DP-0100 is a 9-inch touch screen LCD display designed specifically for 10-inch racks, compatible with the DeskPi RackMate T0/T1/T2 series server cabinets. Featuring an industrial-grade design with high-resolution display, stable performance, and easy installation, it is ideal for server monitoring, maintenance data management, self-service terminals, HMI (Human-Machine Interface), and embedded applications.

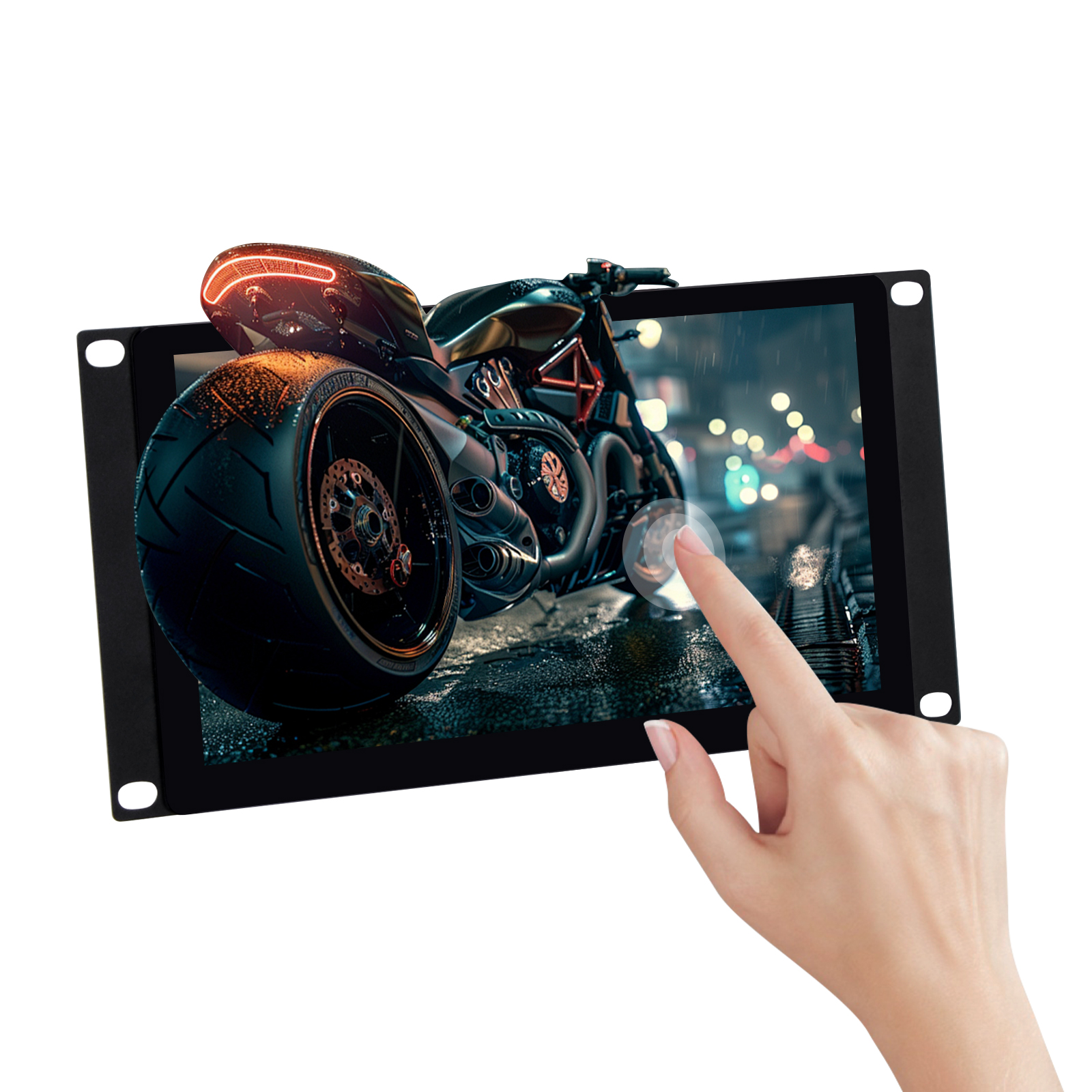

DeskPi DP-0100 9-inch Touch Screen LCD

Product Parameters

Parameter Specification
Model Touch P9.0
Size 9 inches
Resolution 1280 (H) × 720 (V)
Aspect Ratio TFT 16:9
Brightness 500 cd/m²
Contrast Ratio 800:1
Display Colors 16.7M
Viewing Angle 178°
Response Time 10 ms

Product Parameters Table

Touch Function

  • Touch Screen: Capacitive 10-point touch
  • Surface Hardness: ≥ 6H
  • Transmittance: > 95%
  • Touch Life: Over 100 million touches

Smart Features

  • Auto Power-On: Automatically starts when power is connected
  • Standby Mode: Automatically enters standby when no signal is detected

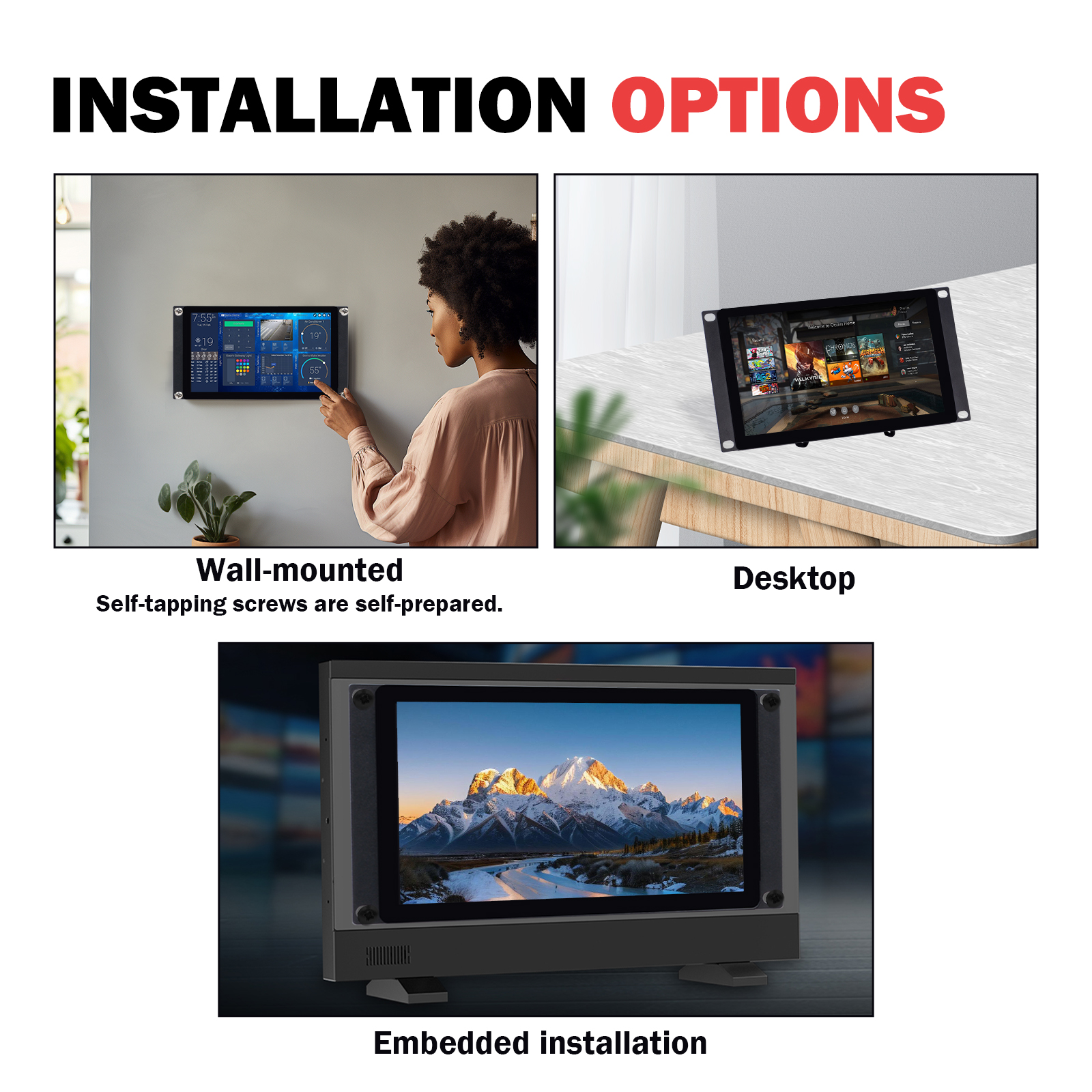

Installation Methods

Supports multiple installation methods: - Wall-mounting - Desktop - Embedded installation

Touch Function Description

⚠️ Important Note for macOS Users

Touch functionality on macOS devices requires additional drivers. By default, the touch screen will NOT respond to touch input on macOS, but the display function works normally.

This issue does NOT exist on Windows and Linux systems — touch and display work out of the box.

If you need to use the touch function on macOS, please contact DeskPi technical support or visit the Wiki for driver installation instructions.

Compatibility

DeskPi

Mainboard Function

Function Specification
Power Consumption Low power, average < 10W
Power Input DC 5V / 2A
Interfaces Type-C1 (DC5V + Touch) / Type-C2 (DC5V) / HDMI / AUX 3.5mm

Mainboard Function Table

Mainboard Function Table

Product Features

Feature Specification
Active Area 198.912 (H) × 111.888 mm (V)
Dimensions 249.97 × 132 × 34.5 mm
Operating Temperature -10°C to +50°C
Storage Temperature -15°C to +60°C
Relative Humidity 5%–95% (non-condensing)

Product Features Table

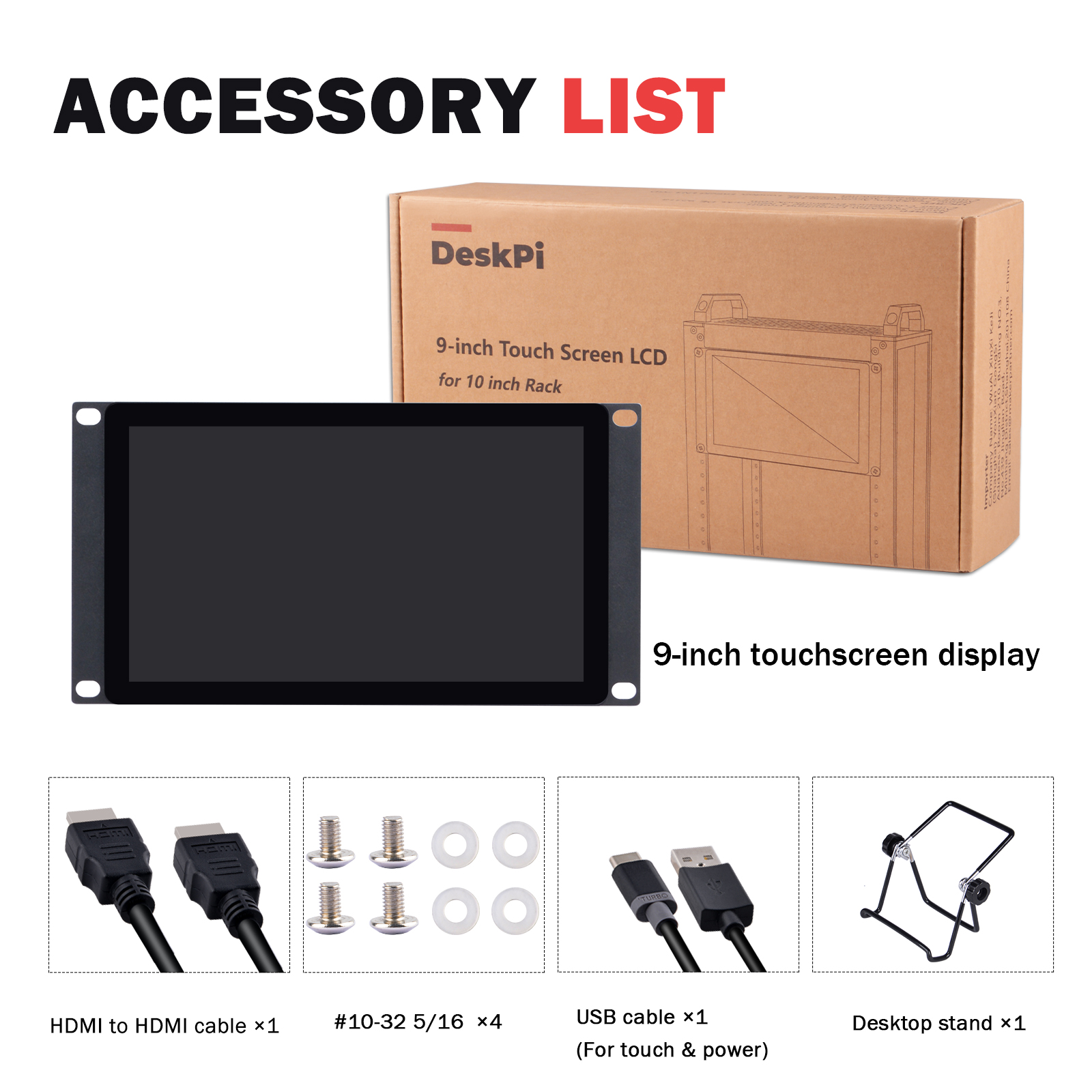

Product List

The package includes the following accessories:

Accessory Quantity
9-inch Touch Screen LCD Display 1 unit
Desktop Stand 1 piece
HDMI to HDMI Cable 1 piece
USB Cable (for touch & power) 1 piece
#10-32 5/16 Screws 4 pieces

Product List

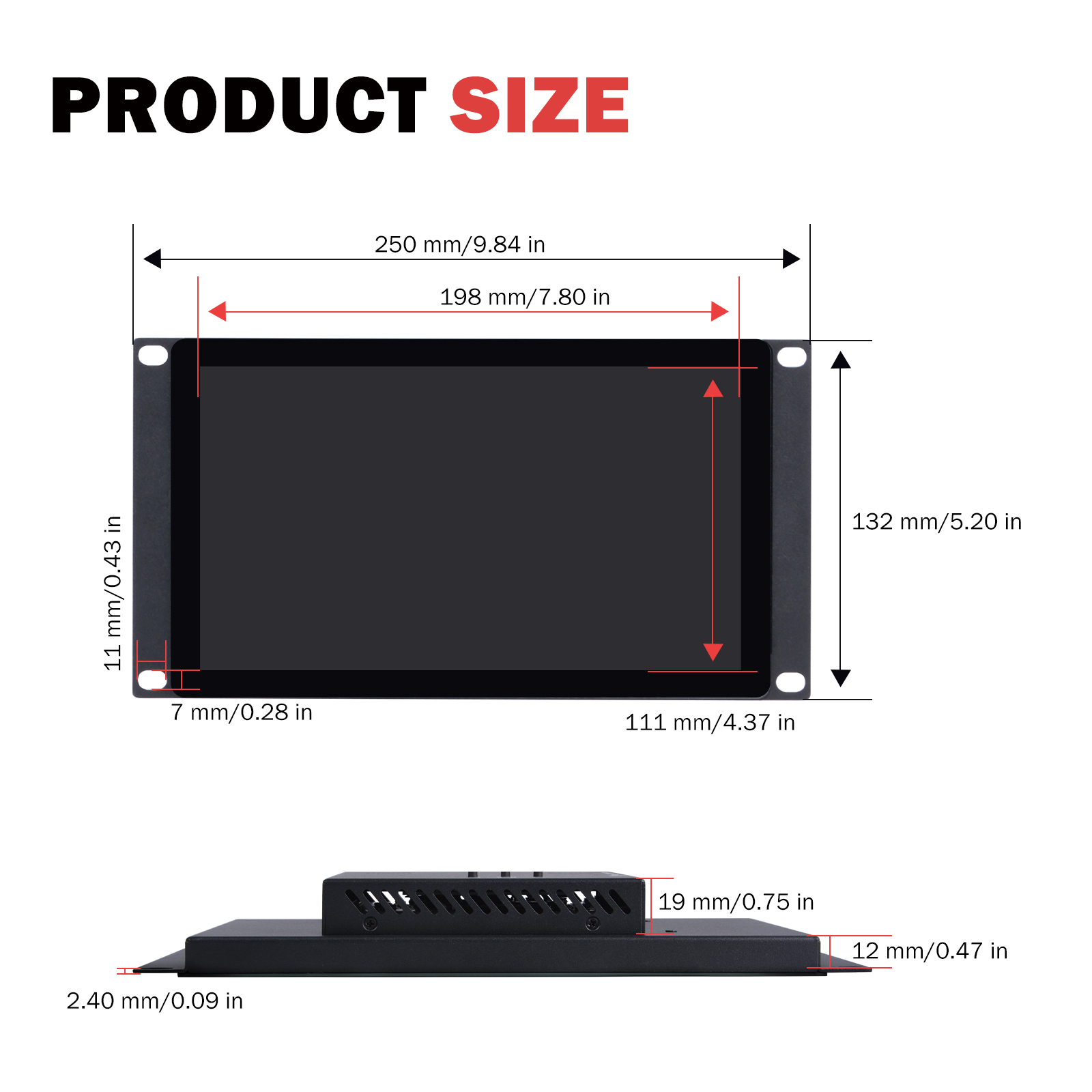

Product Size

Front View Dimensions

Dimension Parameter Value
Overall Width 250 mm / 9.84 in
Overall Height 132 mm / 5.20 in
Display Area Width 219 mm / 8.62 in
Display Area Height 111 mm / 4.37 in
Active Display Width 198 mm / 7.80 in
Mounting Hole Margin (Top/Bottom) 11 mm / 0.43 in
Mounting Hole Margin (Left/Right) 7 mm / 0.28 in

Product Front Size

Side View Dimensions

Dimension Parameter Value
Overall Thickness 12 mm / 0.47 in
Protrusion Height 19 mm / 0.75 in
Panel Thickness 2.40 mm / 0.09 in

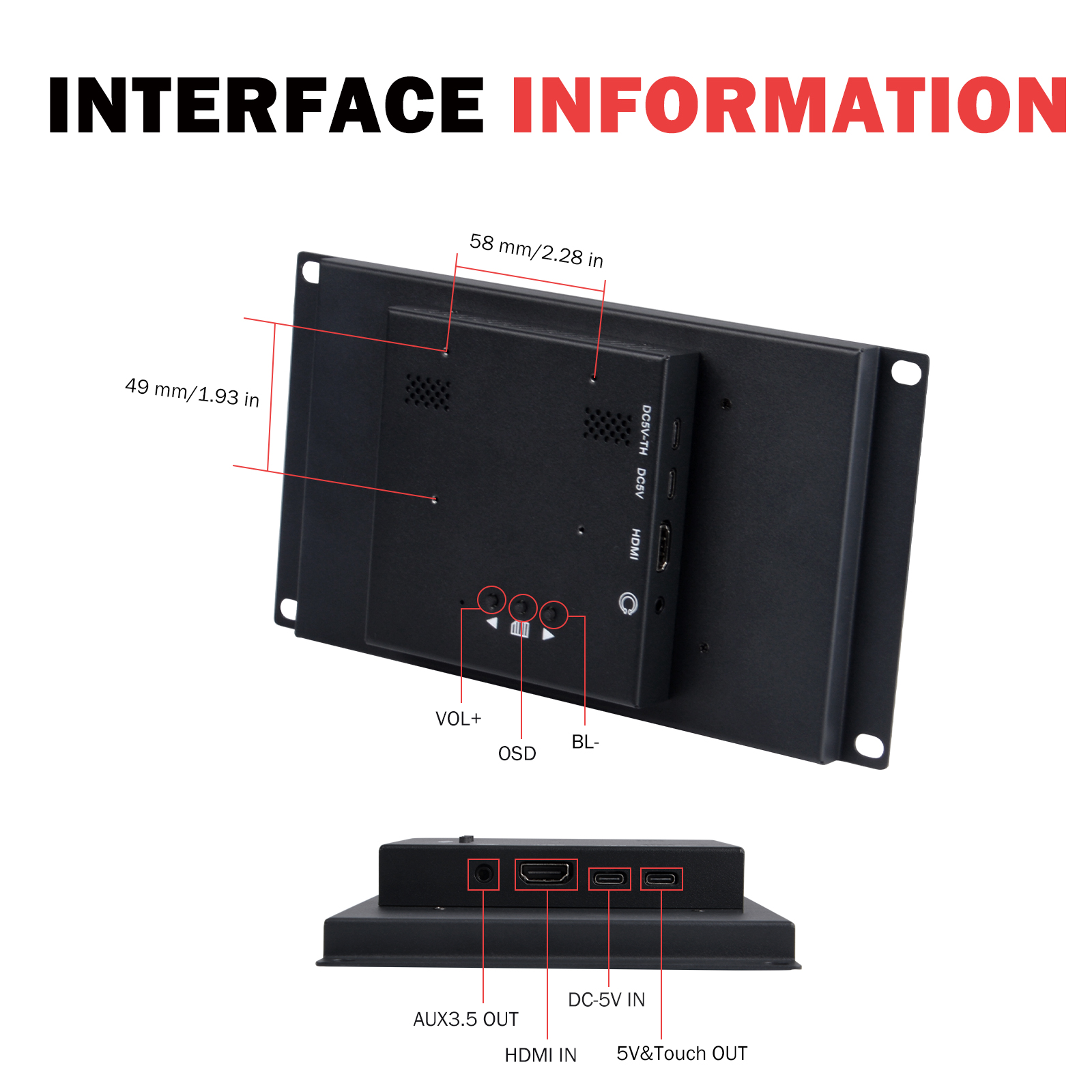

Interface Information

Rear Interface Layout

Interface / Button Function Description
5V & Touch OUT 5V power and touch signal output
DC-5V IN DC 5V power input
HDMI IN HDMI video signal input
AUX 3.5 OUT 3.5mm audio output
VOL+ Volume increase button
BL- Backlight adjustment button
OSD Menu button

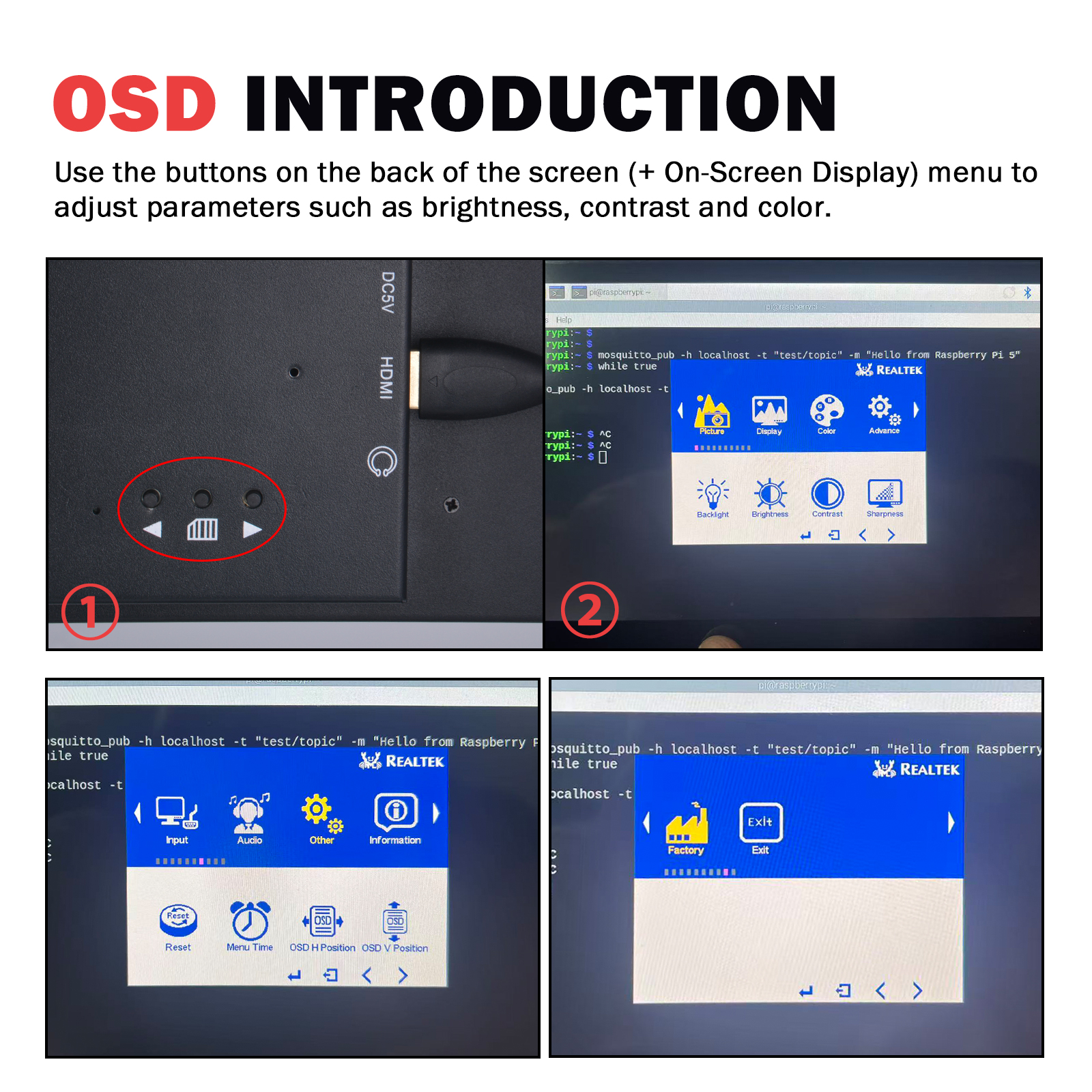

OSD Menu Functions

Use the rear buttons (OSD menu) to adjust: - Brightness - Contrast - Color

Mounting Hole Positions

  • Mounting hole spacing: 58 mm / 2.28 in (horizontal)
  • Mounting hole to edge distance: 49 mm / 1.93 in (vertical)

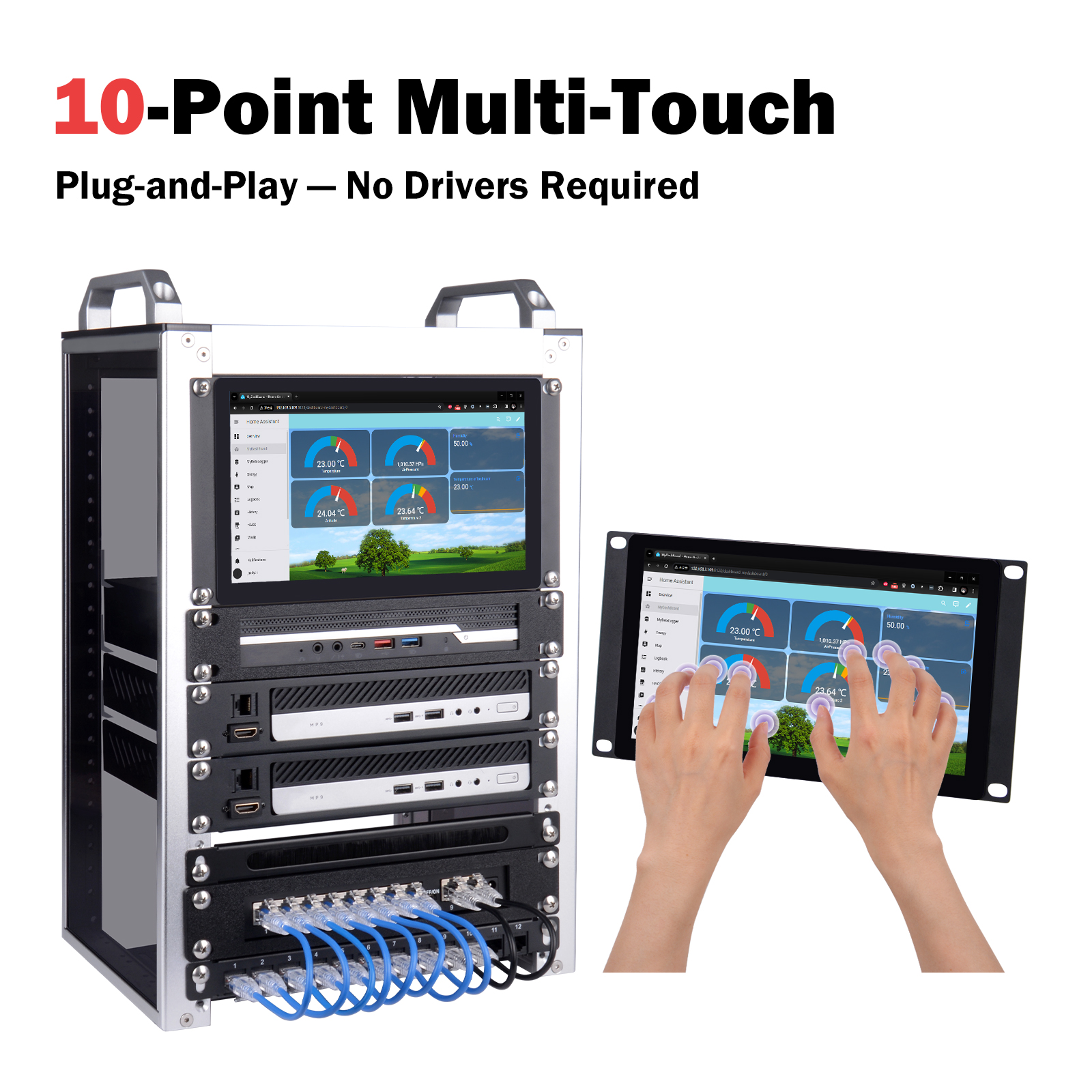

10-Point Touch Demonstration

The DP-0100 supports 10-point capacitive multi-touch, enabling smooth multi-finger gesture operations for both rack-mounted and standalone use scenarios.

10-Point Touch Demonstration

After-Sales Service

For technical support or any questions, please contact our customer service team:

Contact Method Information
Email sales@deskpi.com
Official Website www.deskpi.com
Wiki wiki.deskpi.com

Product Specifications Overview

Display Panel

Item Specification
Model Touch P9.0
Screen Size 9 inches diagonal
Resolution 1280 (H) × 720 (V) HD
Aspect Ratio 16:9
Brightness 500 cd/m²
Contrast Ratio 800:1
Display Colors 16.7 M
Response Time 10 ms (typical)
Viewing Angle 178° (H) / 178° (V)

Touch Panel

Item Specification
Technology Projected Capacitive, 10-point Multi-Touch
Surface Hardness ≥ 6H
Transmittance > 95%

Mechanical Structure

Item Specification
Housing Material Cold Rolled Steel
Active Display Area 198.91 (H) × 111.88 (V) mm
Dimensions 249.97 × 132 × 34.5 mm
Installation Methods Wall-mount / Desktop / Embedded

Electrical Parameters

Item Specification
Power Consumption Average < 10W
Power Input DC 5V / 2A
Interfaces Type-C1 (DC5V+Touch) / Type-C2 (DC5V) / HDMI / AUX 3.5mm

Environmental Parameters

Item Specification
Operating Temperature -10°C to +50°C
Storage Temperature -15°C to +60°C
Relative Humidity 5%–95% (non-condensing)

Operating System Compatibility

Operating System Display Touch Notes
Windows ✅ Supported ✅ Plug & Play No additional drivers required
Linux ✅ Supported ✅ Plug & Play No additional drivers required
macOS ✅ Supported ⚠️ Requires Additional Driver Touch does NOT work by default; display works normally

For macOS users: Please contact DeskPi technical support or visit wiki.deskpi.com to obtain the touch driver and installation instructions.

Package Contents

  • [x] 9-inch Touch Screen LCD Display × 1
  • [x] Desktop Stand × 1
  • [x] HDMI to HDMI Cable × 1
  • [x] USB Cable (for touch & power) × 1
  • [x] #10-32 5/16 Screws × 4
  • [x] User Manual × 1

Document Information

Item Content
Product Model DP-0100
Product Name 9-inch Touch Screen LCD for 10 inch Rack
Brand DeskPi
Official Website www.deskpi.com
Wiki Documentation wiki.deskpi.com
